Page SAMSUNG TECHWIN 319 DECAN L2 Motor IF Board (1/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010949 A CABLE ASS Y -AXIO_BD_2_P WR 1 2 AM03-00556 4A CABLE ASSY -Z12_D RV_COMMAND 1 …
Page
SAMSUNG TECHWIN
318
DECAN
L2
Motor IF Board (1/18)
Page
SAMSUNG TECHWIN
319
DECAN
L2
Motor IF Board (1/18)

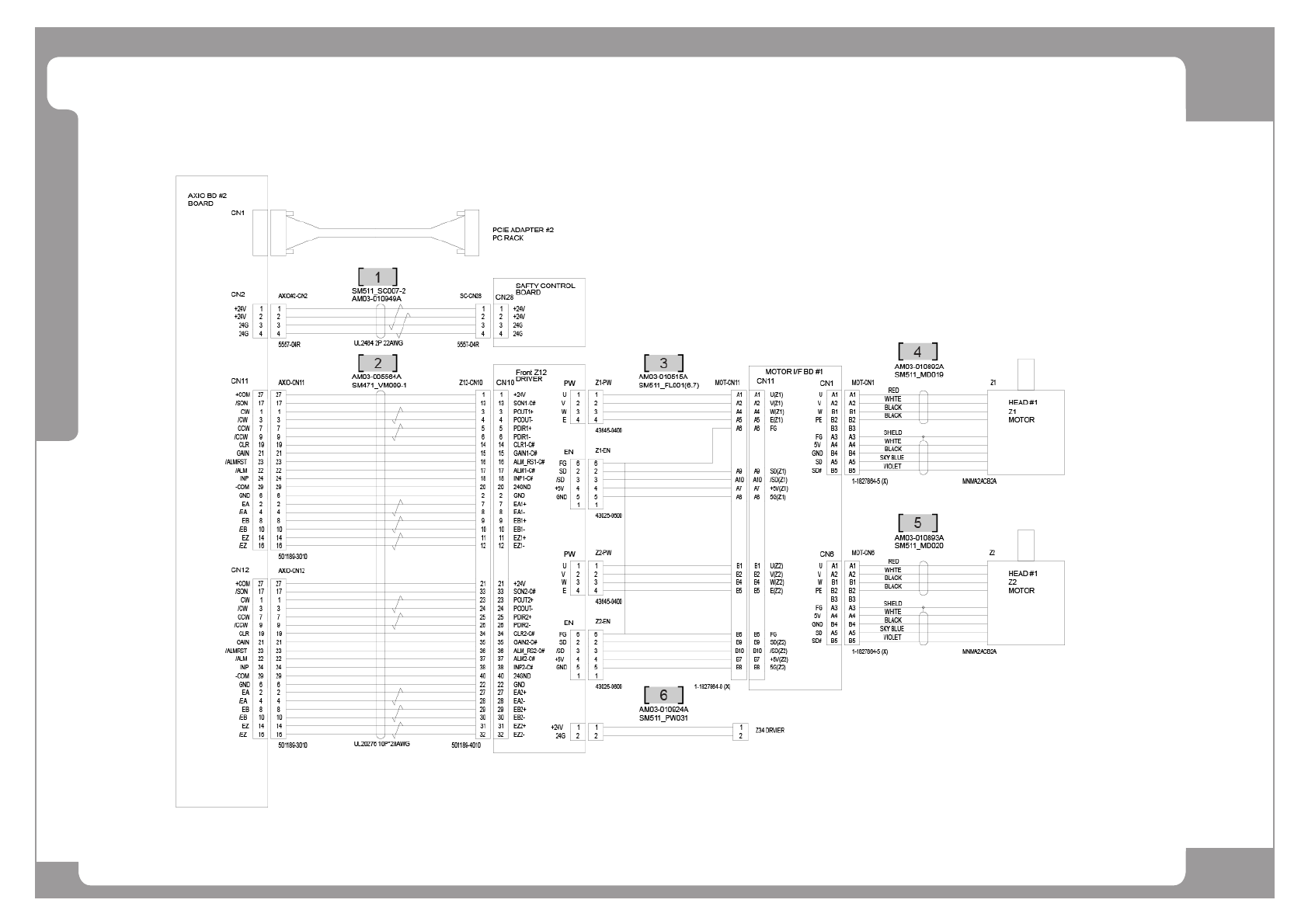

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1
2 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1
3 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
4 AM03-011868A CABLE ASSY-Z1_MOTOR 1 AM03-010892A
5 AM03-011868A CABLE ASSY-Z2_MOTOR 1 AM03-010893A
6 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 1
Page
SAMSUNG TECHWIN
320
DECAN
L2
Motor IF Board (2/18)
