Page SAMSUNG TECHWIN 134 DECAN L2 X Frame (2/2)
Page
SAMSUNG TECHWIN
133
DECAN
L2
Page
SAMSUNG TECHWIN
134
DECAN
L2
X Frame (2/2)
Page
SAMSUNG TECHWIN
135
DECAN
L2

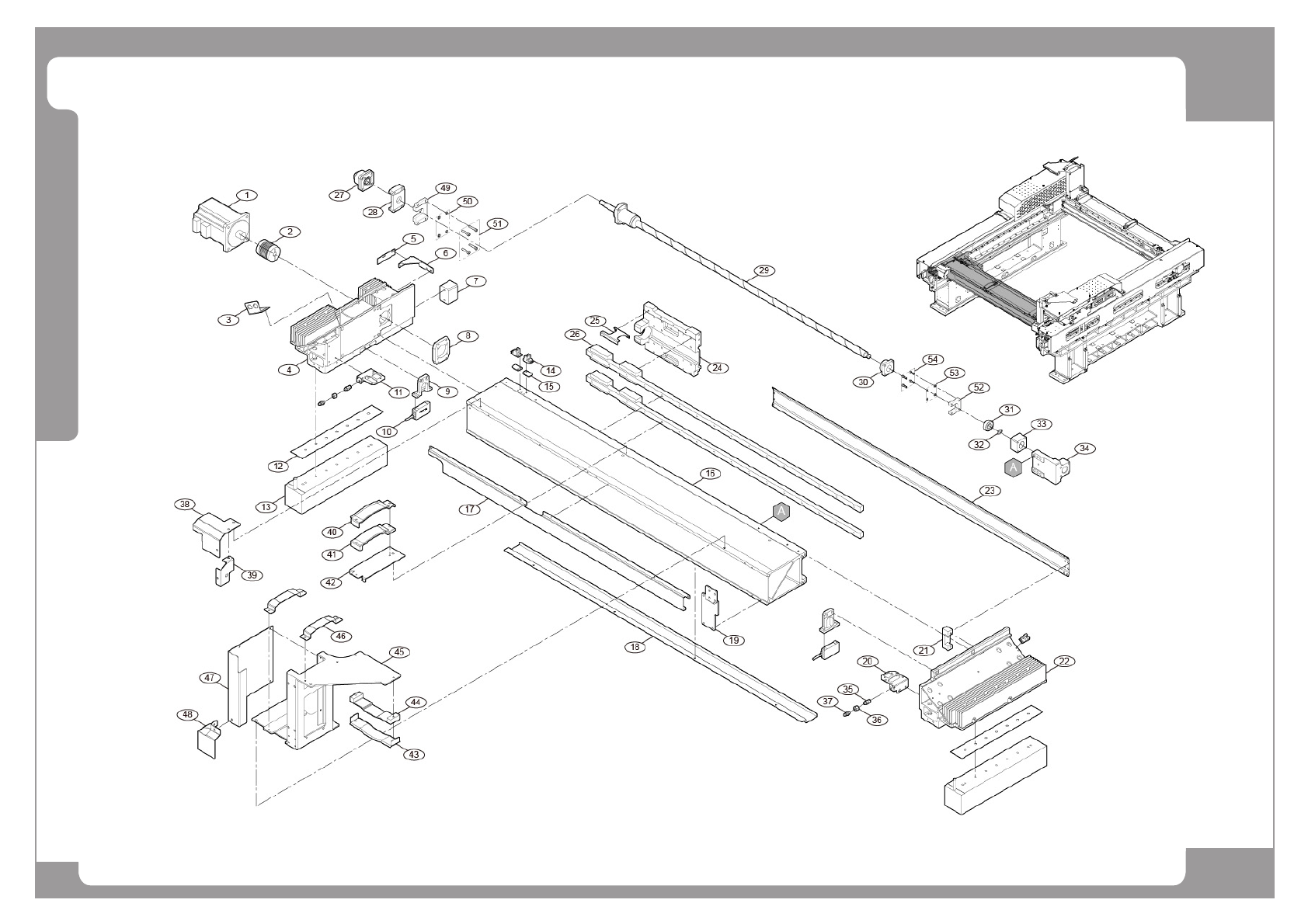

X Frame (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP08-000185 SERVO_MOTOR 1
2 MC22-000092 COUPLING 1
3 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B
4 FC30-001671C Y1_PROFILE 1 FC30-001671A/ FC30-001671B
5 FC29-002665B DOG2_SENSOR_Y 1 FC29-002665A
6 FC09-003449B DOG2_BKT 1
7 FC29-001212B CUSHION CRASH 1 FC29-001212A
8 FC09-003189A BRACKET_SPACER 1
9 FC09-003179A BKT_ENCODER_Y 2
10 FC28-000159 LINEAR_SCLAE(ENCODER HEAD) 2
11 FC30-001829B CONNECT_PLT_L-T 1 FC30-001829A
12 FC36-000080A SHEET-COIL_SPACER 2
13 EP08-000198 LINEAR-MOTOR 2
14 EP19-900114 PHOTO_SENSOR 3
15 J70541295A X_LIMIT_SENSOR_PLATE 2
16 FC39-001351A X_FRAME 1
17 FC15-002046A COVER_CABLE_X 1
18 FC36-000074A SHEET_X-LOWER 1
19 FC09-003388A CHAIN_Y_SUPPORT 1
20 FC30-001674B CONNECT_PLT_R 1 FC30-001674A
21 FC07-001225A BLOCK_B-SCREW_CV 1
22 FC30-001672C Y2_PROFILE 1 FC30-001672A/ FC30-001672B
23 FC36-000092A SHEET_B-SCREW_CV 1
24 FC05-000514A BASE HEAD CARRIER 1 FC05-000336A
25 FC29-002632B DOG_SENSOR_X 1 FC29-002632A
26 MC13-900032 LM GUIDE 2
27 MC04-900012 SUPPORT_UNIT 1
28 FC29-004428A CUSHION_X_FRONT 1 J72541003A
29 MC13-000125 BALL SCREW 1
30 FC29-004430A CUSHION X REAR 1 J72541005B
31 MC03-900008 BALL BEARING 1
