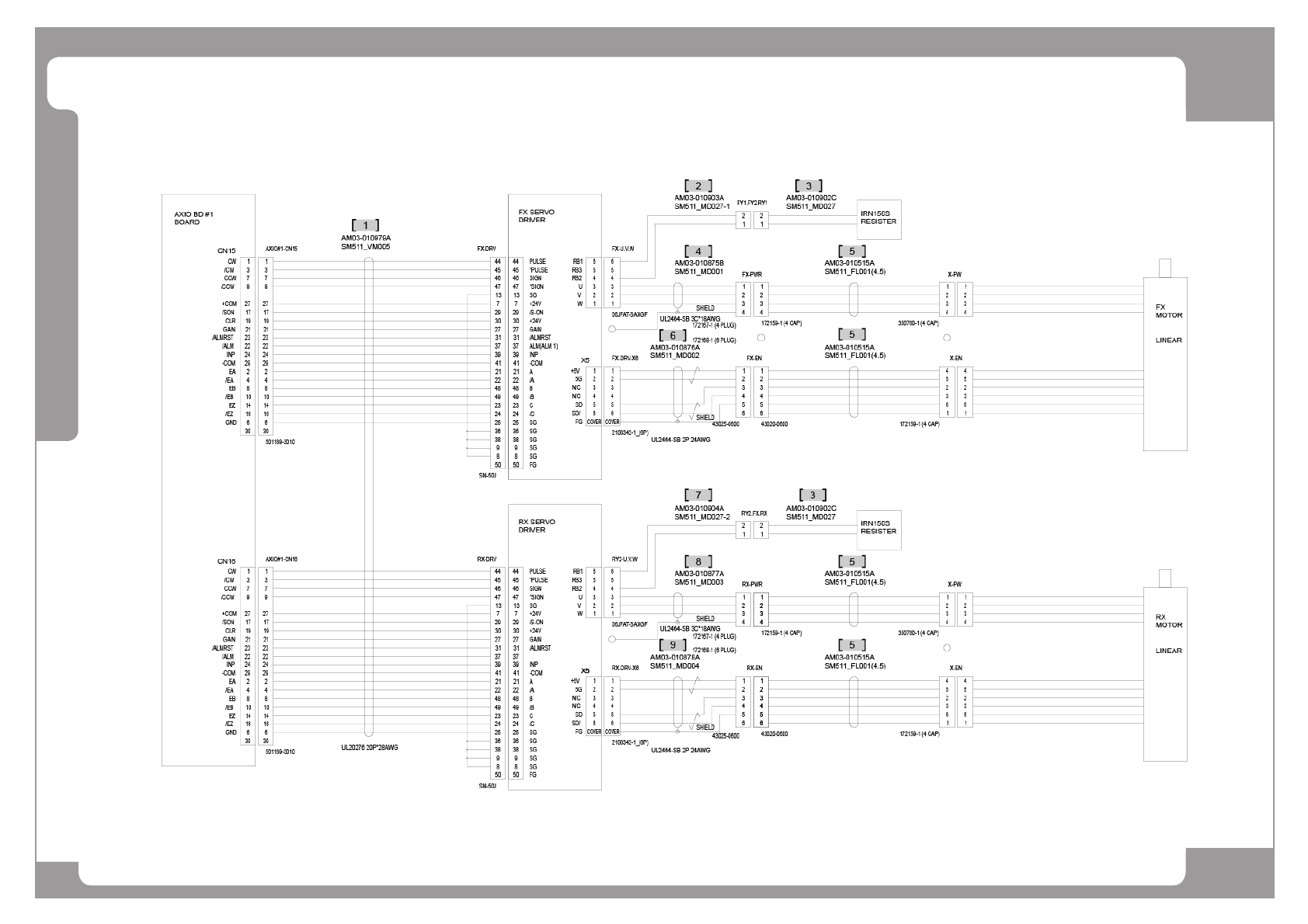

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010977A CABLE ASSY-FY1_FY2_DRV_COMMAND 1
2 AM03-010903A CABLE ASSY-REGEN_RESISTOR_DRV_1 2
3 AM03-010902C CABLE ASSY-REGEN_RESISTOR 2 AM03-010902A/AM03-010902B
4 AM03-010879B CABLE ASSY-FY1_MOTOR_PWR 1
5 AM03-013438A CABLE ASSY-SM511 FLAT 1 2 AM03-010515C
6 AM03-010880A CABLE ASSY-FY1_LINEAR_ENC 1
7 AM03-010881B CABLE ASSY-FY2_MOTOR_PWR 1
8 AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C
9 AM03-010882A CABLE ASSY-FY2_LINEAR_ENC 1
