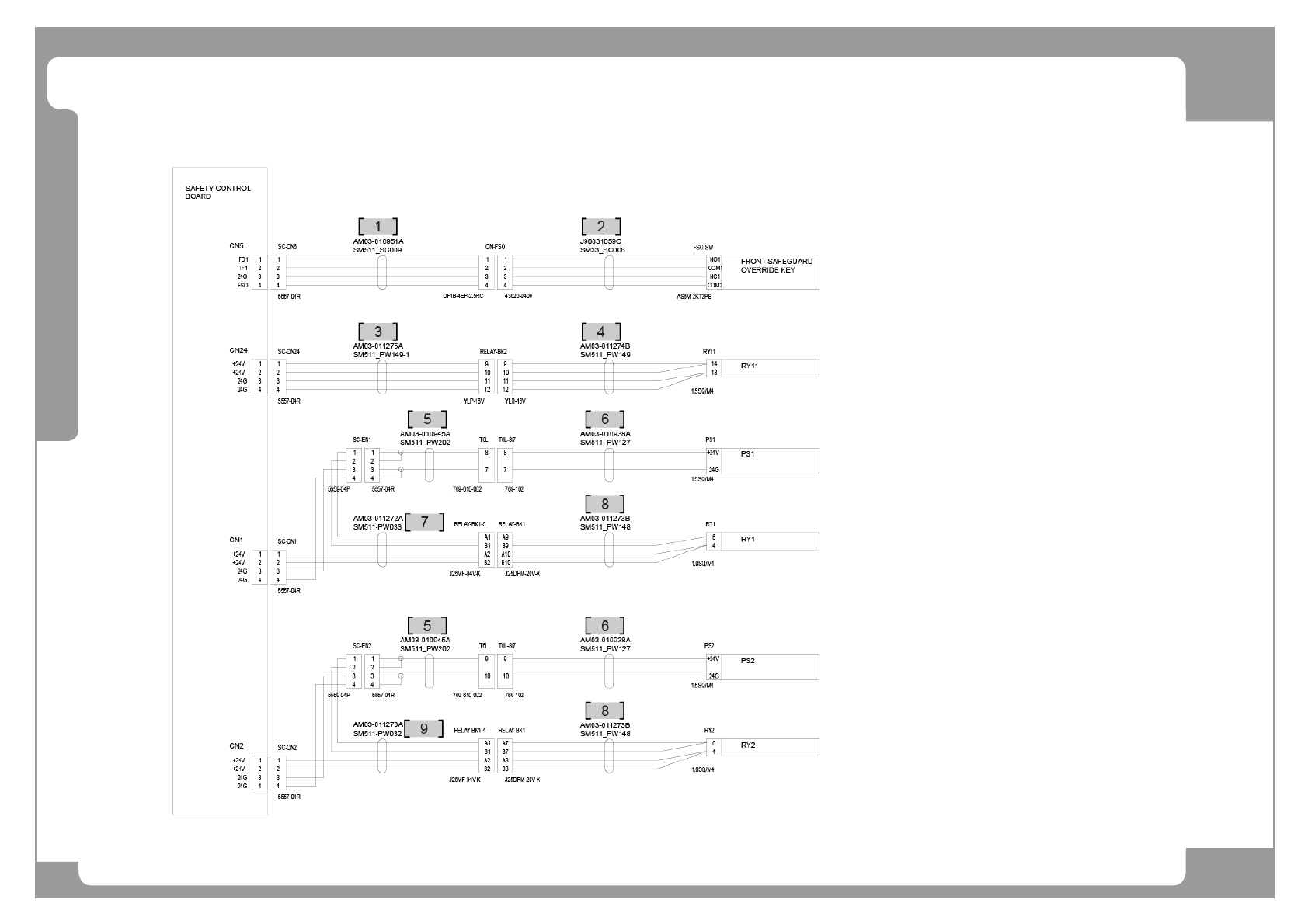

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010951A CABLE ASSY-FRONT_OVERRIDE_KEY_EXT 1
2 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1
3 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 1
4 AM03-011274B CABLE ASSY-RELAY_BRK_MODULE_AC_DC 1
5 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 2
6 AM03-010938A CABLE ASSY-PS1_PS2_SACO_T6L 2
7 AM03-011272A CABLE ASSY-FEEDER_PW_RELAY 2
8 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 2
9 AM03-011270A CABLE ASSY-GENERAL_PW_RELAY 1
