SAMSUNG TECHWIN
340
DECAN
L2
Motor IF Board (12/18)
Page
SAMSUNG TECHWIN
341
DECAN
L2
Motor IF Board (12/18)

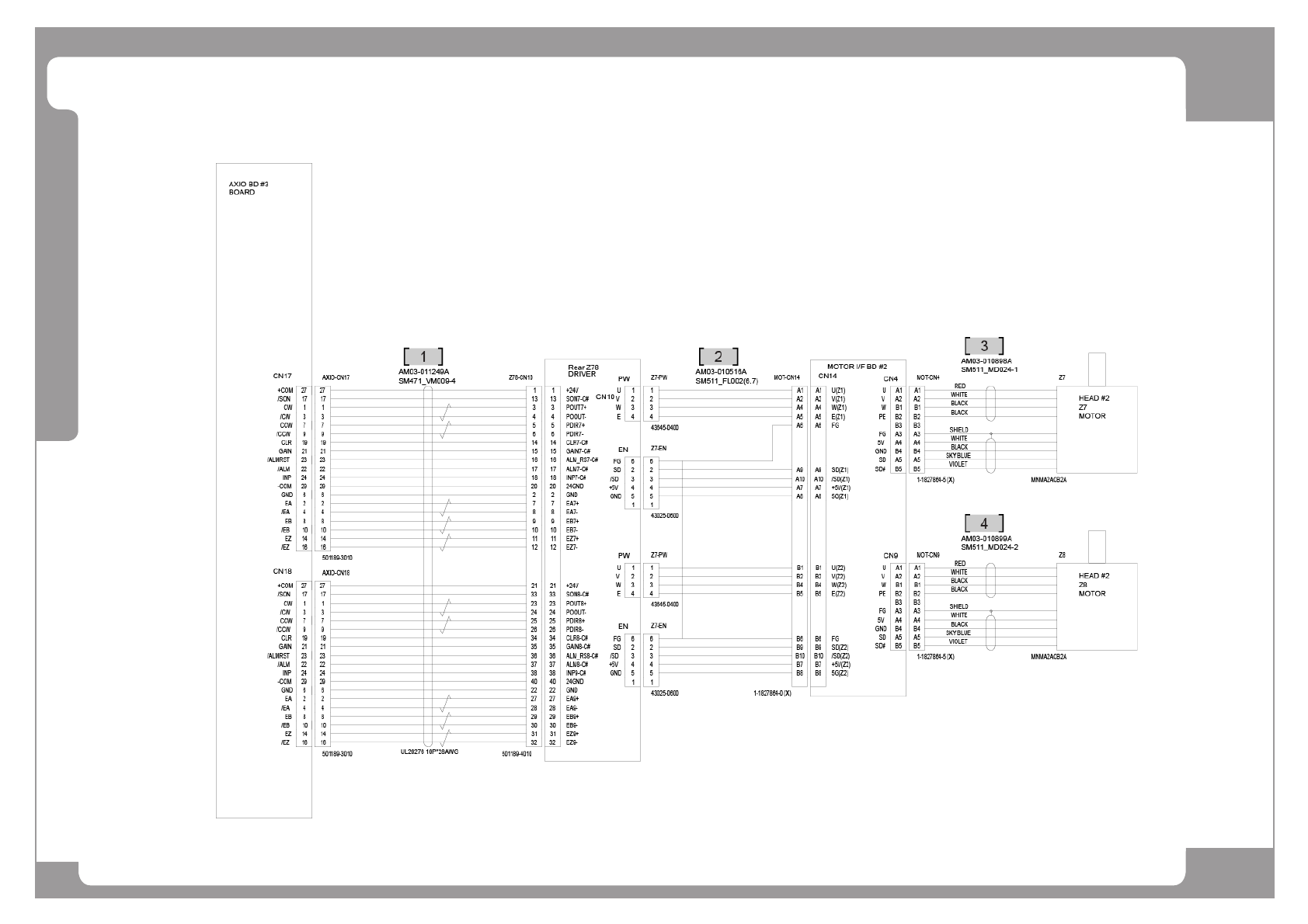

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011248A CABLE ASSY-Z56_DRV_COMMAND 1
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C
3 AM03-011868A CABLE ASSY-Z5_MOTOR 1 AM03-010896A
4 AM03-011868A CABLE ASSY-Z6_MOTOR 1 AM03-010897A
Page
SAMSUNG TECHWIN
342
DECAN
L2
Motor IF Board (13/18)
