Page SAMSUNG TECHWIN 271 DECAN L2 Axis IO Board (1/16) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005528 A CABLE ASS Y -AXIO_BD_1_P WR 1 2 AM03-010798A CABLE A SSY -AXIS_SNS_BD_A XIO#1 …
Page
SAMSUNG TECHWIN
270
DECAN
L2

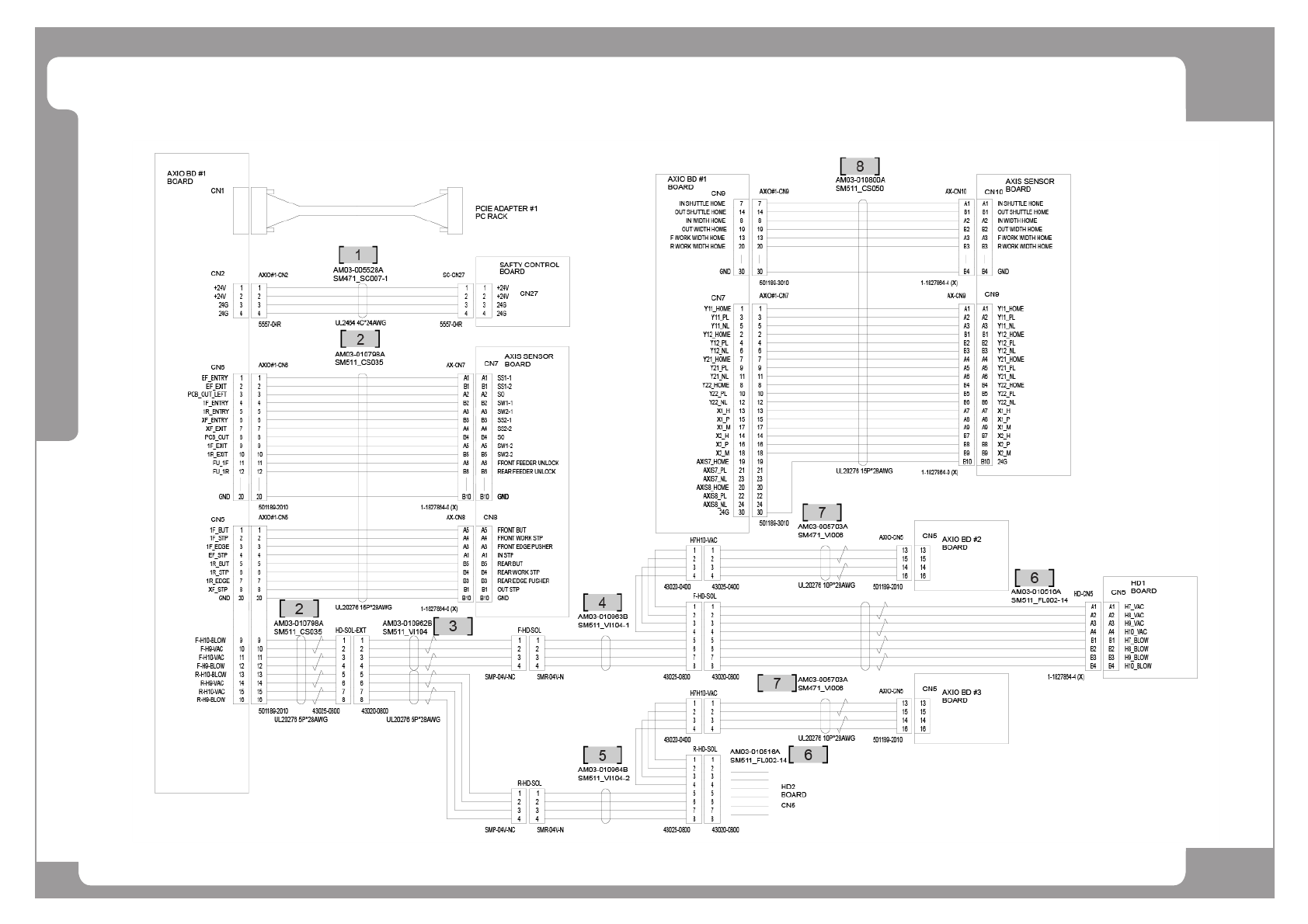

Axis IO Board (1/16)
Page
SAMSUNG TECHWIN
271
DECAN
L2
Axis IO Board (1/16)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1
2 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 2
3 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1
4 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1
5 AM03-010964C CABLE ASSY-HD2_VAC-BLOW_CTRL 1 AM03-010964B
6 AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C
7 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 2
8 AM03-010800A CABLE ASSY-AXIS_SNS_BD_CN9_10 1
Page
SAMSUNG TECHWIN
272
DECAN
L2
Axis IO Board (2/16)
