Page SAMSUNG TECHWIN 184 DECAN L2 Camera IO Board (1/6)
Page
SAMSUNG TECHWIN
183
DECAN
L2
Electric Power (6/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010925A CABLE ASSY-CP3_MC2_INPUT_220V 1
2 AM03-010926A CABLE ASSY-SK_220V_PWR 1
3 AM03-010927A CABLE ASSY-VACUUM_PUMP_PWR_EXT 1
4 AM03-005511A CABLE ASSY-VACUUM_PUMP_220V 1
5 AM03-010943A CABLE ASSY-PUMP_PWR_ALARM_EXT 1
6 AM03-010940A CABLE ASSY-VACUUM_PWR 1
7 AM03-010942A CABLE ASSY-PCB_SENSOR_PUMP_ALARM 1
8 AM03-010941A CABLE ASSY-VACUUM_EJECTOR_PWR 1
Page
SAMSUNG TECHWIN
184
DECAN
L2
Camera IO Board (1/6)
Page
SAMSUNG TECHWIN
185
DECAN
L2

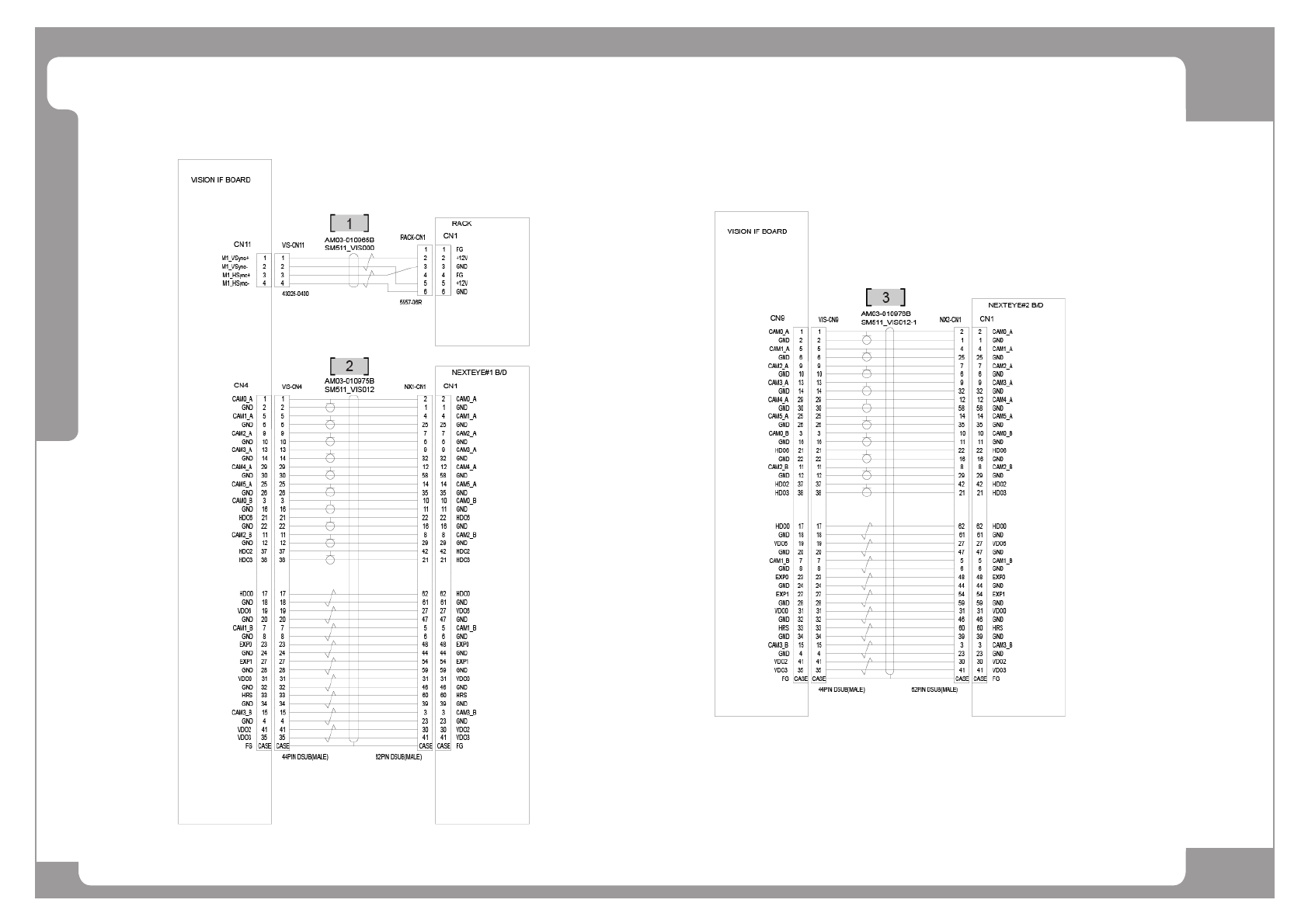

Camera IO Board (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010965B CABLE ASSY-VISION_IF_BD_POWER 1
2 AM03-010975B CABLE ASSY-NEXTEYE_B/D_I/F_MAGA 1
3 AM03-010976B CABLE ASSY-NEXTEYE_B/D2_ I/F_MAGA 1
