Page SAMSUNG TECHWIN 245 DECAN L2 Conveyor Sub IF Board (2/3 ) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010952B CABLE A SSY -CONV_SUB_IF 1 2 AM03-010953B CABLE A SSY -CONV_SUB_IF_EX T…
Page
SAMSUNG TECHWIN
244
DECAN
L2

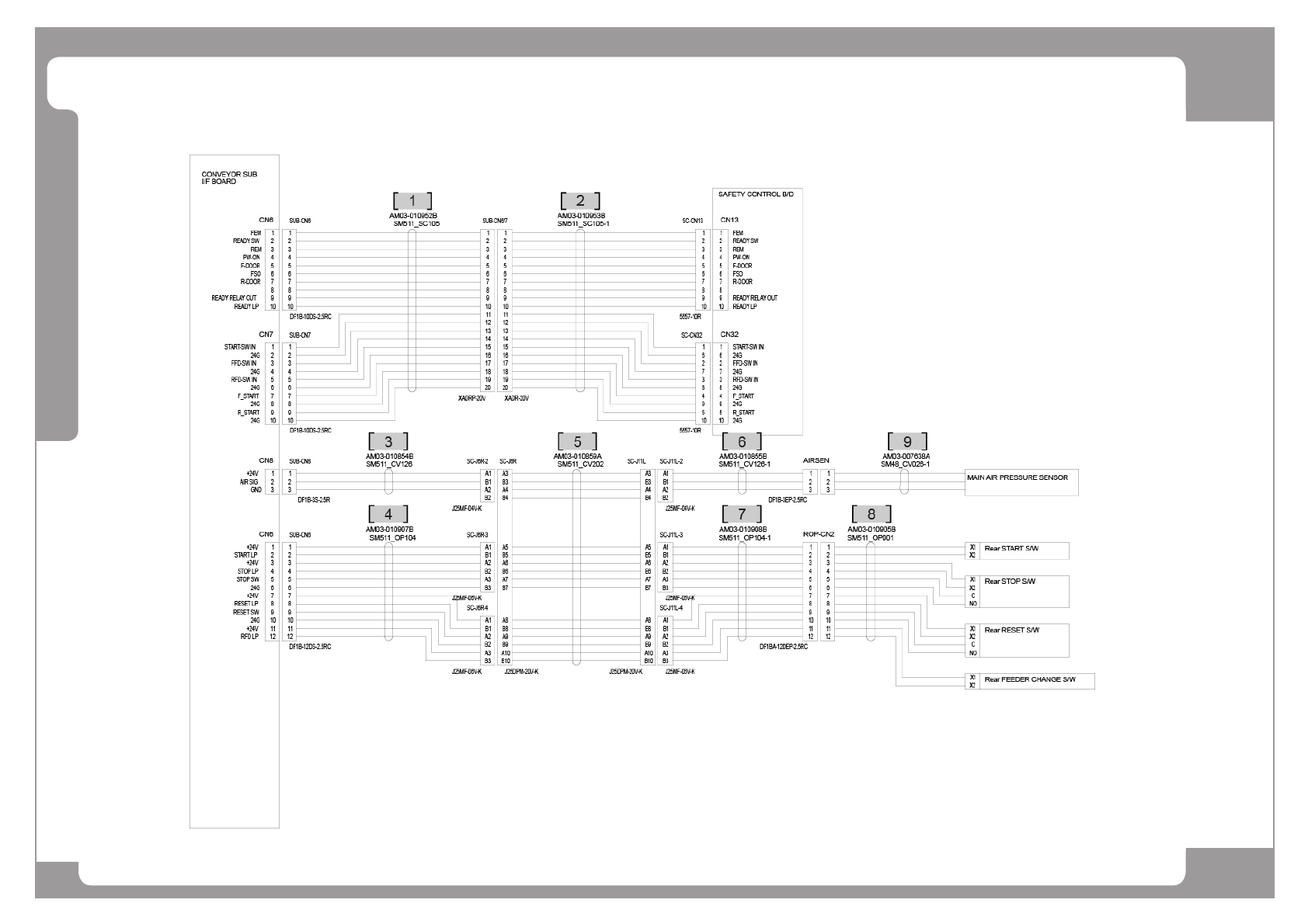

Conveyor Sub IF Board (2/3)
Page
SAMSUNG TECHWIN
245
DECAN
L2
Conveyor Sub IF Board (2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010952B CABLE ASSY-CONV_SUB_IF 1
2 AM03-010953B CABLE ASSY-CONV_SUB_IF_EXT 1
3 AM03-010854B CABLE ASSY-AIR_INDICATOR_J6R 1
4 AM03-010907B CABLE ASSY-REAR_OP_SW_J6R 1
5 AM03-010859A CABLE ASSY-R_AREA_AIR_SNS_SUB_J6R-J11L 1
6 AM03-010855B CABLE ASSY-AIR_INDICATOR_11R 1
7 AM03-010908B CABLE ASSY-REAR_OP_SW_J11L 1
8 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1
9 AM03-007638A CABLE ASSY-AIR INDICATOR 1
Page
SAMSUNG TECHWIN
246
DECAN
L2
Conveyor Sub IF Board (3/3)
