10 i3070 Software Installation 7 Check license files for T est Development W orkstation (node-locked) (Licenses will be installed on the workstation together with the i3070 software.) a In the License Folder dialog box, …
i3070 Software Installation 9
5 Check license files for Testhead
Controller (node-locked):
(Licenses will be installed on the
controller together with the
i3070 software.
If you are installing on a test
development workstation, go to
step 7.)
a In the License Folder dialog box, click Change.
b Select the temporary folder where you saved your license files and click OK.
c The installer lists the licenses found in the selected folder. Click Next.
d Click Yes to confirm you are installing on a testhead controller.
6 Create user accounts (testhead
controller)
• User accounts will be created for first-time installation on testhead controllers.
• Where i3070 user accounts already exist, no new users will be created.
Click Next to continue (skip to step 8).
Installing the software (continued)
Task Steps
10 i3070 Software Installation
7 Check license files for
Test Development Workstation
(node-locked)
(Licenses will be installed on the
workstation together with the
i3070 software.)
a In the License Folder dialog box, click Change.
b Select the temporary folder where you saved your license files and click OK.
c The installer lists the licenses found in the selected folder. Click Next.
d Click Yes to confirm you are installing on a test development workstation.
8 Confirm installation: The installer displays the third party applications to be installed.
a Click Install to begin installation.
b If prompted, click Install or Next to continue installation.
9 Finish installation: a When installation is completed, click Finish.
b Then click OK to reboot the computer.
10 If errors or other messages
appear:
• If Quick Log Converter prompts for a missing template, ignore it.
• If prompted to install a new version of Keysight IO Libraries, do not do so. Select
Skip this version and Quit.
Installing the software (continued)
Task Steps
i3070 Software Installation 11
Completing the software installation
Task Steps
The installation wizard procedure is now completed. Continue with the following tasks.
1 If installing on a testhead controller,
set the recommended Speed &
Duplex on Testhead LAN to prevent
lost heartbeat failure:
a Right-click on the Testhead LAN icon in the Taskbar and select Status.
b In the Testhead LAN Status dialog box, click Properties.
c In the Testhead LAN Properties dialog box, click Configure.

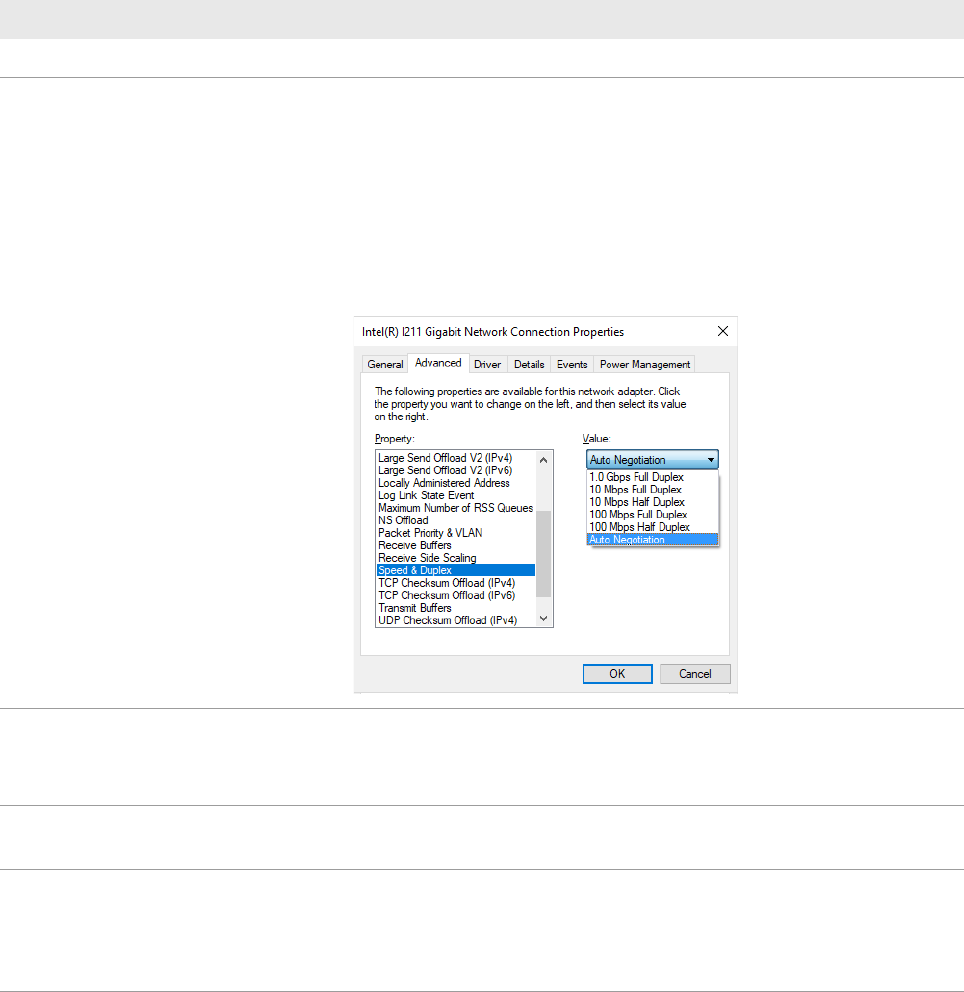

d In the network adapter’s Properties dialog box, click the Advanced tab.
e Select Speed & Duplex and change its value according to the Module
Control Card in use.
ControlXTPB – Auto Negotiation
ControlXTPA – 100 Mb, half duplex
2 Set power options to never turn off
the hard disks and monitor:
a Open Control Panel and click Power Options.
b Click Change plan settings for the power plan in use.
c Set all options to Never and click Save changes.
3 Check for software patches: Go to www.keysight.com/find/i3070patches to check for any software patches
and install them.
4 Copy needed files: a Open a KornShell window.
b Execute
setupEnv.ksh. (This will copy four files to the $HOME folder.
This step creates the user account and home env.)
c Close the KornShell window.
