i3070 Software Installation 13

Installing Software Licenses

Installing Node-Locked Licences

Setting Up Client Machines to Use Floating Licenses

Viewing Licenses

Installing Node-Locked Licences

1 Launch PathWave License Manager (Start > Keysight PathWave License

Manager > Keysight PathWave License Manager).

2 Click + Add a License File.

3 Click Browse to locate and select the license(s) that you redeemed.

4 Click Add Now.

5 Click Done to close the Add a License File window.

You should see the following status:

6 Open Task Manager (right-click on the taskbar and click Task Manager).

7 On the Services tab, right-click i3070 License Communication Service and

select Restart.

You can now run the i3070 In-Circuit Test Software.

View licenses and their status from the License Status module (see Viewing

Licenses).

14 i3070 Software Installation

Setting Up Client Machines to Use Floating Licenses

Follow these steps to enable client machines to make use of floating licenses, which

are shared from one or more remote license servers. You will need the hostname(s)

of the license server(s).

1 Launch PathWave License Manager (Start > Keysight PathWave License

Manager > Keysight PathWave License Manager).

2 Click Specify a Remote License Server.

3 Enter the hostname of the license server, for example,

27009@server1

If your system relies on a triple redundant server setup, enter the hostnames of

the three license servers, separated by commas. The three servers should be

listed in the same order as specified in the license files. For example:

27009@server1,27009@server2,27009@server

4 Click Verify Connection and Save.

5 Click Done when the process is completed.

6 In a Command Prompt window, go to

C:\I3070_ICT\util and run

LicenseSearchPathReg.bat as an administrator.

Enter

All if prompted to overwrite.

7 Open Task Manager (right-click on the taskbar and click Task Manager).

8 On the Services tab, right-click i3070 License Communication Service and

select Restart.

You can now run the i3070 In-Circuit Test Software.

View licenses and their status from the License Status module (see Viewing

Licenses).

i3070 Software Installation 15

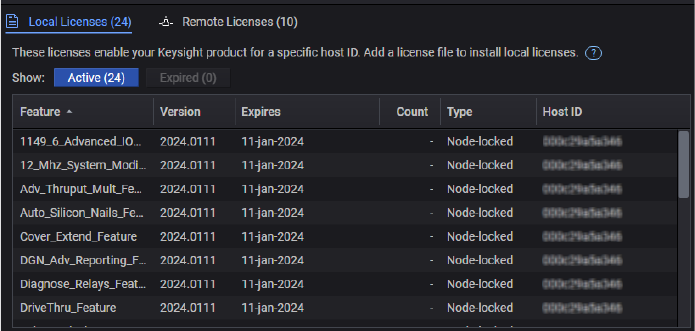

Viewing Licenses

Once licenses are successfully installed, you can view them from the License Status

module. Floating licenses can be found on the Remote Licenses tab.
