11 Measuring components Vision Teach Station User Manual 11.1 Preparing components for the measurement 12/2012 Edition 176 Push the positioning unit (item 2 in Fig. 11.1 - 1 , page 175 ) until the end stop is under the…
Vision Teach Station User Manual 11 Measuring components
12/2012 Edition 11.1 Preparing components for the measurement
175
11

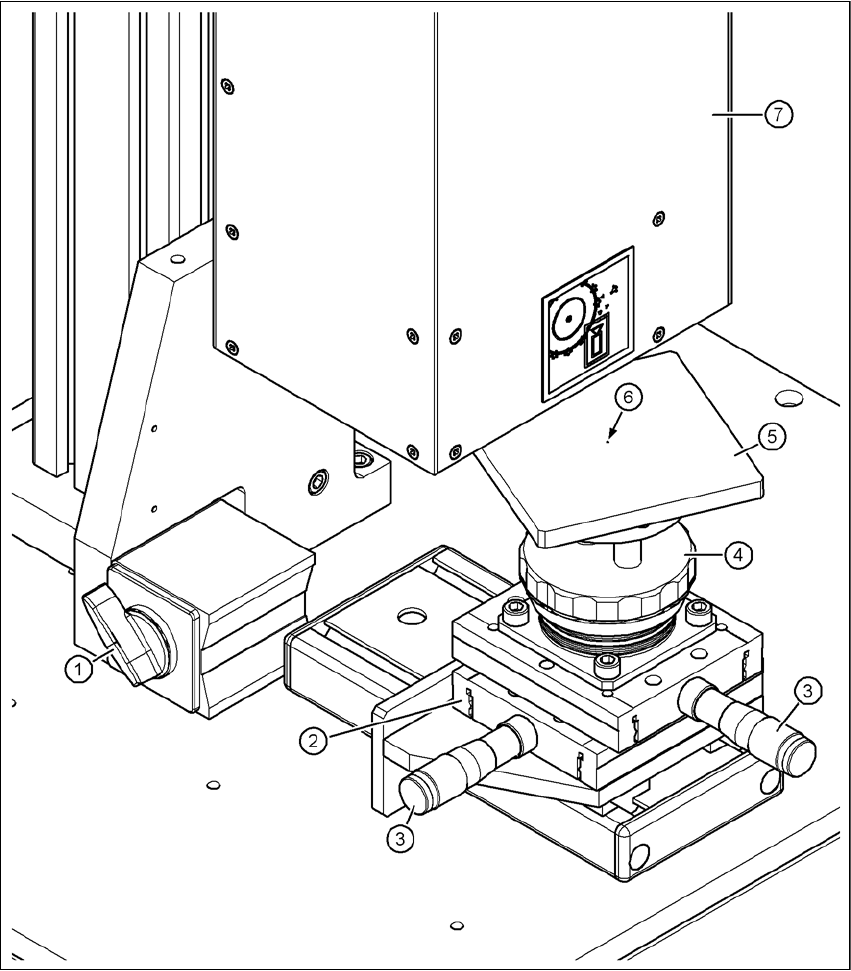

Fig. 11.1 - 1 Base module - Placing the component on the component support
(1) Magnetic switch
(2) Positioning unit
(3) Micrometer screw for positioning the component support
(4) Adjusting ring for adjusting the height of the component support
(5) Component support, rotating, for optimum angular alignment during the measurement
(6) Centering fiducial on the component support
(7) Component camera
11 Measuring components Vision Teach Station User Manual
11.1 Preparing components for the measurement 12/2012 Edition
176
Push the positioning unit (item 2 in Fig. 11.1 - 1, page 175) until the end stop is under the
camera.
Lock the positioning unit (item 2 in Fig. 11.1 - 1, page 175) using the magnetic switch (item 1
in Fig. 11.1 - 1, page 175)
Check the camera image on the monitor and position the middle of the component at the
camera center point using the micrometer screw (item 3 in Fig. 11.1 - 1, page 175).
If necessary, turn the component so that the outer edges run parallel to the edge of the image.
11
Fig. 11.1 - 2 Setting the focus point with the adjustment guide
Vision Teach Station User Manual 11 Measuring components
12/2012 Edition 11.2 Measuring the component
177
11.2 Measuring the component
11.2.1 General order for programming the PF
The handling data must be programmed (nozzle assignment, etc) before the teaching takes place
at the station. It must be possible to pick up and center the component to be taught.
When teaching on the SIPLACE vision teach station, the handling data cannot be programmed
until the optical features have been programmed.
Fig. 11.2 - 3 Flow chart showing the PF programming sequence
