Installation Trace Host and Trace Service
Trace Host Upgrade of Trace Host
40 Installation Manual SIPLACE Traceability 3.2
5.4.4.1 Upgrade Wizard
The Trace database Upgrade Wizard is a tool with which you can upgrade older versions of the Trace
database to the current version of Trace Host.
Starting the Upgrade Wizard
Step 1 of 4
NOTE:
The following requirements must be met before the Trace databases can be upgraded:
- Trace Host must be active.
- You should already know the database access parameters.
X Start the Upgrade Wizard via the Windows
menu Programs → SIPLACE Trace Host →
Upgrade Wizard.
The Welcome dialog will open.
X In the Language field set the required
language for the further steps in the Upgrade
Wizard.
The following options are available:
English
German
The Trace database upgrade consists of a simple
four-step procedure
NOTE:
Please note that you must have administrator privileges for the database, in order to perform the
required tests and configuration.
X In step 1 you need to specify the following
database access parameters for the Trace
database which is to be upgraded:
MS SQL Server
The computer on which the Trace database is.
Database name
Name of the database to be upgraded.
User name
Your login for the Trace database.
Password
The password for the Trace database. This
password is the same as that for the SQL
server database you are referring to here.
X Click on Next.
If the specified database is already upgraded, you
will see a notifications window. Click on OK to
close the Upgrade Wizard.
Installation Trace Host and Trace Service
Upgrade of Trace Host Trace Host
Installation Manual SIPLACE Traceability 3.2
41
Step 2 of 4
Step 3 of 4
Step 4 of 4
X In the Trace Server password field enter the
relevant password.
X Specify a relative path name at which the
database backups can be stored on the SQL
server. Click on the Browse button and select
a database backup folder.
X Disable database backup
Activate this option if no backup of the Trace
database is required.
X Click on Next.
X The upgrade process will begin. A data
backup will be generated if the option "Disable
database backup" was not enabled in Step 3.
After you have completed the upgrade
process, you will see a success message in
the notifications window under the progress
bar.
X Click on Finish to close the wizard.
Installation Trace Host and Trace Service
Trace Host SIPLACE Trace Host Uninstall
42 Installation Manual SIPLACE Traceability 3.2

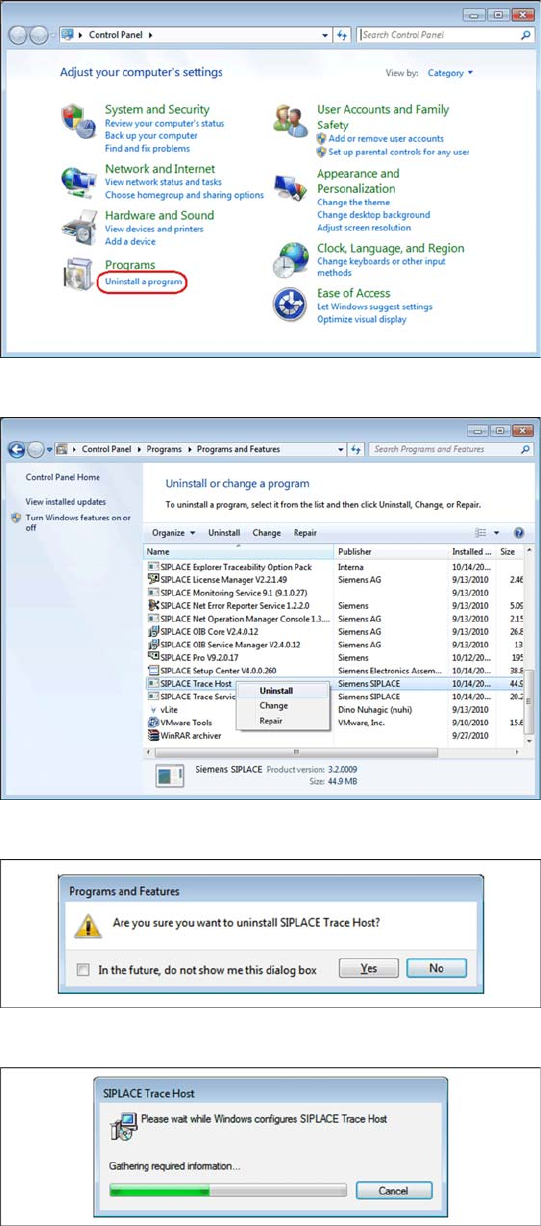

5.4.5 SIPLACE Trace Host Uninstall
X Open the Control Panel with Start - Control
Panel.
X Click on the category Add/Remove
Programs.
X The Add/Remove Programs dialog box will
appear, showing all the programs installed on
your computer.
X Select SIPLACE Trace Host and click on the
Change/Remove button.
X The security query will appear.
X Confirm with Yes.
X The Install Shield Wizard will start and the
uninstall of SIPLACE Trace Host will be pre-
pared. SIPLACE Trace Host will be
uninstalled.
X SIPLACE Trace Host is no longer available.
