SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
20/23

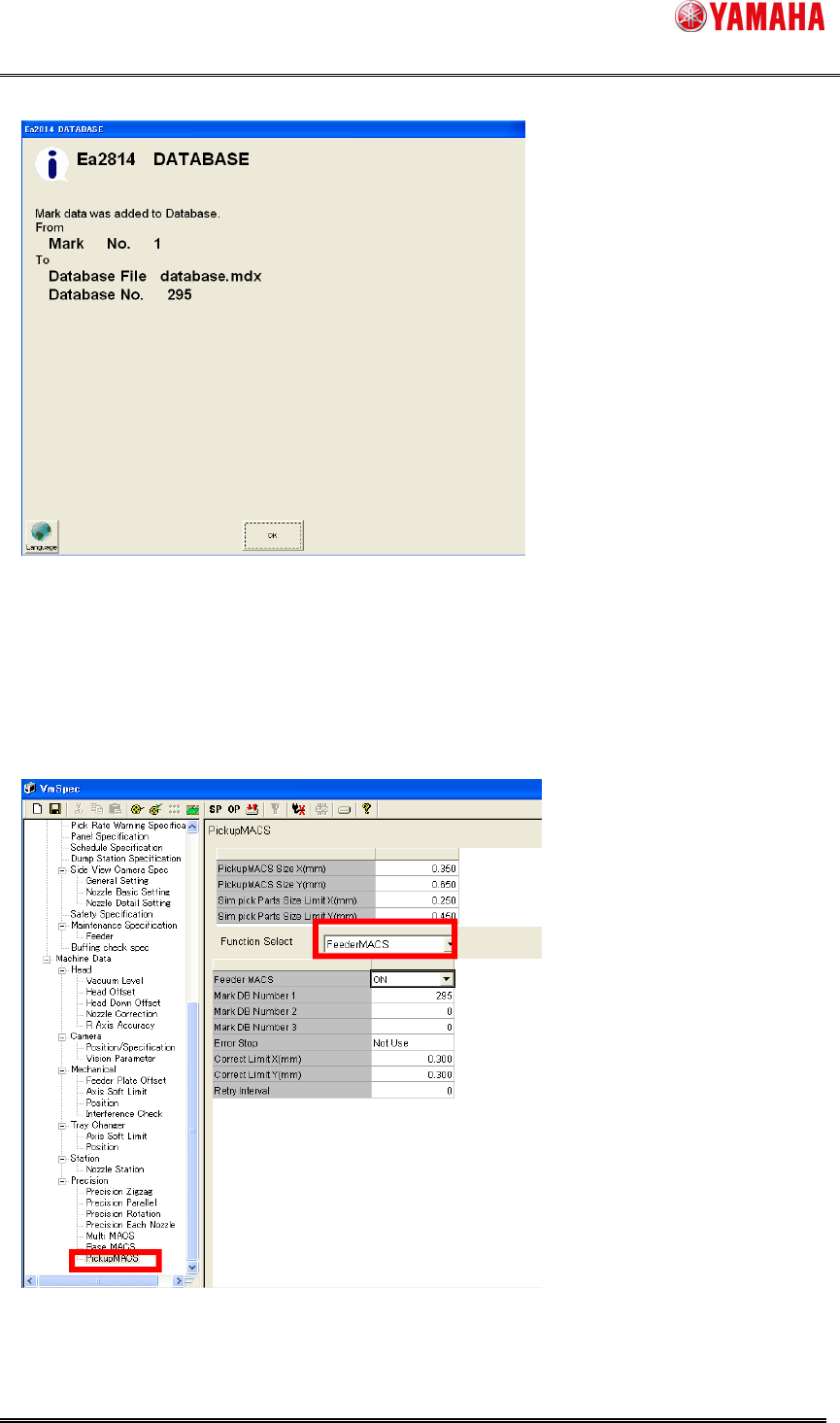

(7) Dialog showing the data registration completed. Press the [OK] button.
(8) Check that the mark data exists on [Mark database overview]. If yes, the registration to
the mark database is completed.
(9) Next, reflect the registered mark database to the setting of Feeder MACS. Press the
[Machine] button and open the machine setup dialog.
(10) Select [Machine] - [Setting] - [Machine Data] - [Precision] - [Pickup MACS]. Select
“Feeder MACS” from the combo box.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
21/23

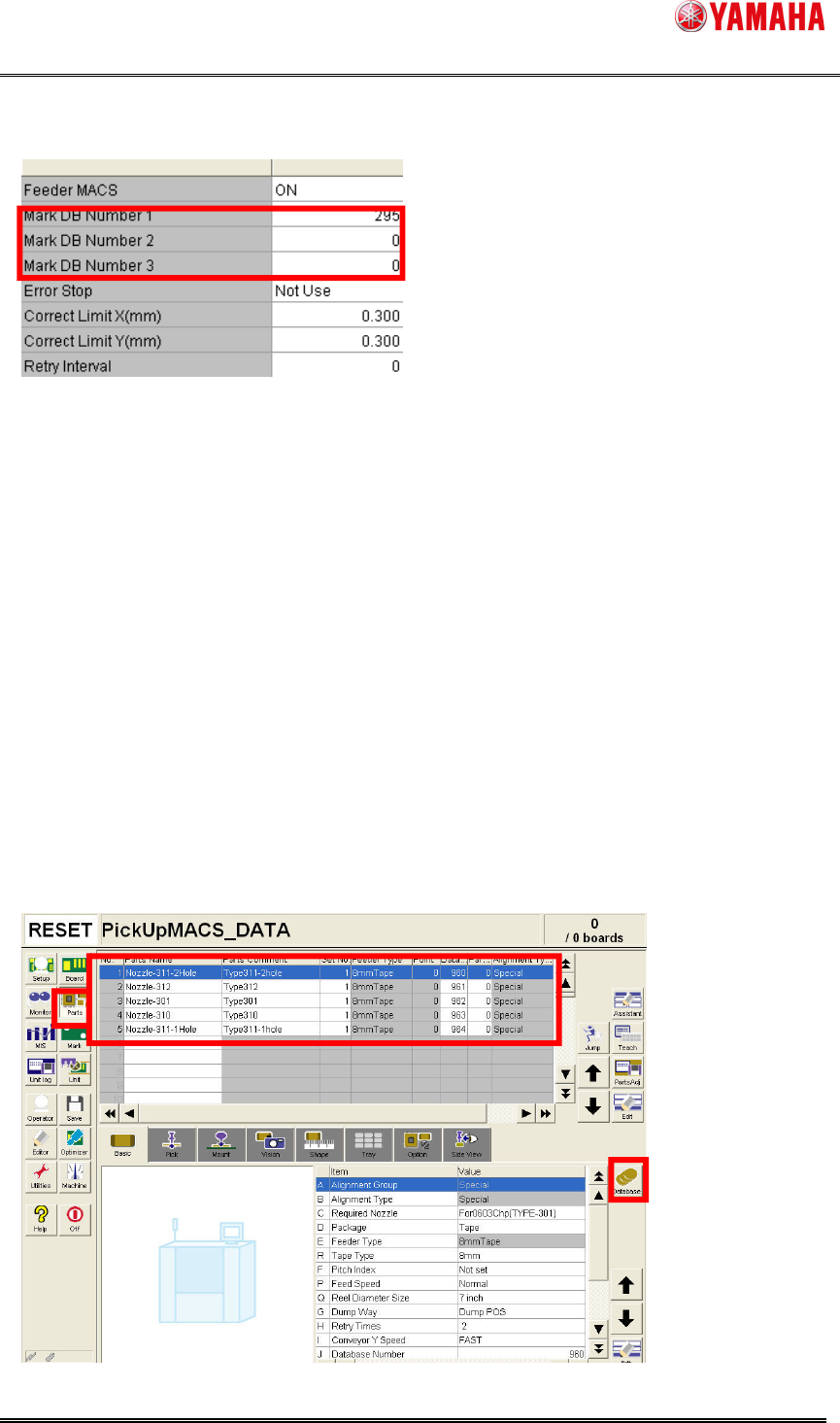

(11) Input the number you registered in database into [Mark DB Number 1-3]. Default [1] to
“295” , [2] and [3] to “0”.
(12) Save and read a board data again.
6.2. Setting method of Nozzle MACS mark data
As described at [4.2.3. Nozzle MACS data], to execute Nozzle MACS, you need to register the
parts data into the database.
It is possible to create mark data, but we recommend use the one enclosed in the installation
CD. Setting method is as follows.
(1) Copy [PickUpMACS_DATA.ygx] from the installation CD to the [No1] file of the target
machine.
(2) Read board data [PickUpMACS_DATA.ygx] on the [Setup] screen. Sometimes a board
data read error occurs, but ignore it.
(3) Press the [Parts] button. Select parts data with the target nozzle type. And press the
[Database] button.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
22/23

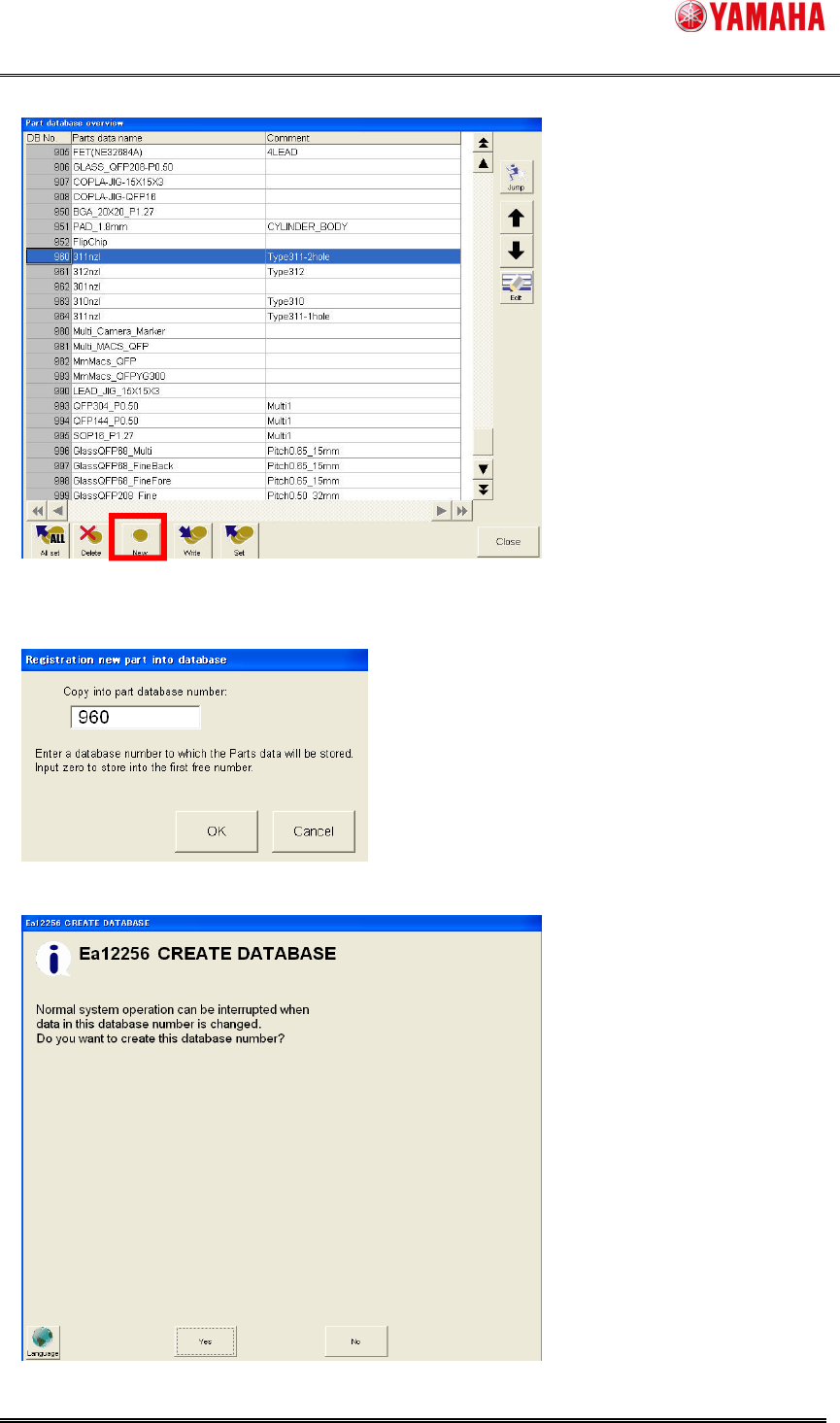

(4) [Part database overview] dialog opens. Press the [New] button.
(5) [Registration new part into database] dialog opens. Input the no use database number.
Press the [OK] button.
(6) When the following message is displayed, press the [No] button, and change the number.
