SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
4/23
2. Summary
This function stabilizes pick up condition, mainly targeting small parts. It consists of the
following two functions.
- Feeder MACS
- Nozzle MACS
It is more effective to use these two functions together. However, it is possible to individually
select either one on [Machine Setting].
2.1. Feeder MACS
Feeder MACS detects a feeder set position, and corrects its pick up position without a manual
teaching.
A Feeder MACS correction value is cleared when the machine shut down or the feeder is
detached from the machine. In that case, Feeder MACS is executed again at the next pick up
action.
When the following buttons are pressed, Feeder MACS is always executed.
- The [Parts Adjust] - [Pickup] button
- The [Teach] - [Trace] button
When Feeder MACS is failed, pick up is executed without a Feeder MACS correction.
2.2. Nozzle MACS
Nozzle MACS detects a nozzle position, and calculates its appropriate pick up position.
The correction value is cleared when an operation concerning a nozzle change is executed,
such as loading board data, pick up error, or Emergency Stop etc.
You can specify whether or not to execute Nozzle MACS again after which operation.
Refer to [3. Setting].
When Nozzle MACS is failed, pick up is executed without a Nozzle MACS correction.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
5/23
3. Setting
Settings to use this function are as follows.
3.1. Machine Setting
In [Machine] - [Setting] - [Machine Data] - [Precision] - [Pickup MACS], set each item.

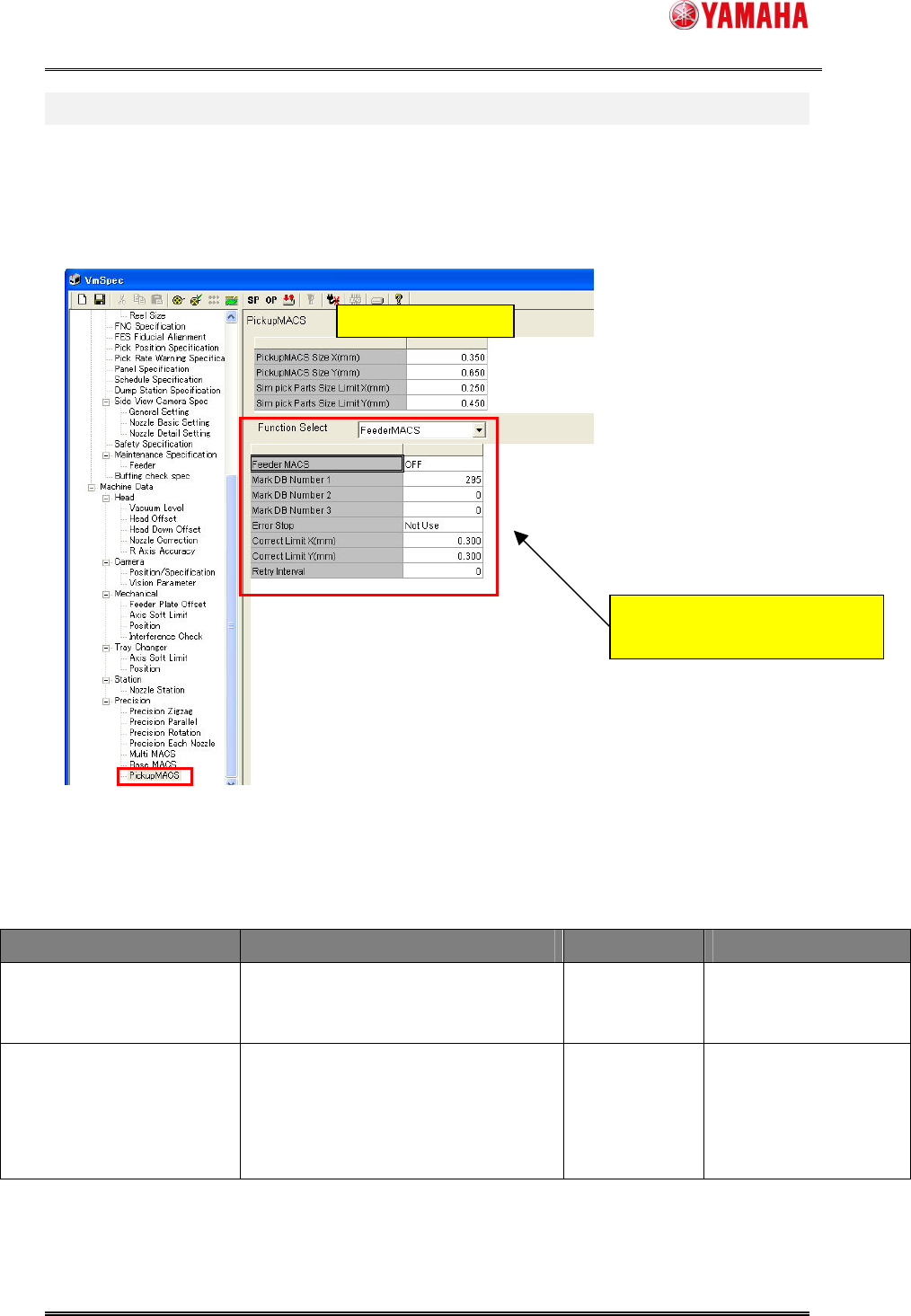

Fig.3.1 “Pickup MACS” Settings
< Contents of Pickup MACS common setting items >
Items Explanation Input range Initial value
Pickup MACS Size X(mm)
Pickup MACS Size Y(mm)
Input the target parts size. This
function executes parts size smaller
than input value in this item.
000.000–
999.999(mm)
X 0.350(mm)
Y 0.650(mm)
Sim Pick Parts Size Limit
X(mm)
Sim Pick Parts Size Limit Y
(mm)
Input the parts size which lower limit
executing simultaneous pickup. The
parts of the size of less than an input
value do not execute simultaneous
pickup.
000.000–
999.999(mm)
X 0.25(mm)
Y 0.45(mm)
Common Setting items
Switch [Feeder MACS] setting items
and [Nozzle MACS] setting items.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
6/23
< Contents of Feeder MACS setting items >
Feeder MACS
Select whether use Feeder MACS or not.
ON – Use, OFF – Not use
ON/OFF OFF
Mark DB Number 1-3
Input the mark data number for Feeder
MACS. The number should be registered
in the mark database.
It is used for Feeder MACS action in order
of 1, 2, and 3.
In case of mark data not using, input the
“0”. In the case of input number all “0”,
Feeder MACS is not executed.
0 - 300 0
Error Stop
When Feeder MACS is failed in auto
running. It stops machine running and
displays error message.
Use – Enabled, Not Use – Disabled
Use/Not Use Not Use
Correct Limit X(mm)
Correct Limit Y(mm)
Input the upper limit correction value of
Feeder MACS.
When Feeder MACS correction value
exceeds this input value, it does not
correct by Feeder MACS.
000.000–
999.999(mm)
X - 0.3(mm)
Y - 0.3(mm)
Retry interval
Input the feeder drive count for retry to
Feeder MACS.
In the case of input the “0”, it does not retry
Feeder MACS by feeder drive count.
0 - 65535 0
< Contents of Nozzle MACS setting items >
Nozzle MACS
Select whether use Nozzle MACS or not.
ON – Use, OFF – Not use
ON/OFF OFF
Error Stop
When Nozzle MACS is failed, it stops
machine running and displays error
message.
Use – Enabled, Not Use – Disabled
Use/Not Use Not Use
Execute at Load Board
Data
Select whether get Nozzle MACS again or
not, at loading board data..
Use – Enabled, Not Use – Disabled
Use/Not Use Use
Execute at Pick Error
Select whether get Nozzle MACS again or
not, when pickup error occurred.
Use – Enabled, Not Use – Disabled
Use/Not Use Not Use
Execute at Emergency
Stop
Select whether get Nozzle MACS again or
not, when emergency stop.
When nozzle station exists the machine,
both [Emergency stop] and [Opening
Nozzle Station Sutter] are required.
Use – Enabled, Not Use – Disabled
Use/Not Use Not Use
