19 A TOM miniature encoder system 15 1 8 9 Ti interface Dimension drawing 16 4-40 unc × 2 8 40 6 min 62 67 CAL / A GC push switch access hole Ø2.4 R > 20 Dynamic bend radius R > 10 Static bend radius Cov er plate R…
18 ATOM miniature encoder system
Ri speed
Clocked outputs
Ri0100, Ri0200 and Ri0400 interfaces have clocked outputs.
Customers must ensure they comply with the lowest recommended counter input frequency.
Non-clocked outputs
Ri0004, Ri0008, Ri0020 and Ri0040 interfaces have non-clocked outputs.
Angular speed
Angular speed depends on disc optical diameter – use the following equation to convert to rev/min:
Angular speed (rev/min) =
V × 1000 × 60
p D
where V = maximum linear speed (m/s) and D = optical diameter (mm)
Analogue outputs
40µm system - 20m/s (−3dB)
20µm system - 10m/s (−3dB)
Maximum speed (m/s)
Lowest recommended
counter input frequency
(MHz)
20 µm system 40 µm system
0100
(0.2 µm)
0200
(0.1 µm)
0400
(50 nm)
0100
(0.4 µm)
0200
(0.2 µm)
0400
(0.1 µm)
- 0.8 0.4 - 1.6 0.8
12
- 0.5 0.25 - 1 0.5
10
0.8 0.4 0.2 1.6 0.8 0.4
6
0.5 0.25 0.12 1 0.5 0.24
4
20 µm system 40 µm system
Lowest recommended counter
input frequency (MHz)
Interface type Maximum speed (m/s) Interface type Maximum speed (m/s)
0004 (5 µm) 10 0004 (10 µm) 20
0008 (2.5 µm) 10 0008 (5 µm) 20
0020 (1 µm) 10 0020 (2 µm) 20
0040 (0.5 µm) 10 0040 (1 µm) 20
Encoder velocity (m/s)
Resolution (µm)
× 4
safety
factor
19 ATOM miniature encoder system
15
1
8
9

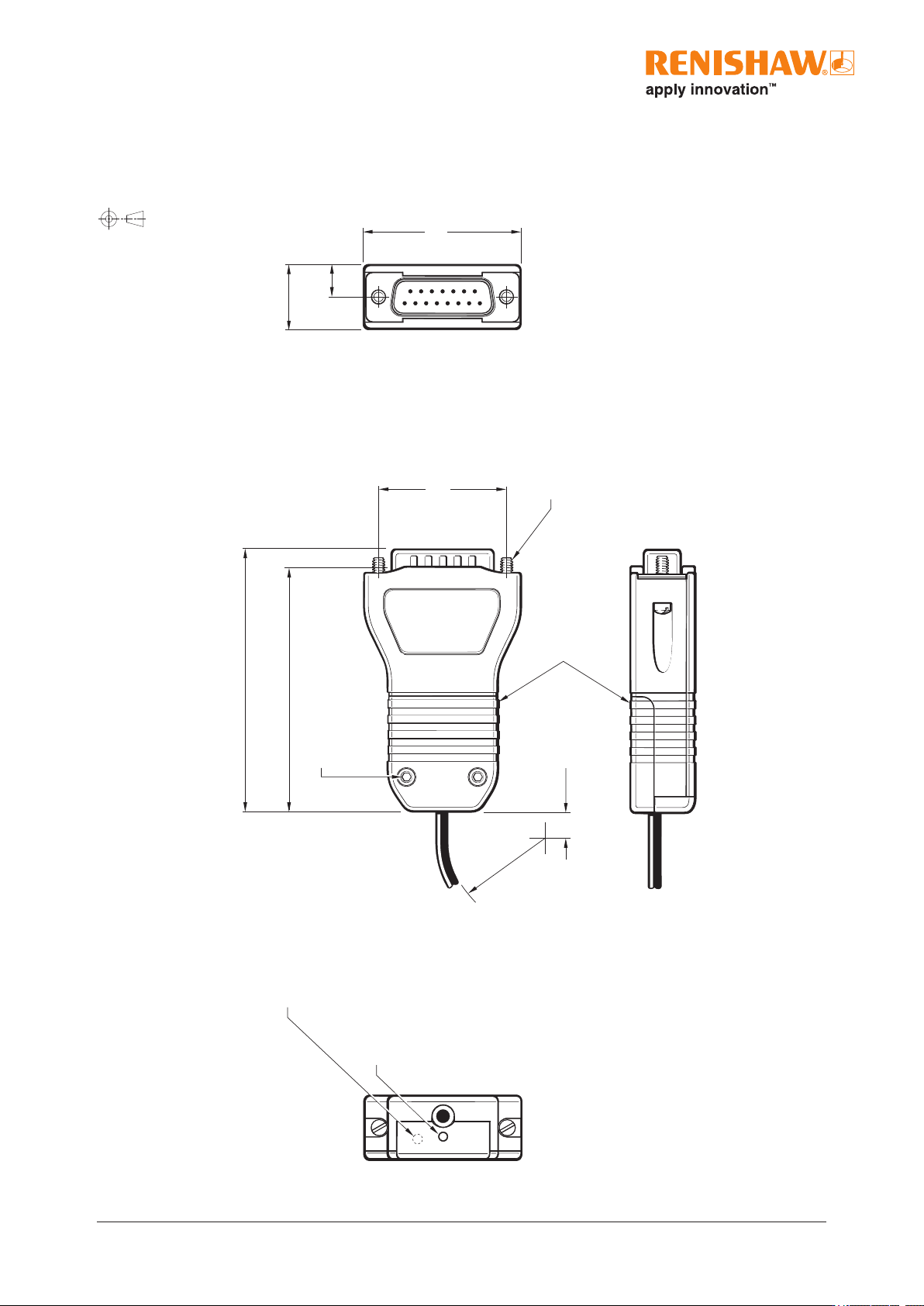

Ti interface
Dimension drawing
16
4-40 unc × 2
8
40
6 min
62
67
CAL / AGC push switch
access hole Ø2.4
R > 20 Dynamic bend radius
R > 10 Static bend radius
Cover plate
Requires 2mm hex key
Diagnostic LED
(Ti0004–Ti20KD)
33.3
Dimensions and tolerances in mm
20 ATOM miniature encoder system
Ti speed
20µm system
Maximum speed (m/s)
Lowest
recommended
counter input
frequency (MHz)
Ti0004
5 µm
Ti0020
1 µm
Ti0040
0.5 µm
Ti0100
0.2 µm
Ti0200
0.1 µm
Ti0400
50 nm
Ti1000
20 nm
Ti2000
10 nm
Ti4000
5 nm
Ti10KD
2 nm
Ti20KD
1 nm
10 10 10 6.48 3.24 1.62 0.648 0.324 0.162 0.0654 0.032
50
10 10 10 5.4 2.7 1.35 0.54 0.27 0.135 0.054 0.027
40
10 10 8.1 3.24 1.62 0.81 0.324 0.162 0.081 0.032 0.016
25
10 10 6.75 2.7 1.35 0.675 0.27 0.135 0.068 0.027 0.013
20
10 9 4.5 1.8 0.9 0.45 0.18 0.09 0.045 0.018 0.009
12
10 8.1 4.05 1.62 0.81 0.405 0.162 0.081 0.041 0.016 0.0081
10
10 6.48 3.24 1.29 0.648 0.324 0.13 0.065 0.032 0.013 0.0065
8
10 4.5 2.25 0.9 0.45 0.225 0.09 0.045 0.023 0.009 0.0045
6
10 3.37 1.68 0.67 0.338 0.169 0.068 0.034 0.017 0.0068 0.0034
4
4.2 0.84 0.42 0.16 0.084 0.042 0.017 0.008 0.004 0.0017 0.0008
1
40µm system
Analogue speed
40µm system - 20m/s (−3dB)
20µm system - 10m/s (−3dB)
Angular speed
Angular speed depends on disc optical diameter – use the following equation to convert to rev/min:
Angular speed (rev/min) =
V × 1000 × 60
p D
where V = maximum linear speed (m/s) and D = optical diameter (mm)
Maximum speed (m/s)
Lowest
recommended
counter input
frequency (MHz)
Ti0004
10 µm
Ti0020
2 µm
Ti0040
1 µm
Ti0100
0.4 µm
Ti0200
0.2 µm
Ti0400
0.1 µm
Ti1000
40 nm
Ti2000
20 nm
Ti4000
10 nm
Ti10KD
4 nm
Ti20KD
2 nm
20 20 20 12.96 6.48 3.25 1.296 0.648 0.324 0.013 0.064
50
20 20 20 10.8 5.4 2.7 1.08 0.54 0.27 0.108 0.054
40
20 20 16.2 6.48 3.24 1.62 0.648 0.324 0.162 0.064 0.032
25
20 20 13.5 5.4 2.7 1.34 0.54 0.27 0.136 0.054 0.026
20
20 18 9 3.6 1.8 0.9 0.36 0.18 0.09 0.036 0.018
12
20 16.2 8 3.24 1.62 0.8 0.324 0.162 0.082 0.032 0.0162
10
20 12.96 6.48 2.58 1.296 0.648 0.26 0.13 0.064 0.026 0.013
8
20 9 4.5 1.8 0.9 0.45 0.18 0.09 0.046 0.018 0.009
6
20 6.74 3.36 1.34 0.676 0.338 0.136 0.068 0.034 0.0136 0.0068
4
8.4 1.68 0.84 0.32 0.168 0.084 0.034 0.016 0.008 0.0034 0.0016
1
