User Manual SIPLAC E CF 6 Component han dling Software version SR.101.xx 06/2003 US Edition 6.2 Technical data for the feeders 147 6.2.8 44 mm S fee der Fig. 6.2 - 8 44 mm S feeder 6 Part no. 00141094- xx Width 54.3 mm T…
6 Component handling User Manual SIPLACE CF
6.2 Technical data for the feeders Software version SR.101.xx 06/2003 US Edition
146
6.2.7 24/32 mm S feeder
Fig. 6.2 - 7 24/32 mm S feeder
6
Part no. 00141093-xx
42.4 mm wide
Tracks per feeder 1
Assigned locations 1.5
Maximum number of feeders 2 x 13
Stock of components for 7" reels approx. 2000
Transport distance (variable) 4 to 40 mm, (in 4 mm increments)
User Manual SIPLACE CF 6 Component handling
Software version SR.101.xx 06/2003 US Edition 6.2 Technical data for the feeders
147
6.2.8 44 mm S feeder

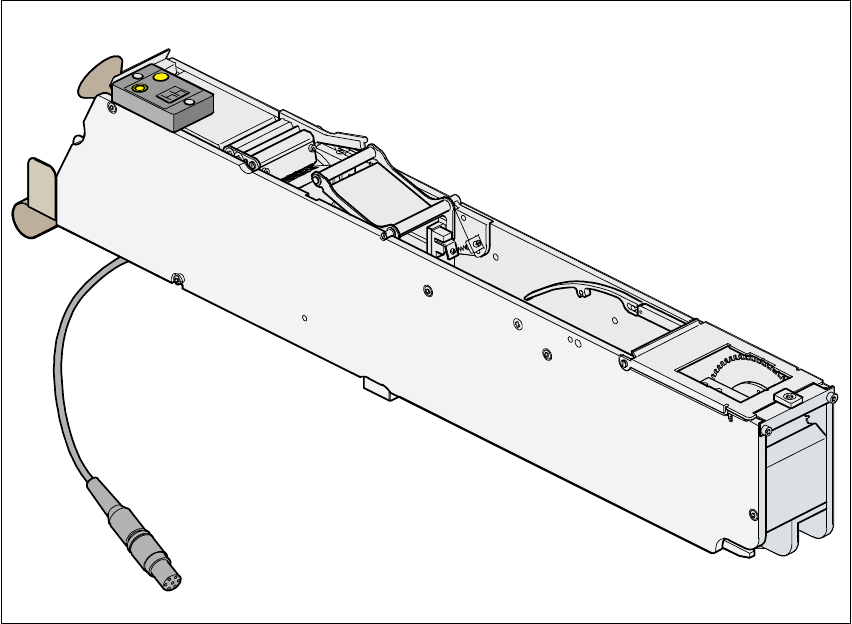

Fig. 6.2 - 8 44 mm S feeder
6
Part no. 00141094-xx
Width 54.3 mm
Tracks per feeder 1
Assigned locations 2
Maximum number of feeders 2 x 10
Stock of components for 7" reels approx. 2000
Transport distance (variable) 4 to 52 mm, (in 4 mm increments)
6 Component handling User Manual SIPLACE CF
6.2 Technical data for the feeders Software version SR.101.xx 06/2003 US Edition
148
6.2.9 56 mm S feeder
Fig. 6.2 - 9 56 mm S feeder
6
Part no. 00141095-xx
Width 66.2 mm
Tracks per feeder 1
Assigned locations 2,5
Maximum number of feeders 2 x 8
Stock of components for 7" reels approx. 2000
Transport distance (variable) 4 to 68 mm, (in 4 mm increments)
