i3070-Software-Installation.pdf.pdf - 第15页
i3070 Software Installation 15 View licenses Once the licenses ar e successfully install ed, you can view them fr om the View licenses tab. The following shows exa mples for a testhead controll er and test development wo…
14 i3070 Software Installation
4 Click Browse to locate and select the license file(s) that you saved earlier.
5 Click Next to complete the license setup.
6 Go to the C:\I3070_ICT\util folder. Right-click licenseSearchPathReg.bat and
select Run as administrator. This will ensure that the license search path setup
is consistent for all ICT3070 user accounts.
You can now run the i3070 software on:
• Testhead controller
• Test development workstation issued with node-locked licenses.
Proceed with the license server setup if you have floating licenses to install for
optional test features and test development workstations. For instructions, see the
“Single/Triple-Redundant Network License Server Setup Guide”.
i3070 Software Installation 15

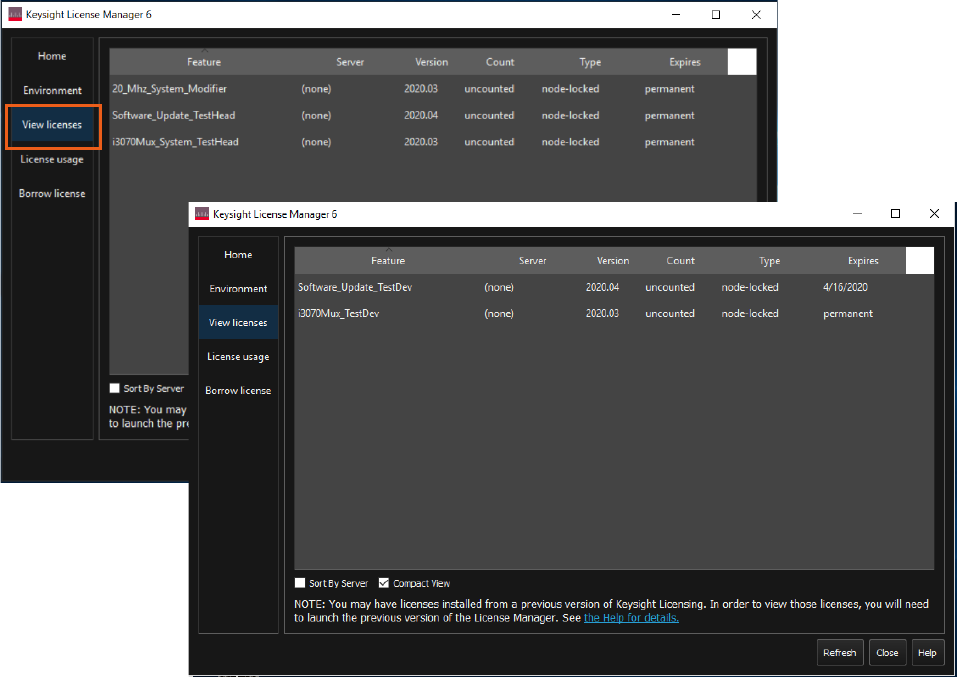

View licenses
Once the licenses are successfully installed, you can view them from the View
licenses tab. The following shows examples for a testhead controller and test
development workstation.
16 i3070 Software Installation
Setting up client machines to use floating licenses
Follow these steps to enable the test development workstations (client machines)
to make use of floating licenses. You will need the hostname(s) of the license
server(s) where the floating licenses reside.

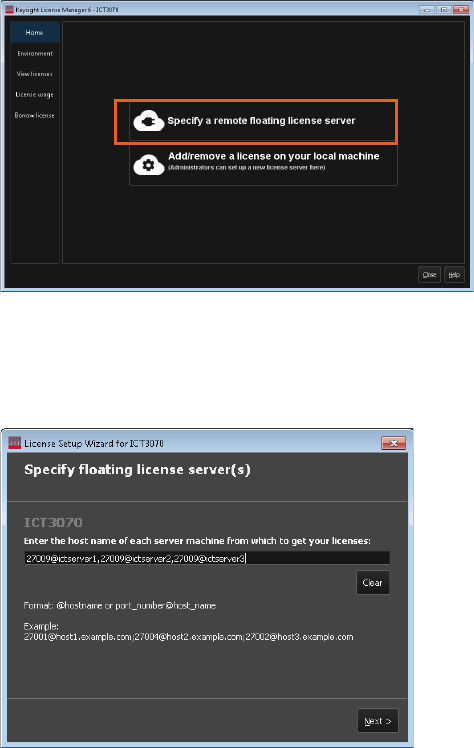

1 On the test development workstation, launch Keysight License Manager 6
(Start > Keysight License Manager 6 > Keysight License Manager 6).
2 Click Specify a remote floating license server.
3 Enter the hostname of the floating license server.
If your system relies on a triple redundant server setup, enter the hostnames of
the three license servers, separated by commas. The three servers should in the
same order as specified in the license files.
4 Click Next to complete the license setup.
5 Go to the C:\I3070_ICT\util folder. Right-click licenseSearchPathReg.bat and
select Run as administrator. This will ensure that the license search path setup
is consistent for all ICT3070 user accounts.
