8 i3070 Software Installation
Installing the software
Task Steps
1 Insert the Keysight installation
disk into the drive.
It should auto-start.
a If the User Account Control dialog box appears, click Yes to allow the installation
to continue.
b In the installation window, click Install Keysight i3070 Software.
If the installation does not auto-start after several seconds:
a Open Windows Explorer and browse to the disc.
b Double-click setup.exe in the W10\Software folder.
c If the User Account Control dialog box appears, click Yes to allow the installation
to continue.
2 Install required components, if
missing:
The installer checks that system requirements are met and that required
components are installed.
• If system requirements are not met, the installer may exit. See Table 1 for the
requirements.
• If any component is missing, a dialog box will be displayed.
a Click Install if you see any of these dialog boxes.
NOTE: This can happen at any time during the installation process.
b When installation is complete, click Next to continue.
3 Accept license agreement: a Accept the license agreement and click Next to proceed.
4 In the Destination Folder
window:
a Accept the default folder for installing the software, unless you have a specific
need to change it.
NOTE: Spaces are not allowed in the path of the destination folder, which must
be on drive C.
b Click Next.
i3070 Software Installation 9

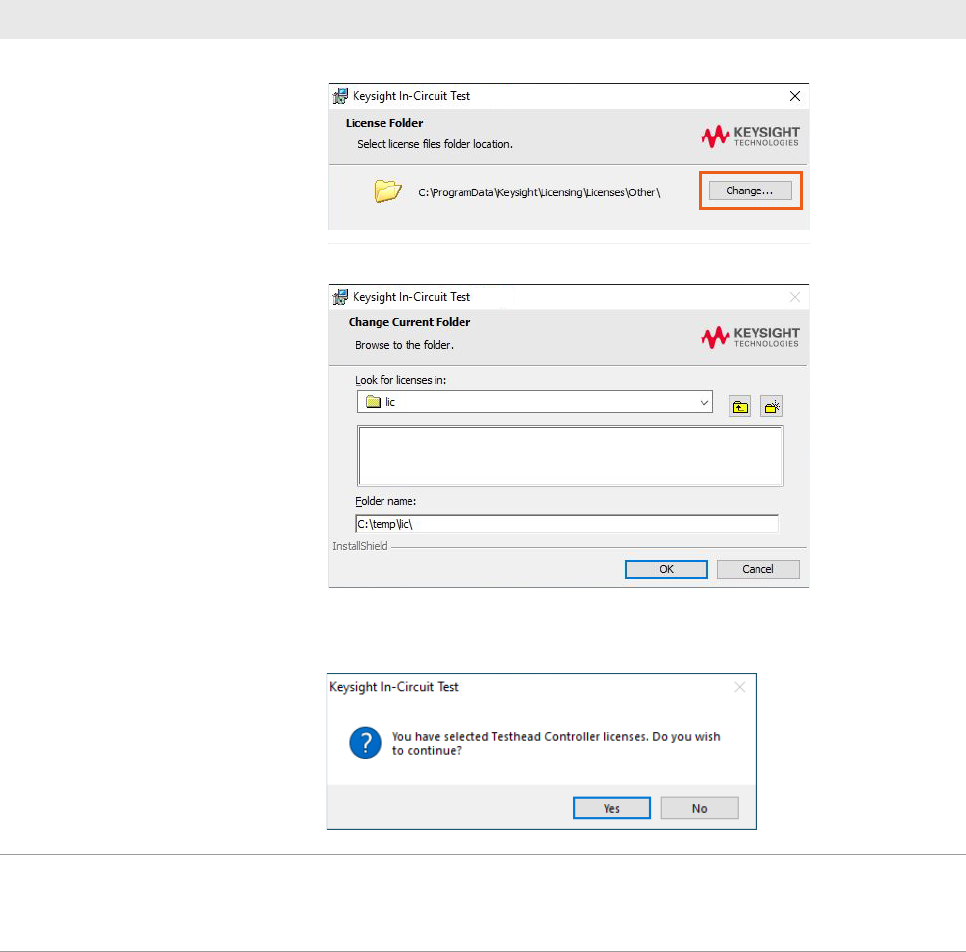

5 Check license files for Testhead
Controller (node-locked):
(Licenses will be installed on the
controller together with the
i3070 software.
If you are installing on a test
development workstation, go to
step 7.)
a In the License Folder dialog box, click Change.
b Select the temporary folder where you saved your license files and click OK.
c The installer lists the licenses found in the selected folder. Click Next.
d Click Yes to confirm you are installing on a testhead controller.
6 Create user accounts (testhead
controller)
• User accounts will be created for first-time installation on testhead controllers.
• Where i3070 user accounts already exist, no new users will be created.
Click Next to continue (skip to step 8).
Installing the software (continued)
Task Steps
10 i3070 Software Installation
7 Check license files for
Test Development Workstation
(node-locked)
(Licenses will be installed on the
workstation together with the
i3070 software.)
a In the License Folder dialog box, click Change.
b Select the temporary folder where you saved your license files and click OK.
c The installer lists the licenses found in the selected folder. Click Next.
d Click Yes to confirm you are installing on a test development workstation.
8 Confirm installation: The installer displays the third party applications to be installed.
a Click Install to begin installation.
b If prompted, click Install or Next to continue installation.
9 Finish installation: a When installation is completed, click Finish.
b Then click OK to reboot the computer.
10 Perform XVision optimization: After Windows restarts, the XVision Optimizer window appears.
a Click Yes to start the optimization process. It will take a few minutes to complete.
b Repeat the optimization process for each user account. (The XVision Optimizer
window will appear when each user logs on.)
11 If errors or other messages
appear:
• If Quick Log Converter prompts for a missing template, ignore it.
• If prompted to install a new version of Keysight IO Libraries, do not do so. Select
Skip this version and Quit.
