26 Component Feeding Alternative SIPLACE Modules SIPLACE StickFeeder E SIPLACE StickFeeder E The SIPLACE StickFeeder E f o r E b y S I P L A C E can be used on any E by SIPLACE feeder table and can setup any number of st…

Component Feeding

SIPLACE JTF-MW

Technical Data

Description JTF-MW

Dimensions

Width

322.40 mm

Height

946 mm

Length 1209 mm

Location on E by SIPLACE

Installed / docked at location 2 only

JEDEC waffle pack tray specification

JEDEC Standard: 95-1 & IEC 60286-5

Storage capacity

30 JEDEC waffle pack trays

15 cookie trays, each can hold 2 JEDEC trays

Max component height from tray base

10.8 mm (zero tray level skipping)

24.6mm (1 tray level skipping)

38.4mm (2 tray level skipping)

Cassette

Dimensions (L x W x H) 344 mm x 300 mm x 228 mm

Total weight loading 30 kg

(cookie tray + components)

Max. weight per cookie tray

2.0 kg ± 10%

Max. tray size when not using JEDEC

304mm x 274mm for component +tray height >11mm

Pneumatics

5 bar to 10 bar

Compressed air consumption

28.3 NL/min.

Communication

Pogo-pin interface, Can bus

Weight

~ 45 kg excluding cookie trays & magnets

~ 60 kg including 15 cookie trays & magnets

Component Feeding

Alternative SIPLACE Modules

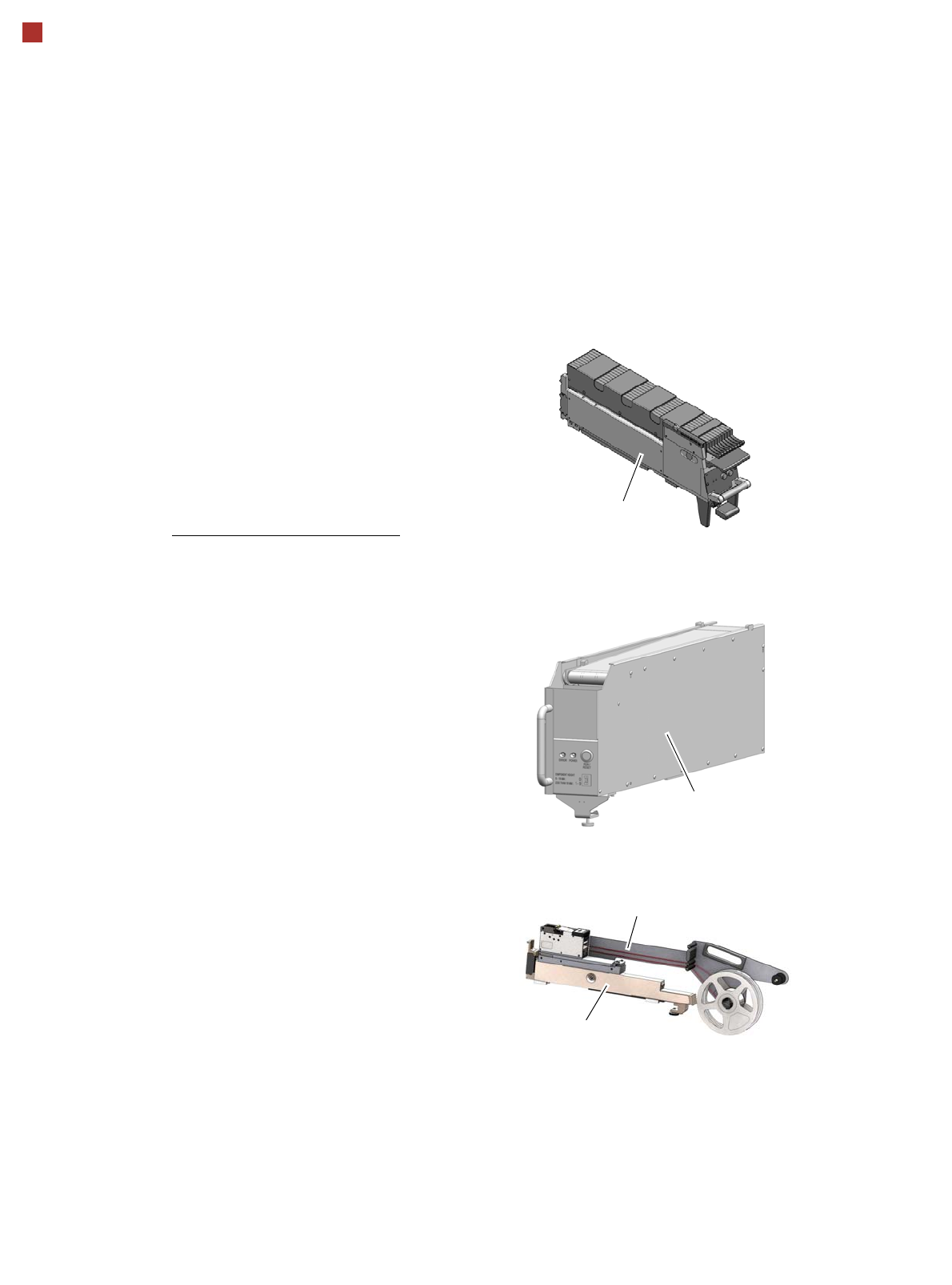

SIPLACE StickFeeder E

The SIPLACE StickFeeder E for E by SIPLACE

can be used on any E by SIPLACE feeder table

and can setup any number of stick / tube.

The SIPLACE StickFeeder E also allows the

use of sticks/rails from old SIPLACE linear feed-

ers

The StickFeeder for E by SIPLACE will occupy

10 tracks on the feeder table.

1) Only works for sticks/rails that have been

checked by ASM SOKO.

Feeder Adaptor RO E

Label Feeder

Label Feeder (OEM Product)

Via a dedicated Feeder Adaptor RO E, the

Label Feeders ALF12 and ALF14 can be setup

and used on E by SIPLACE. For further techni-

cal details please visit http://label-feeder.com

and contact your dedicated E by SIPLACE dis-

tributor.

Feeder Adaptor RO E

The Feeder Adaptor RO E provides the neces-

sary interface to third party feeder, such as the

Label Feeder and Bowl Feeder. For further tech-

nical details please contact your dedicated E by

SIPLACE distributor.

SIPLACE Component

Reject Conveyor E

SIPLACE Component Reject Conveyor E

The SIPLACE Component Reject Conveyor E

is designed so that defective components (veri-

fied by placement machine vision system) are

placed onto conveyor belt and transferred out of

machine for operator retrieval. It is handled like

any other feeder for E by SIPLACE and can be

mounted onto its feeder tables.

Component Feeding

Alternative SIPLACE Modules

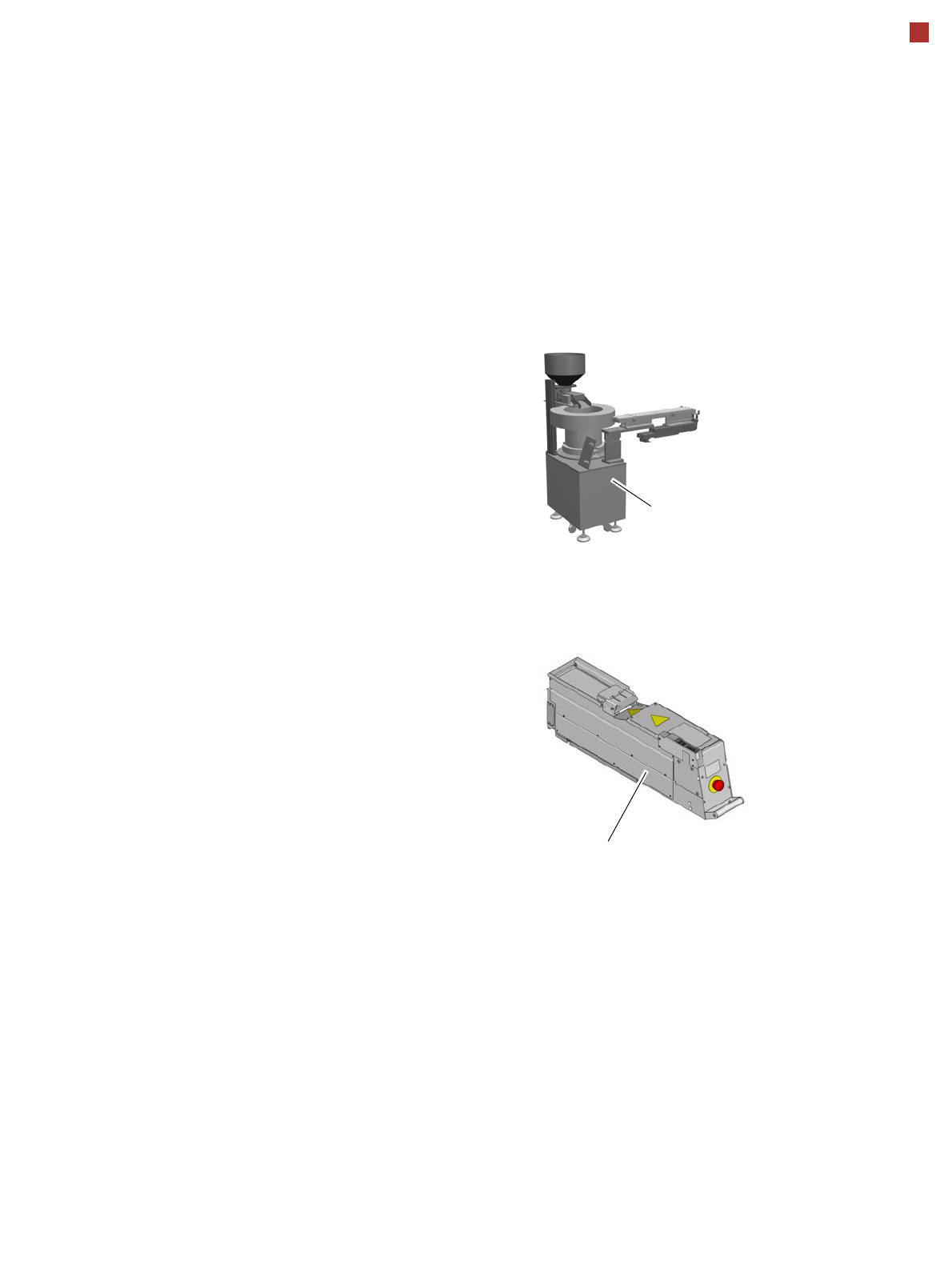

SIPLACE LDU E

The SIPLACE LDU E is used for coating flip

chips and CSP components with flux. The flux

container slides with a linear movement over

the dip plate and coats the cavity in the dip plate

with a layer of flux (predefined layer thickness).

The parameters for coating a component with

flux are prescribed in SIPLACE Pro.

The component is coated and then the flux layer

is renewed.

This sequence guarantees consistent process-

ing conditions for the components. The

SIPLACE LDU E is taken into account as an

independent feeder module type in the setup.

An implemented warming function allows the

viscosity of the flux to be altered. It occupies 9

locations of an 8 mm E feeder module.

SIPLACE LDU E

Bowl Feeder (OEM Product)

Via a single or multiple Feeder Adapter E, the

Bowl Feeders can be setup and used on E by

SIPLACE. For further technical details please

contact your dedicated E by SIPLACE distribu-

tor.

Bowl Feeder
