39 Technical Data Maneuvering Radii for the Component Trolleys Location 1 / Locatio n2 Maneuvering radius R 700 mm Distance L1: Machine center to outer edge of changeover table 1205 mm Distance L2: Machine center to wall…
38
Technical Data

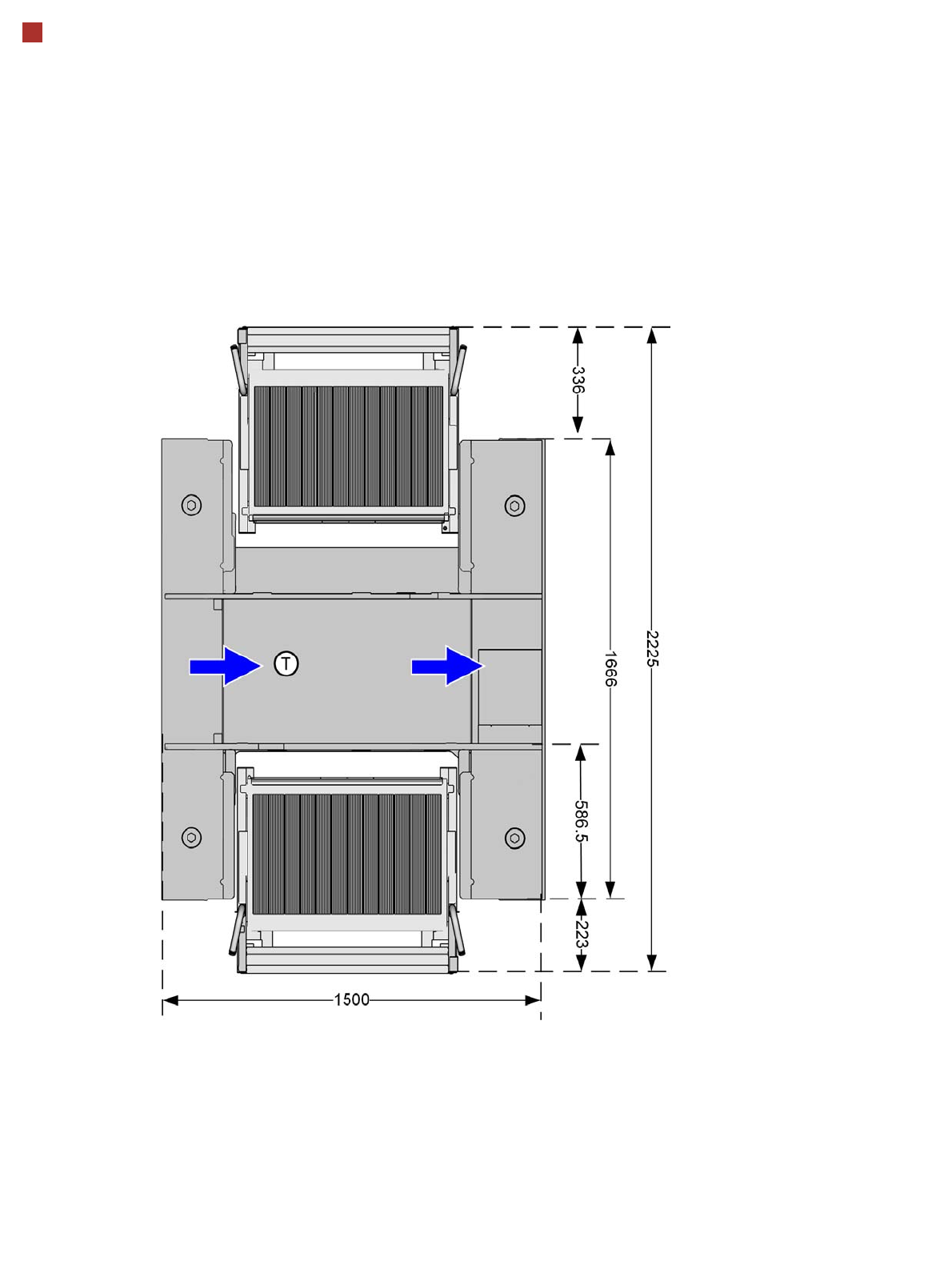

Placement System Dimensions

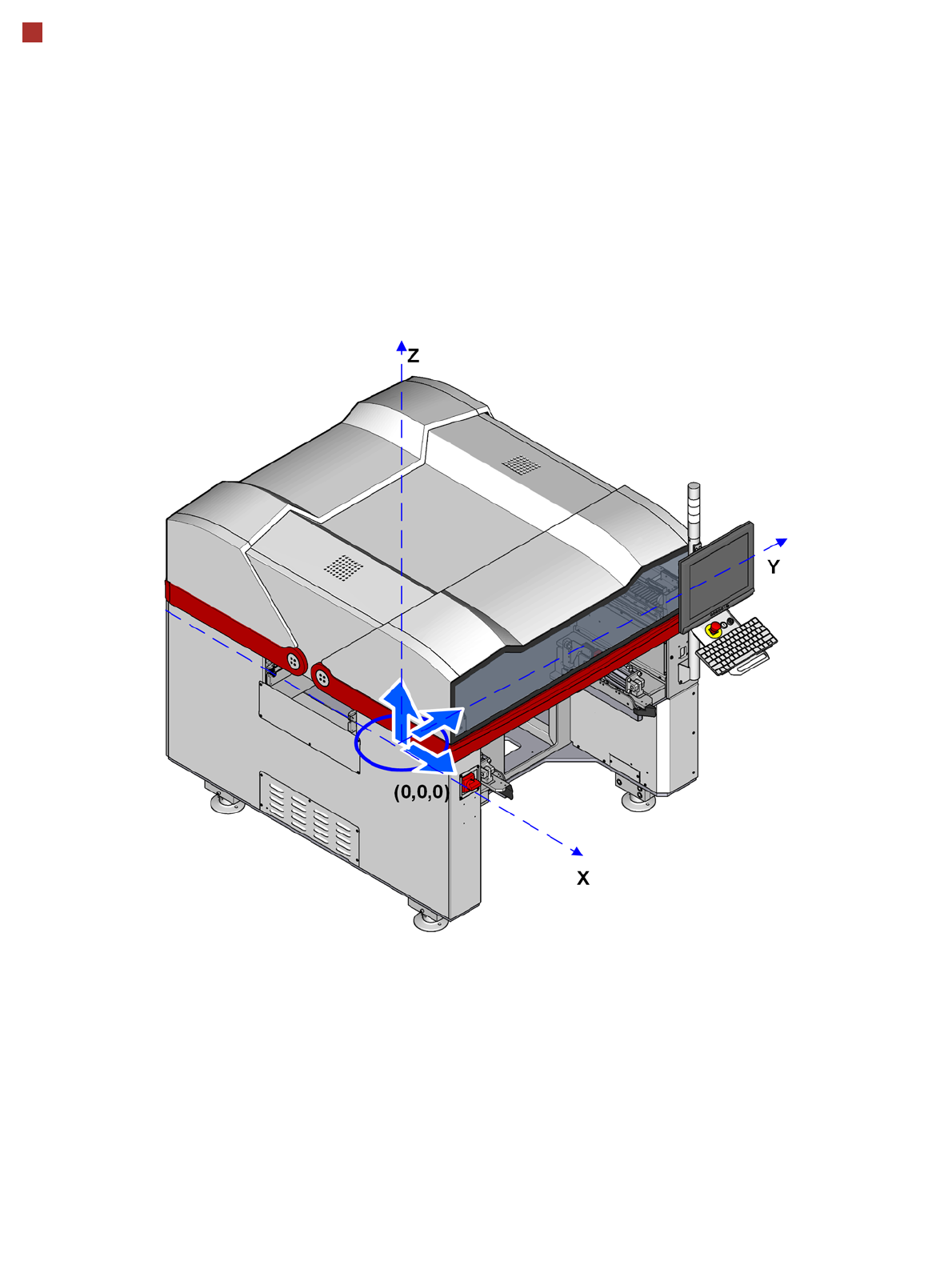

Placement System Center of Gravity
X = 0 mm
Y = 0 mm
Z = 721 mm
39
Technical Data

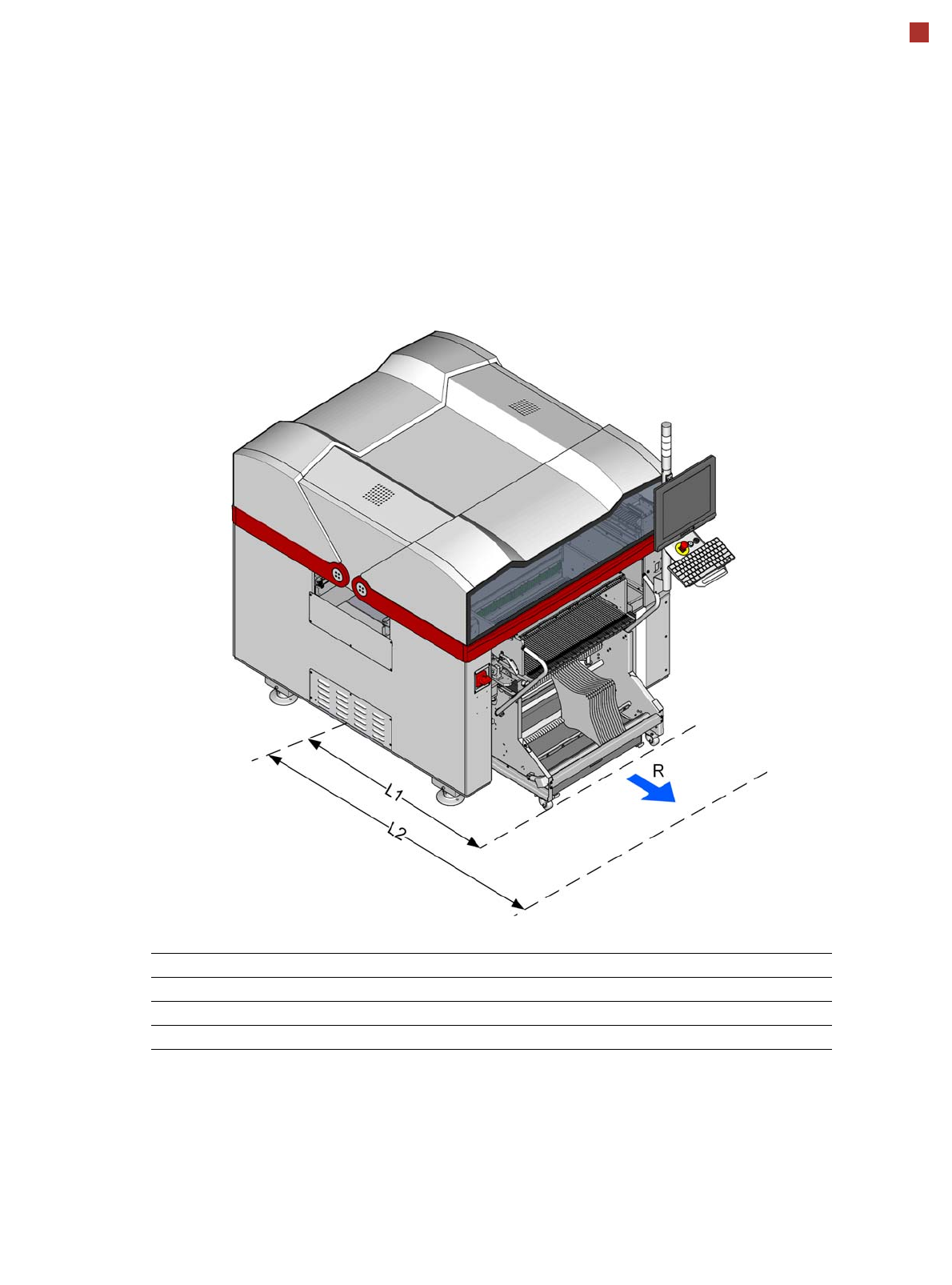

Maneuvering Radii for the Component Trolleys
Location 1 / Location2
Maneuvering radius R
700 mm
Distance L1: Machine center to outer edge of changeover table
1205 mm
Distance L2: Machine center to wall
1905 mm
