4 E by SIPLACE Content Technical Data 36 Electrical Ratings, Energy Consum ption and Compr essed Air suppl y3 6 Dimensions and Setup Co nditions 37 Placement System Dimensions 38 Placement System Center of Gravity 38 Man…
3
E by SIPLACE
Content
Overview of Technical Data 5
Optimum Values 5
E by SIPLACE 6
Machine Description 6
E by SIPLACE Placement Heads 8
Overview 8
SIPLACE CP14 9
SIPLACE CP12 10
SIPLACE TH 11
SIPLACE PP 12
Nozzle Changer 13
Board Conveyor 14
Technical Data 15
PCB Warpage 16
Virtual Inkspot Handler (VIH) 18
Component Feeding 19
Component Trolley 19
Technical Data 20
SIPLACE SmartFeeder E 21
Manual Tray Holder 22
Tray Setup Plate and Arbitrary JEDEC Tray RO E 23
SIPLACE JTF-MW 24
Technical Data 25
Alternative SIPLACE Modules 26
SIPLACE Vision 28
OnBoard Inspection and Pattern Matching 28
PCB position recognition 29
Barcode types 31
OSC package 33
ASM Software Products 34
Overview 34
01005 Placement 35
4
E by SIPLACE
Content
Technical Data 36
Electrical Ratings, Energy Consumption and Compressed Air supply36
Dimensions and Setup Conditions 37
Placement System Dimensions 38
Placement System Center of Gravity 38
Maneuvering Radii for the Component Trolleys 39
Dimensions 40
Dimensions with JTF-MW 41
Transportation and Delivery Configuration 42
Overview of languages 43
Notes 44
5
Overview of Technical Data
Optimum Values
Placement Head CP14 CP12 CP12/PP
a
a) The max component is the diagonal value of the max component size indicated.
TH
a
E-Component Range 01005 to
6 x 6mm
01005
b
to
18.7 x 18.7 mm
b) Optional with 01005 package CP12 E
01005 to
45 x 87.5 mm
0201 to
200 x 110 mm
E-Component Height 4 mm 7.5 mm 19 mm 25 mm
E-Accuracy (3σ) 34µm 41µm 30µm 30µm
E-Speed 45,300 cph 24,300 cph 24,200 cph 5,200 cph
IPC
c
Speed
c) IPC specification base on 01005.
25,000 cph 14,700 cph 14,700 cph 4,400 cph
Placement
Machine
E by SIPLACE
Heads CP14, CP12, CP12/PP, TH
Board format
(length
a
x width)
a) With „Long board“ option
1200 mm x 460 mm
Feeder capacity 120 x SIPLACE SmartFeeder 8 mm E
PCB thickness 0.3 - 4.5 mm
PCB weight
b
b) The board weight value refers to the weight of the board plus the weight of the components
up to 2 kg
Air Consumption 90 NL/Min. 90 NL/Min. 140 NL/Min. 140 NL/Min. 185 NL/Min.
Machine dimen-
sion (L x W)
c
c) Without changeover table or fixed table
1,500 mm x 1,666 mm
Machine weight
d
d) Single-Sided machine
1,850 kg

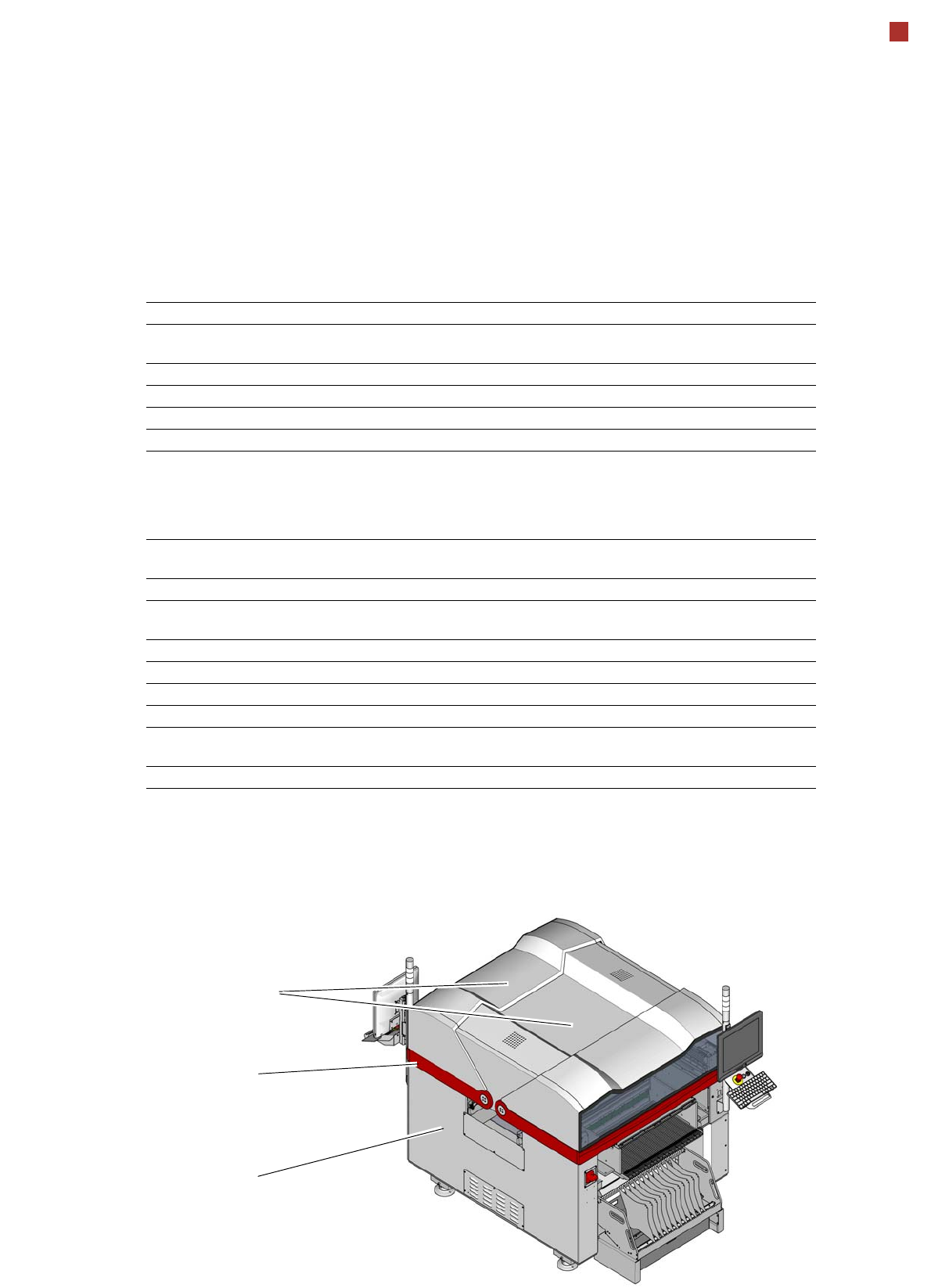

Protective covers: Telegray 4
(RAL 7047)
Covers: Telegray 4
(RAL 7047)
Machine colors
Cover strip: Red
(RAL 3003)
