9-C 一 括交換台車( コンパ ク ト タ イプ ) Feeder Cart(Co mpact Type) パーツレイアウト Kit No. キット品 番 Kit N a me キット名称 N610088987AA ｾｸｼｮﾝN o. PARTS LAYOUT Section No. - - S37 ( KN610088987AA-17-3 )
Ref
No.
Remarks
R
1
Q'ty
9-B
一
括交換台車(
コンパ
ク
ト
タ
イプ
)

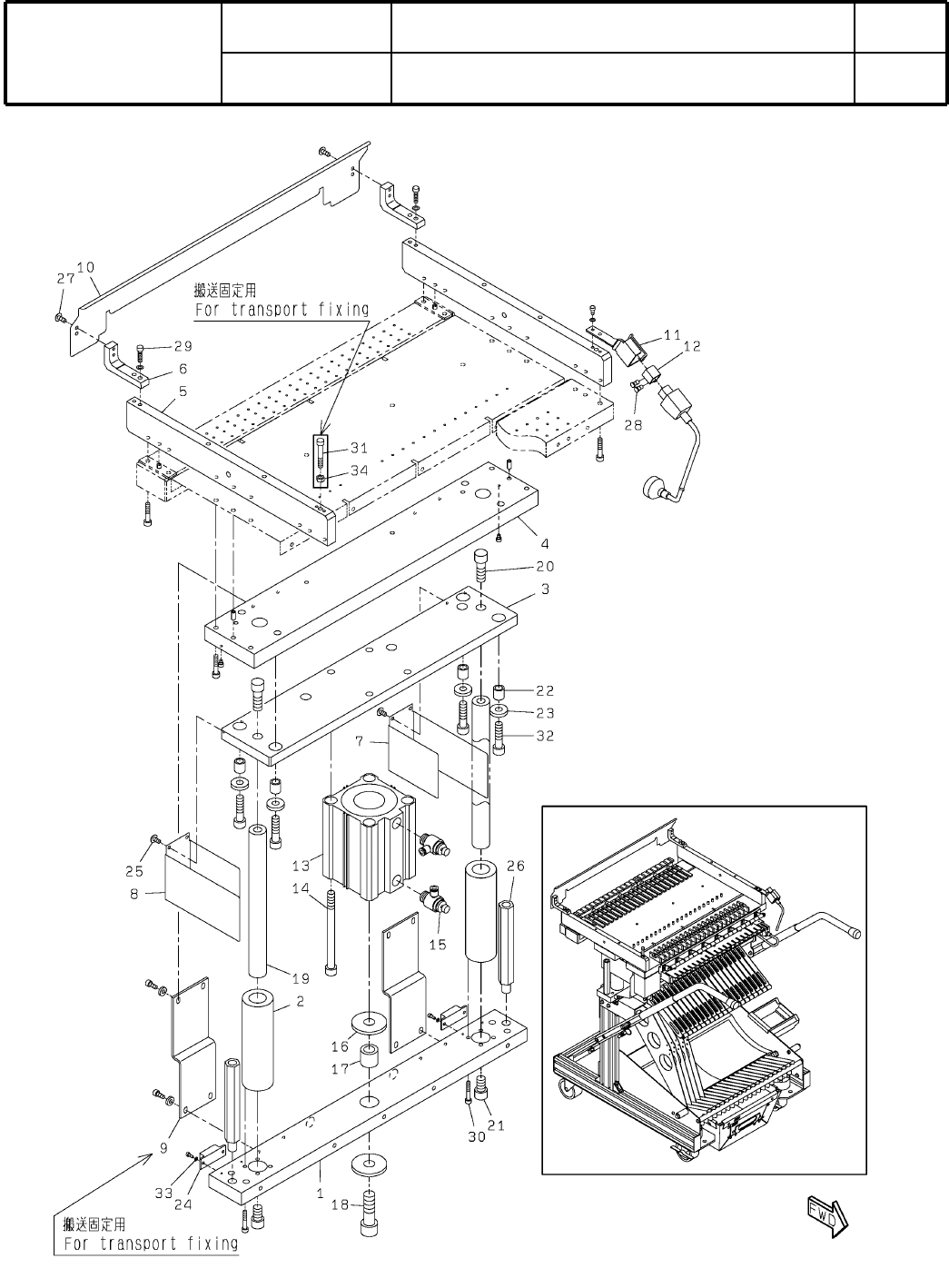

Feeder Cart(Compact Type)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610088987AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210021947AC
PLATE
1
2 N210021948AA
SHAFT
1
3 N210021949AA
COLLAR
21
4 MTPA001544AA
COVER
1
5 N210111303AA
BRACKET
8
6 KXFB02F4A00
GUIDE
2
7 KXFB02F5A00
GUIDE
1
8 N210021950AA
COVER
1
9 KXFB02F6A00
COVER
1
10 N210021959AA
COVER
1
11 N210021957AA
COVER
1
12 N210022420AA
COVER
1
13 N210022421AA
GUIDE
1
14 N210029161AA
PIN
4
15 KXF0CXHAA00 1017003-40008
PIN
2
16 KXF0CXJAA00 1017003-50010
SPACER
8
17 N510016261AA BSF-425E
SPACER
4
18 N510016262AA BSF-480E
JOINT
1
19 KXF08GBAA00 KQLE06-00
GROMMET
1
20 KXF007TAA00 C-30-SG-32A
BAND
1
21 KXF0290AA00 KCA-34
PLUG
1
22 KXF02CRAA00 KQP-06
BOLT
10
23 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
1
24 N510017305AA
Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent)
BOLT
18
25 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J(Trivalent)
BOLT
15
26 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
6
27 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
16
28 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
5
29 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
WASHER
14
30 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
12
31 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
10
32 N510020100AA Thick washer M5
WASHER
1
33 N510020098AA Thick washer M3
S36
--
( KN610088987AA-17-2 )
9-C
一
括交換台車(
コンパ
ク
ト
タ
イプ
)
Feeder Cart(Compact Type)
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610088987AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
S37
( KN610088987AA-17-3 )
Ref
No.
Remarks
R
1
Q'ty
9-C
一
括交換台車(
コンパ
ク
ト
タ
イプ
)
Feeder Cart(Compact Type)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610088987AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210021938AB
BUSH
2
2 N210011274AA
PLATE
1
3 N210021943AA
BASE
1
4 N210024448AB
BAR
2
5 KXFB02EGA03
BRACKET
2
6 N210100142AA
COVER
1
7 N210021974AA
COVER
1
8 N210021954AA
BRACKET
2
9 N210019839AA
COVER
1
10 N210076818AB
BRACKET
1
11 N210083874AA
COVER
1
12 N210060009AD
CYLINDER
1
13 N510005138AA ACQ80X75
BOLT
4
14 N510017161AA
Hexagon socket head cap screw M10X130-10.9 A2J (Trivalent)
SPEED-CONTROLLER
2
15 KXF0952AA00 AS3201F-03-06S
WASHER
2
16 N510031421AA 87FWSSB-D50-V16.0-T5.0
COLLAR
2
17 N510044840AA 87FNCLB-V16.0-D25-L23.0
BOLT
1
18 N510017227AA
Hexagon socket head cap screw M16X50-10.9 A2J (Trivalent)
POST
2
19 N510004786AA ETKRFT-25-250-1
BOLT
2
20 N510017190AA
Hexagon socket head cap screw M12X35-10.9 A2J (Trivalent)
BOLT
2
21 N510017187AA
Hexagon socket head cap screw M12X20-10.9 A2J (Trivalent)
COLLAR
4
22 N510044841AA 87FNCLB-V10.0-D16.0-L18.0
WASHER
4
23 N510031420AA 87FWSSB-D25-V10.0-T5.0
MAGNET
2
24 KXF03HBAA00 SM-77S
SCREW
4
25 N510018283AA
Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent)
POST
2
26 N510008398AA LSBWRKT-19-133
SCREW
4
27 N510018258AA
Cross recessed Truss head machine screw M4X10-4.8 A2S (Trivalent)
SCREW
2
28 N510018104AA
Cross recessed Pan head machine screw for precision devicesM2X4Type1
BOLT
4
29 N510017398AA
Hexagon socket head cap screw M5X20-10.9 A2J (Trivalent)
BOLT
8
30 N510017401AA
Hexagon socket head cap screw M5X30-10.9 A2J (Trivalent)
BOLT
10
31 N510017442AA
Hexagon socket head cap screw M6X40-10.9 A2J (Trivalent)
BOLT
4
32 N510017170AA
Hexagon socket head cap screw M10X40-10.9 A2J (Trivalent)
WASHER
4
33 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
NUT
4
34 N510017867AA
Hexagon nut Type-1 Best class M6-6H-4T A2J (Trivalent)
