Ref No. Remark s R 1 Q'ty 4-D 全 体 カバー W hole Cover ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット 品 番 Kit Name キット名称 N610090855AA Part Nam e 備 考 ｾｸｼｮﾝN o. PARTS LIST Section No. R 3 COVER 1 1 N210006136AA BRAC…

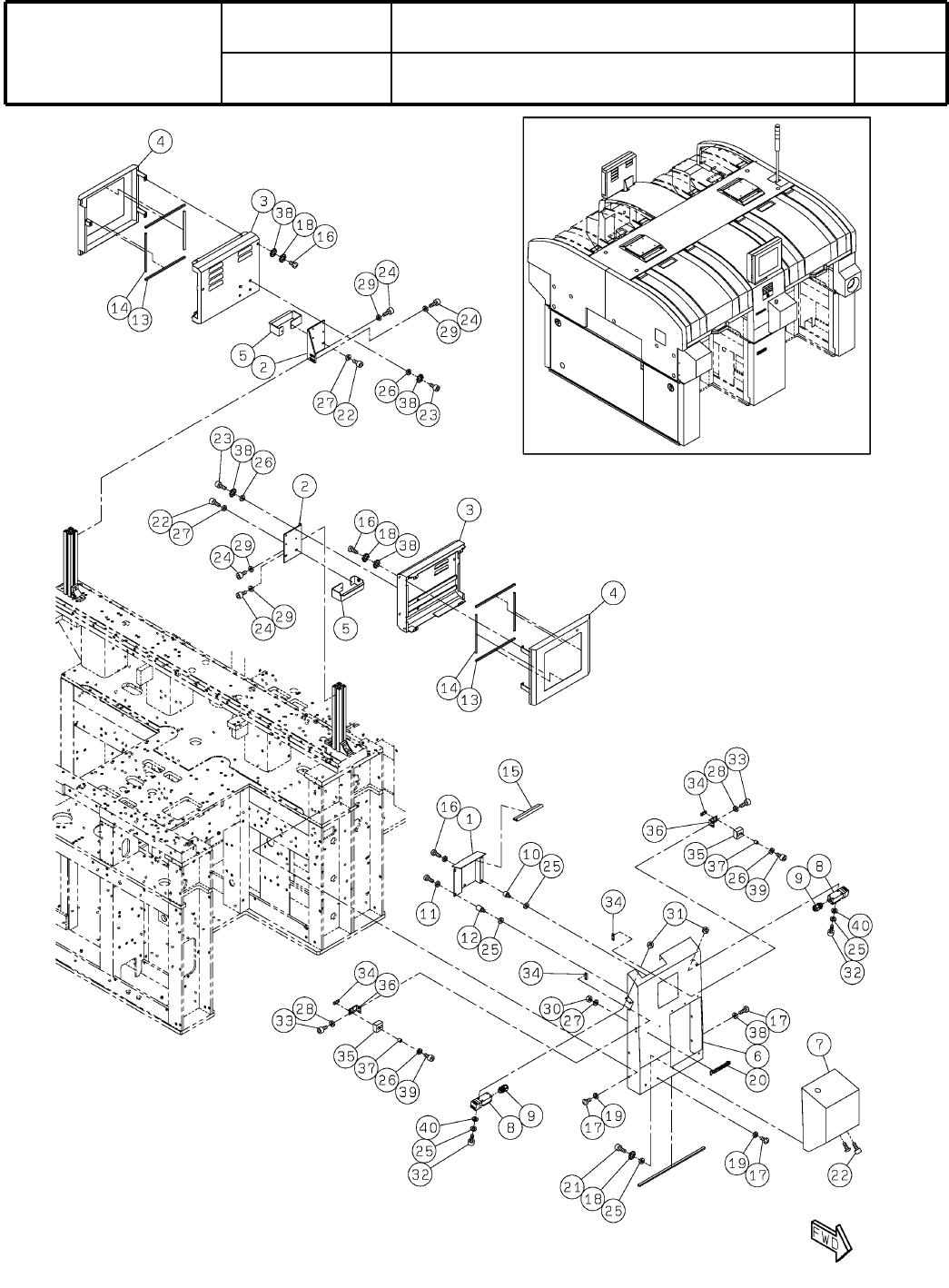

4-D
全
体
カバー
Whole Cover
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610090855AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M35
( KN610090855AA-13-4 )
Ref
No.
Remarks
R
1
Q'ty
4-D
全
体
カバー
Whole Cover
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610090855AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COVER
1
1 N210006136AA
BRACKET
2
2 N210043233AC
COVER
2
3 N210027682AA
COVER
2
4 N210023272AA
COVER
2
5 N210123689AB
COVER
1
6 N210118819AB
COVER
1
7 N210111376AA
SWITCH
2
8 N510015338AA
S
D4NS-1BF
JOINT
2
9 KXF06F4AA00 53015030-WM
SPACER
2
10 KXF01AAAA00 BSU-415
WASHER
2
11 KXF0DYNPA00 WSSB6-4-2
SPACER
2
12 KXF06PVAA00 BSU-425
PACKING
4
13 KXF0DKJAA00 UC-300286(DA 0DKJA)
PACKING
4
14 KXF0DKKAA00 UC-300286(DA 0DKKA)
TRIM
1
15 KXF0E32EA00 4100-B-3X16C
SCREW
10
16 N510018279AA
Cross recessed Truss head machine screw M4X6-4.8 A2J (Trivalent)
SCREW
6
17 N510018302AA
Cross recessed Truss head machine screw M5X8-4.8 A2J (Trivalent)
WASHER
11
18 N510018762AA
Toothed lock washer 4 External toothed Steel Unichrome white (Trivalent)
WASHER
4
19 N510013725AA TM-147-3V
MEIBAN
1
20 KXF0DXPLA00 P-18(screw)
BOLT
5
21 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
20
22 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
8
23 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
4
24 N510017470AA
Hexagon socket head cap screw M8X16-10.9 A2J (Trivalent)
WASHER
13
25 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
12
26 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
6
27 N510020099AA Thick washer for M4
WASHER
4
28 N510020100AA Thick washer for M5
WASHER
4
29 N510020102AA Thick washer for M8
NUT
2
30 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
NUT
4
31 N510022614AA Domed cap nut Type-3 M4-4T A2J (Trivalent)
BOLT
4
32 N510017361AA
Hexagon socket head cap screw M4X30-10.9 A2J (Trivalent)
BOLT
4
33 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BAR
4
34 N210049616AA
STOPPER
2
35 N210049617AB
BRACKET
2
36 N210049615AC
SPACER
4
37 N510020966AA CB-512E
WASHER
10
38 N510018765AA
Toothed lock washer 5 External toothed Steel Unichrome white (Trivalent)
BOLT
4
39 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
WASHER
4
40 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
M36
--
( KN610090855AA-13-4 )

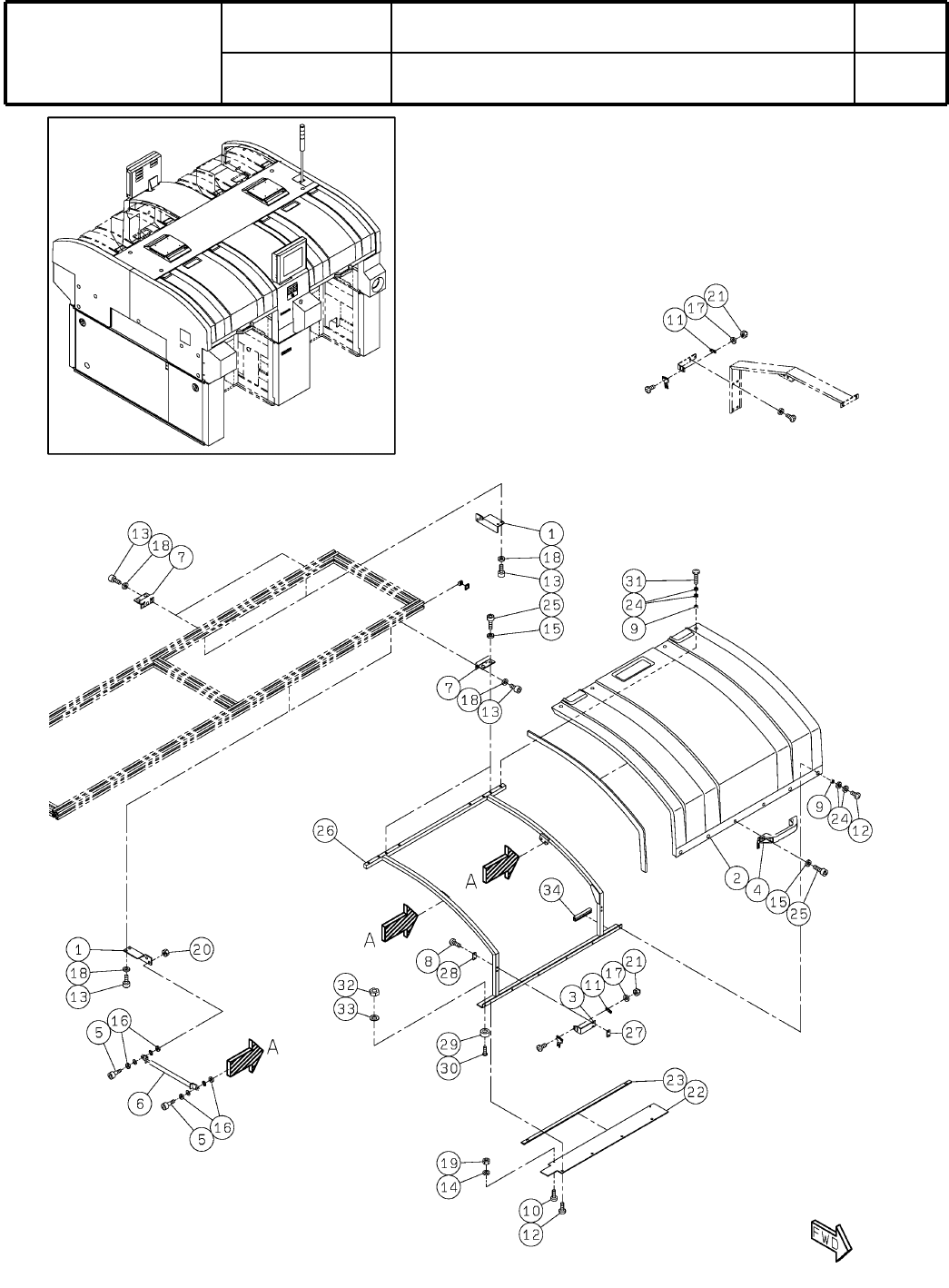

4-E
全
体
カバー
Whole Cover
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610090855AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M37
( KN610090855AA-13-5 )
