Ref No. Remark s R 1 Q'ty 69-A 固 定 フィー ダ Fixed Feeder ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット品 番 Kit Name キット名称 N610024045AA Part Nam e 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 BASE 1 1 N610030089AC FILM…
69-A
固
定
フィーダ
Fixed Feeder
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610024045AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
S219
( KN610024045AA-19-1 )
Ref
No.
Remarks
R
1
Q'ty
69-A
固
定
フィーダ
Fixed Feeder
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610024045AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BASE
1
1 N610030089AC
FILM
5
2 N610056681AB
STOPPER
1
3 N210129516AB
STOPPER
1
4 N210129517AB
GUIDE
21
5 N210092714AA
GUIDE
21
6 N210092715AA
COVER
1
10 N210077260AB
BRACKET
2
11 N210059710AA
BRACKET
1
12 N210064292AA
CHUTE
1
18 N210035437AA
CHUTE
1
19 N210047426AA
PIN
4
20 KXF02YTAA00 MS6-25
PIN
84
21 KXF0CXLAA00 1017003-30010
WASHER
8
28 N210143841AB
PIN
21
29 N510013852AA 1017003-60025
BOLT
42
31 N510017316AA
Hexagon socket head cap screw M3X20-10.9 A2J (Trivalent)
BOLT
6
32 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
3
33 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
4
35 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
8
36 N510017438AA
Hexagon socket head cap screw M6X30-10.9 A2J (Trivalent)
BOLT
6
37 N510017476AA
Hexagon socket head cap screw M8X35-10.9 A2J (Trivalent)
SCREW
4
39 N510018258AA
Cross recessed Truss head machine screw M4X10-4.8 A2S (Trivalent)
WASHER
4
41 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
4
42 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
7
43 N510020099AA Thick washer for M4
NUT
4
45 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
COVER
1
46 N210051459AA
WASHER
4
47 N510013724AA TM-147-2V
SCREW
4
48 N510018282AA
Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent)
POST
1
54 N510017148AA LSBGT13-105-M8-N4
COVER
1
57 N210060009AD
SCREW
2
58 N510018104AA Pan head machine screw Cross recessed M2X4
S220
--
( KN610024045AA-19-1 )

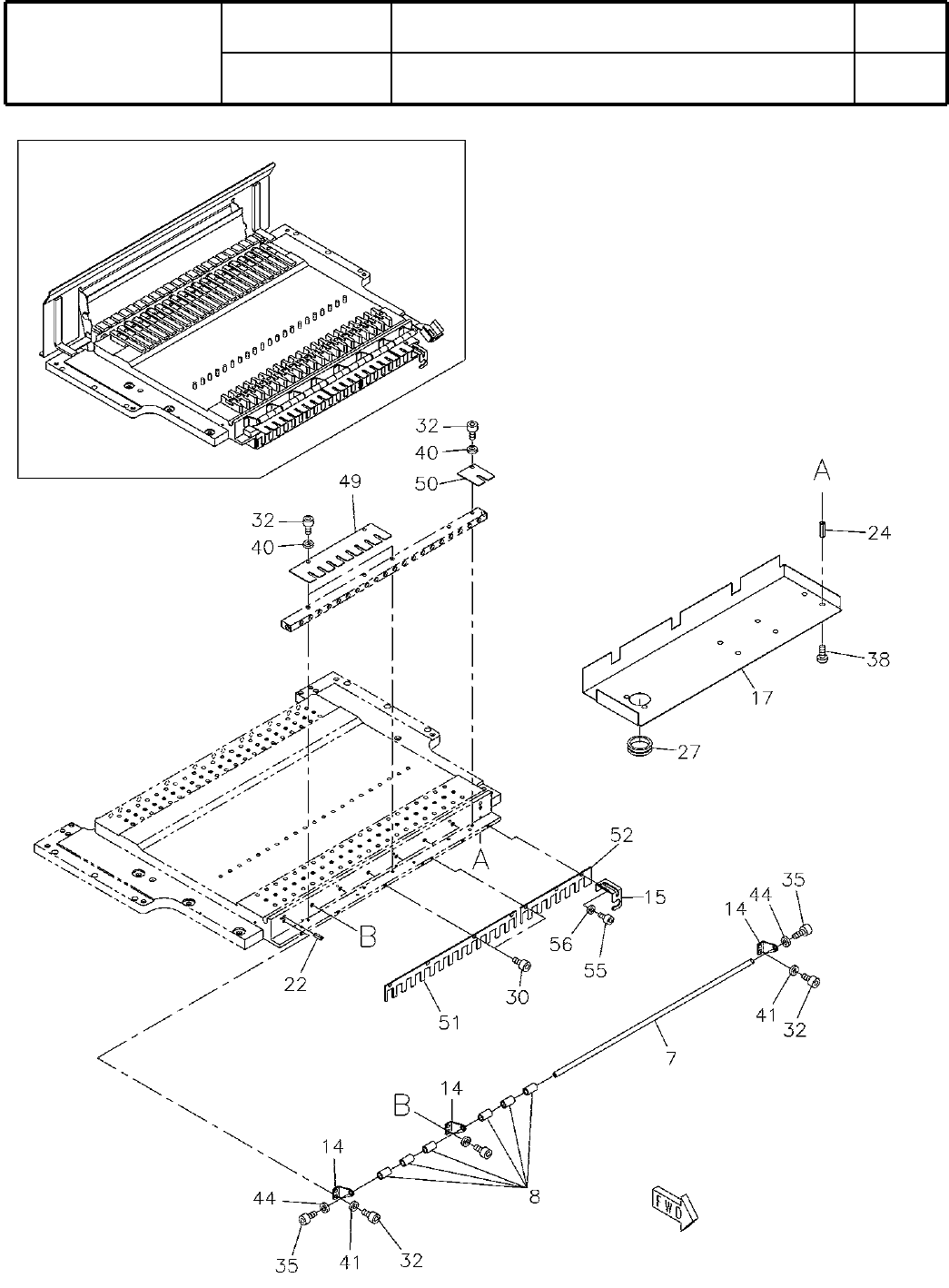

69-B
固
定
フィーダ
Fixed Feeder
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610024045AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
S221
( KN610024045AA-19-2 )
