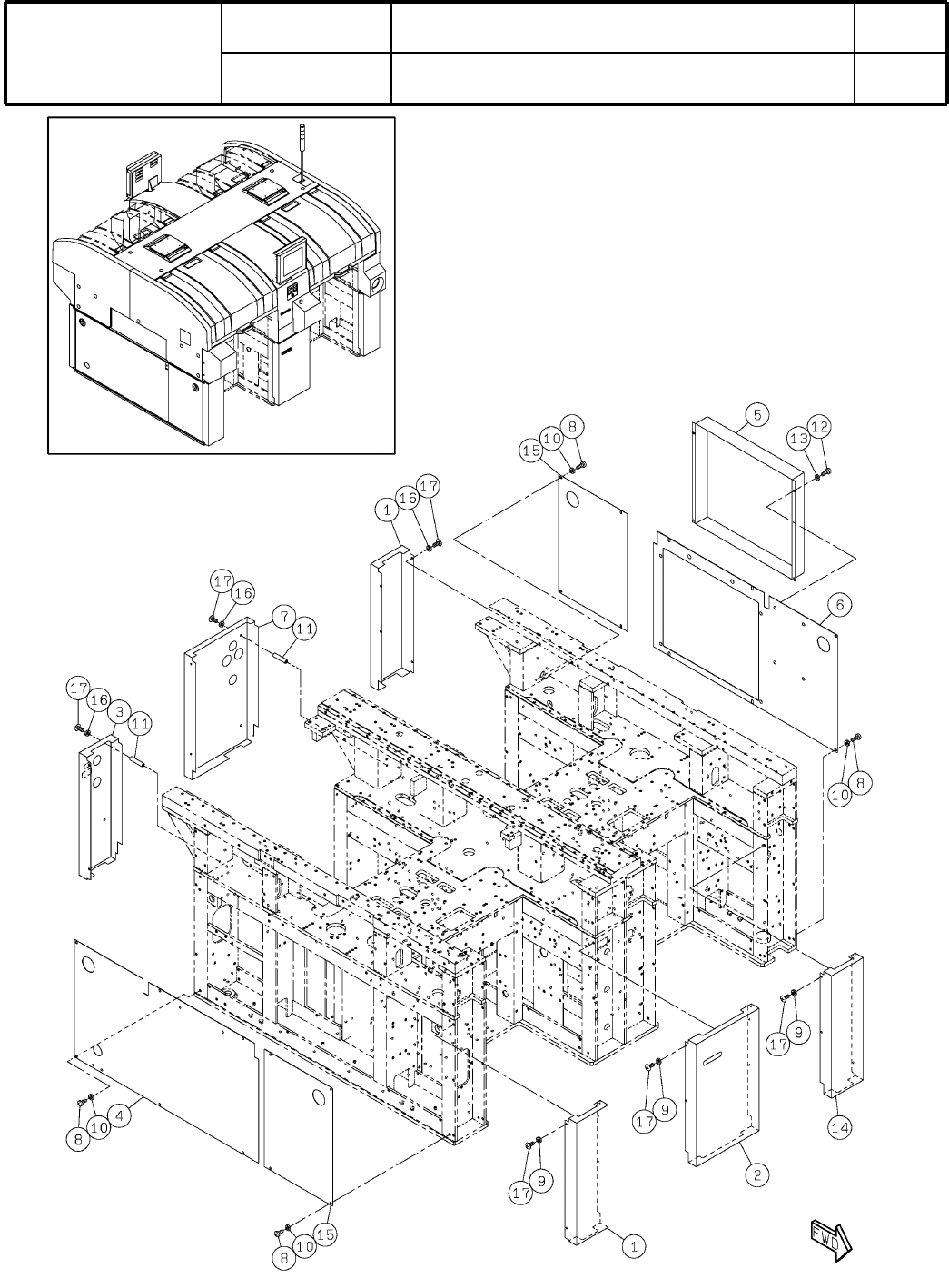

4-B 全 体 カバー W hole Cover パーツレイアウト Kit No. キット品 番 Kit N a me キット名称 N610090855AA ｾｸｼｮﾝN o. PARTS LAYOUT Section No. - - M31 ( KN610090855AA-13-2 )
Ref
No.
Remarks
R
1
Q'ty
4-A
全
体
カバー
Whole Cover
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610090855AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COVER
2
1 N210045327AA
S
COVER
2
2 N210045328AA
S
BRACKET
2
3 N210045329AB
BRACKET
2
4 N210045330AA
COVER
2
5 N610117238AA
S
COVER
2
6 N610117239AA
S
COVER
2
7 N210045333AA
COVER
2
8 N210045334AA
S
MAGNET
6
9 KXF0CS8AA00 C-54-2-black
URETHANE
4
10 N510030817AA 87URWH12-8-5
SPACER
4
11 N510017097AA CB-405E
WASHER
8
12 N510018469AA
Iron round plain washer4X10X1.0 A2J (Trivalent)
SCREW
12
13 N510018233AA
Cross recessed Truss head machine screw M3X10-4.8 A2S (Trivalent)
SCREW
8
14 N510018280AA
Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent)
SCREW
14
15 N510018283AA
Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent)
SCREW
8
16 N510018258AA
Cross recessed Truss head machine screw M4X10-4.8 A2S (Trivalent)
SCREW
4
17 N510018266AA
Cross recessed Truss head machine screw M4X16-4.8 A2S (Trivalent)
BOLT
8
18 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
4
19 N510017424AA
Hexagon socket head cap screw M6X10-10.9 A2J (Trivalent)
WASHER
12
20 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
8
21 N510020098AA Thick washer for M3
WASHER
8
22 N510020100AA Thick washer for M5
NUT
12
23 N510017849AA
Hexagon nut Type-1 Best class M3-6H-4T A2J (Trivalent)
NUT
16
24 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
NUT
4
25 N510017867AA
Hexagon nut Type-1 Best class M6-6H-4T A2J (Trivalent)
COLLAR
4
26 N210071617AA
BRACKET
2
27 N210075829AA
DOG
2
28 N210075609AA
BRACKET
2
29 N210118913AA
SCREW
4
30 N510018266AA
Cross recessed Truss head machine screw M4X16-4.8 A2S (Trivalent)
BOLT
4
31 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
WASHER
8
32 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
M30
--
( KN610090855AA-13-1 )
4-B
全
体
カバー
Whole Cover
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610090855AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M31
( KN610090855AA-13-2 )
Ref
No.
Remarks
R
1
Q'ty
4-B
全
体
カバー
Whole Cover
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610090855AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COVER
2
1 N210130289AA
COVER
1
2 N210130290AA
COVER
1
3 N210130291AA
COVER
1
4 N210049720AA
COVER
1
5 N210130294AA
COVER
1
6 N210049697AA
COVER
1
7 N210130292AA
SCREW
20
8 N510018314AA
Cross recessed Truss head machine screw M6X8-4.8 A2J (Trivalent)
WASHER
12
9 N510013725AA TM-147-3V
WASHER
20
10 N510013896AA TM-147-4V
SPACER
6
11 N510015102AA PLSBGT13-122.5
BOLT
4
12 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
WASHER
4
13 N510020099AA Thick washer for M4
COVER
1
14 N210130293AA
COVER
2
15 N210045358AA
WASHER
12
16 N510018765AA
Toothed lock washer 5 External toothed Steel Unichrome white (Trivalent)
SCREW
24
17 N510018286AA
Cross recessed Truss head machine screw M5X12-4.8 A2J (Trivalent)
M32
--
( KN610090855AA-13-2 )
