High Speed Multi T ray Feeder STF-100NA 用户手册 11-6 No. TECHWIN Part No. JINYOUNG Part No. Part Name Q'ty T ype ( Specificati on) Remark 1 FC09-006717A JW100N-MMA0 3-014 SOLENOID BRACK ET(TOP DOO R) 1 64*22*17.5 1/1 2…
A
/S
器具资材信息
11-5

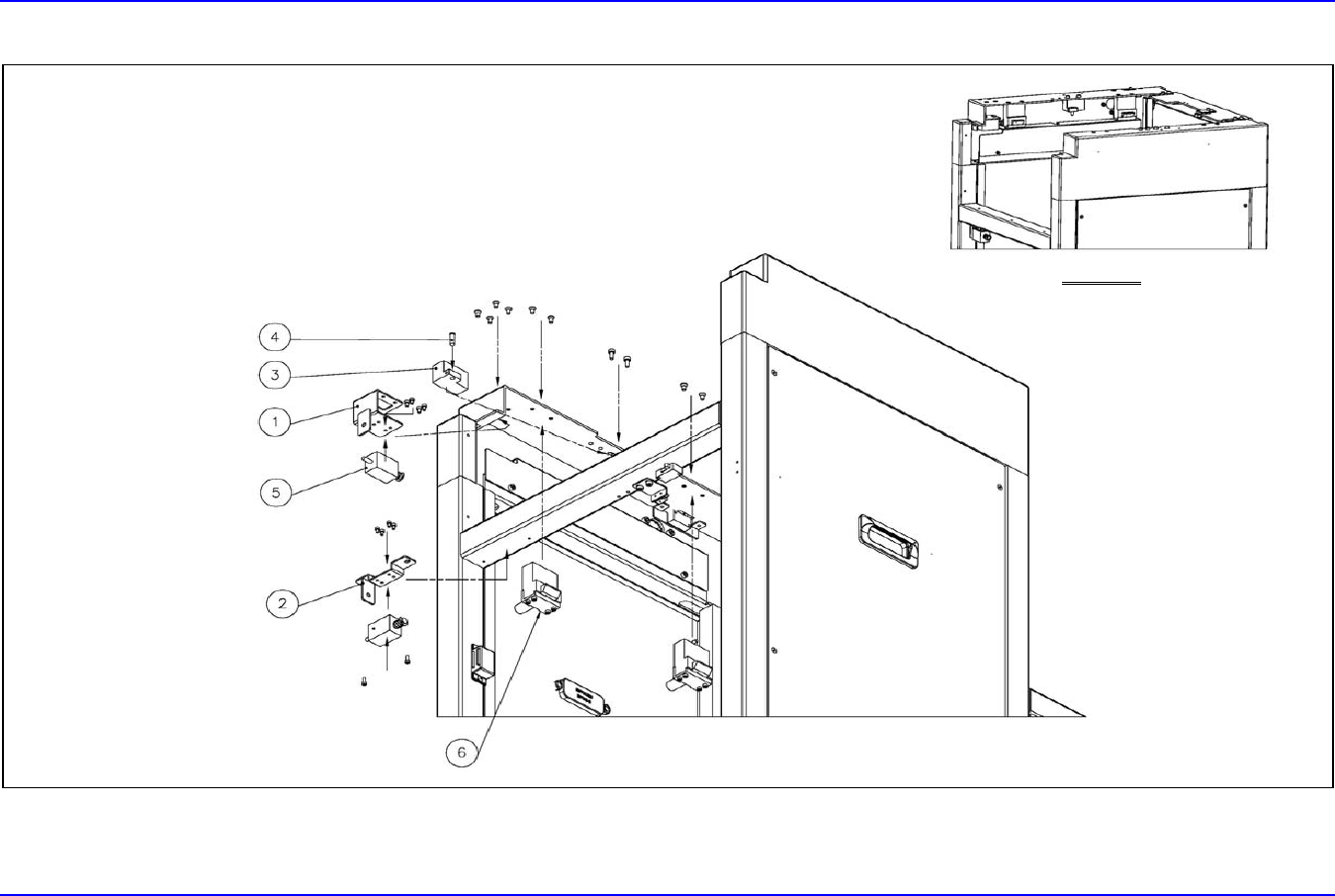

11.1.3. Main body Ass'y - Solenoid
组装完成图
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-6
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1 FC09-006717A JW100N-MMA03-014 SOLENOID BRACKET(TOP DOOR) 1 64*22*17.5 1/1
2 FC09-006720A JW100N-MMA02-034 SOLENOID BRACKET(FRONT DOOR) 1 85.5*20*37*2T 1/1
3 FC09-006718A JW100N-MMA03-007 PIN BRACKET 2 40*35*26
4 AM03-018612A JW100N-MMA03-008 GUIDE PIN 2
∅6*20L
5 EP07-001016A KJ_100NA_E_P018 DOOR SOLENOID 2 DS08ASC24
6 EP07-001017A KJ_100NA_E_P019 ASS'Y BUFFER SOLENOID-100NA 4 M13034L
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-7

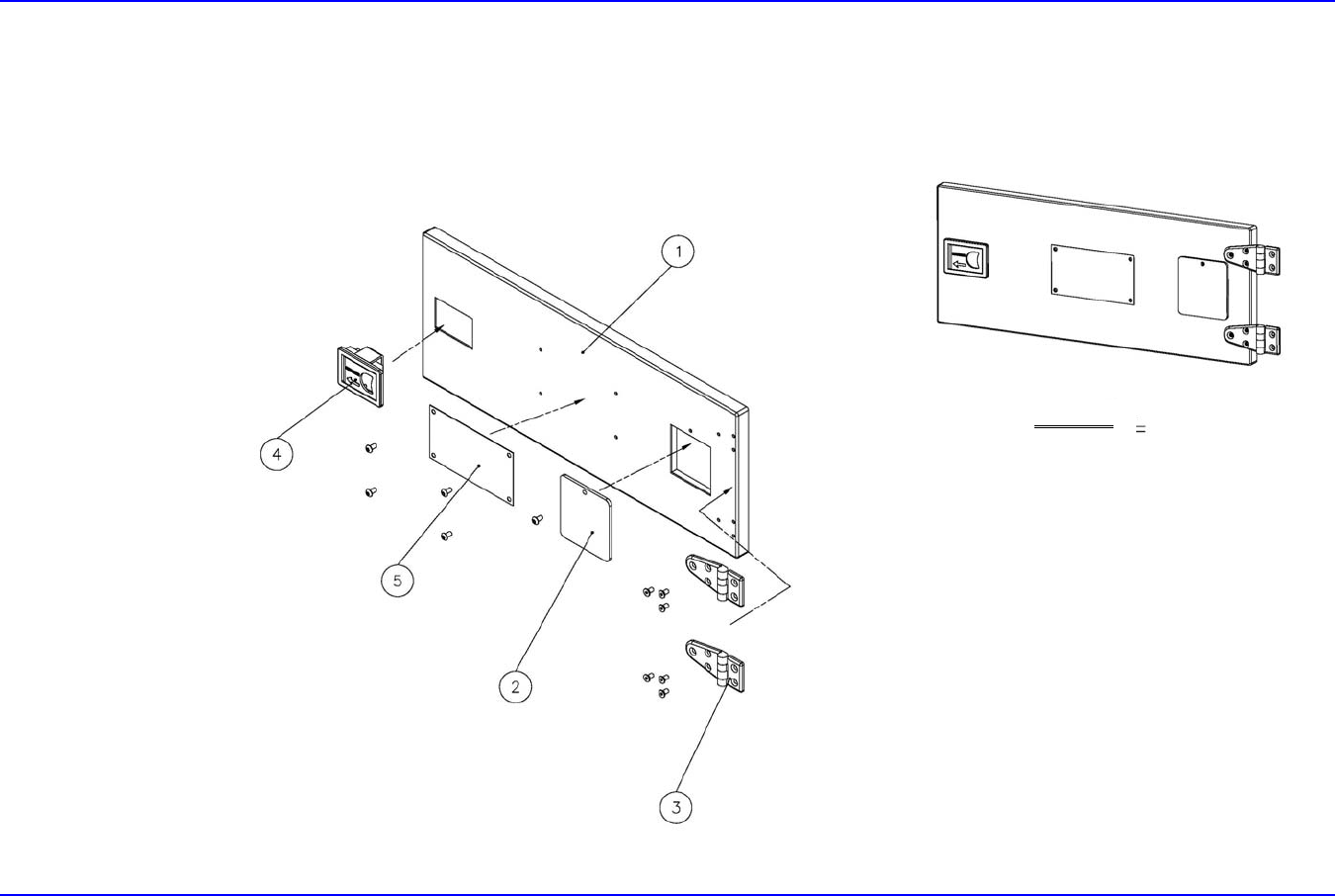

11.1.4. Main body Ass'y -Bottom Door
组装完成图
