High Speed Multi T ray Feeder STF-100NA 用户手册 11-38 No. TECHWIN Part No. JINYOUNG Part No. Part Name Q'ty T y pe ( Specification) Remark 1 FC15-004380A JW1 00N-MFE01-022 P AR TITION C OVER 1 7 86*161*12*2T 2 FC15-004…
A
/S
器具资材信息
11-37

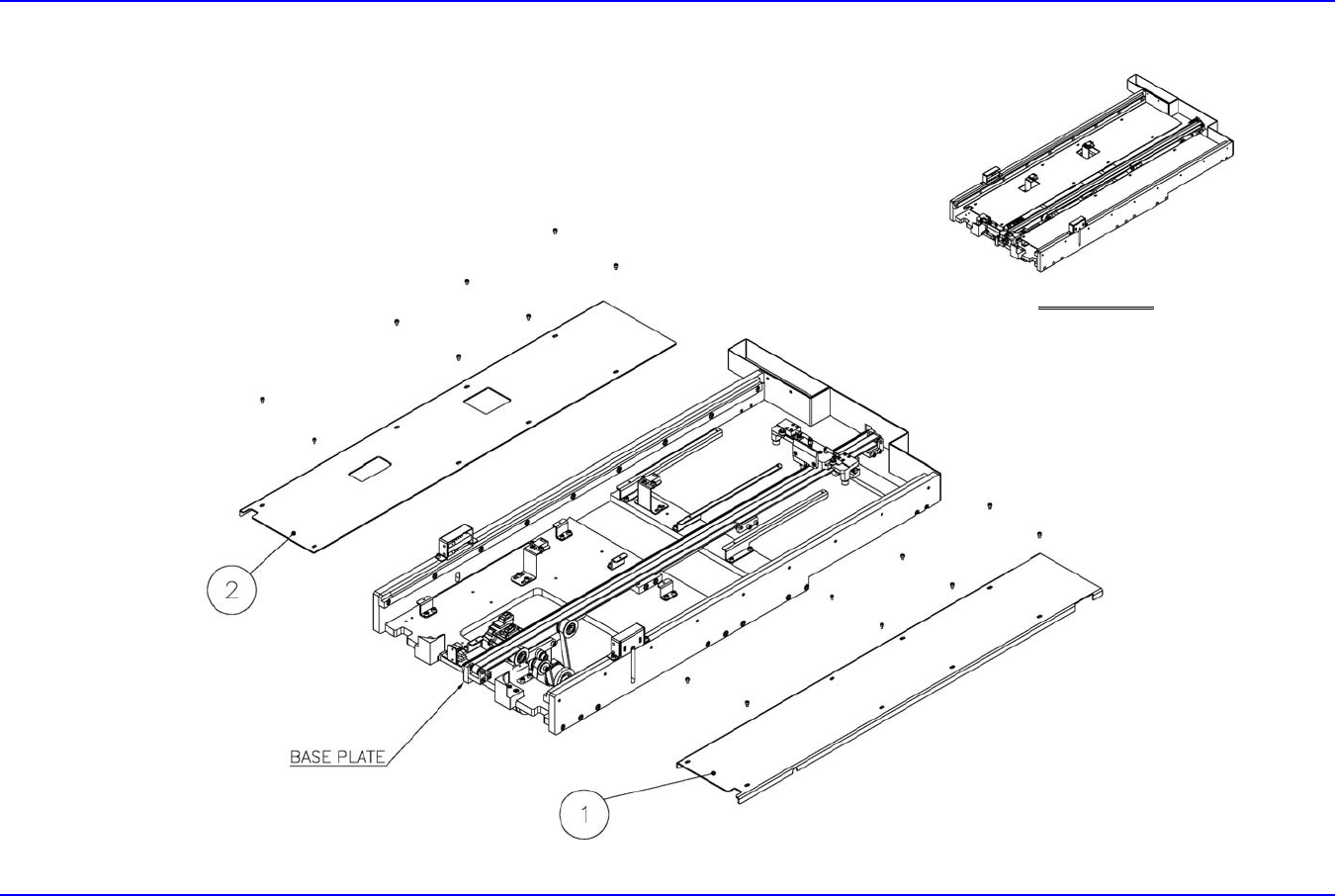

11.1.19. Feeder Ass'y - Partition Cover
组装完成图 前部
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-38
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1
FC15-004380A JW100N-MFE01-022 PARTITION COVER 1 786*161*12*2T
2
FC15-004163A JW100N-MFE01-021 PARTITION COVER 1 786*137*2T
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-39

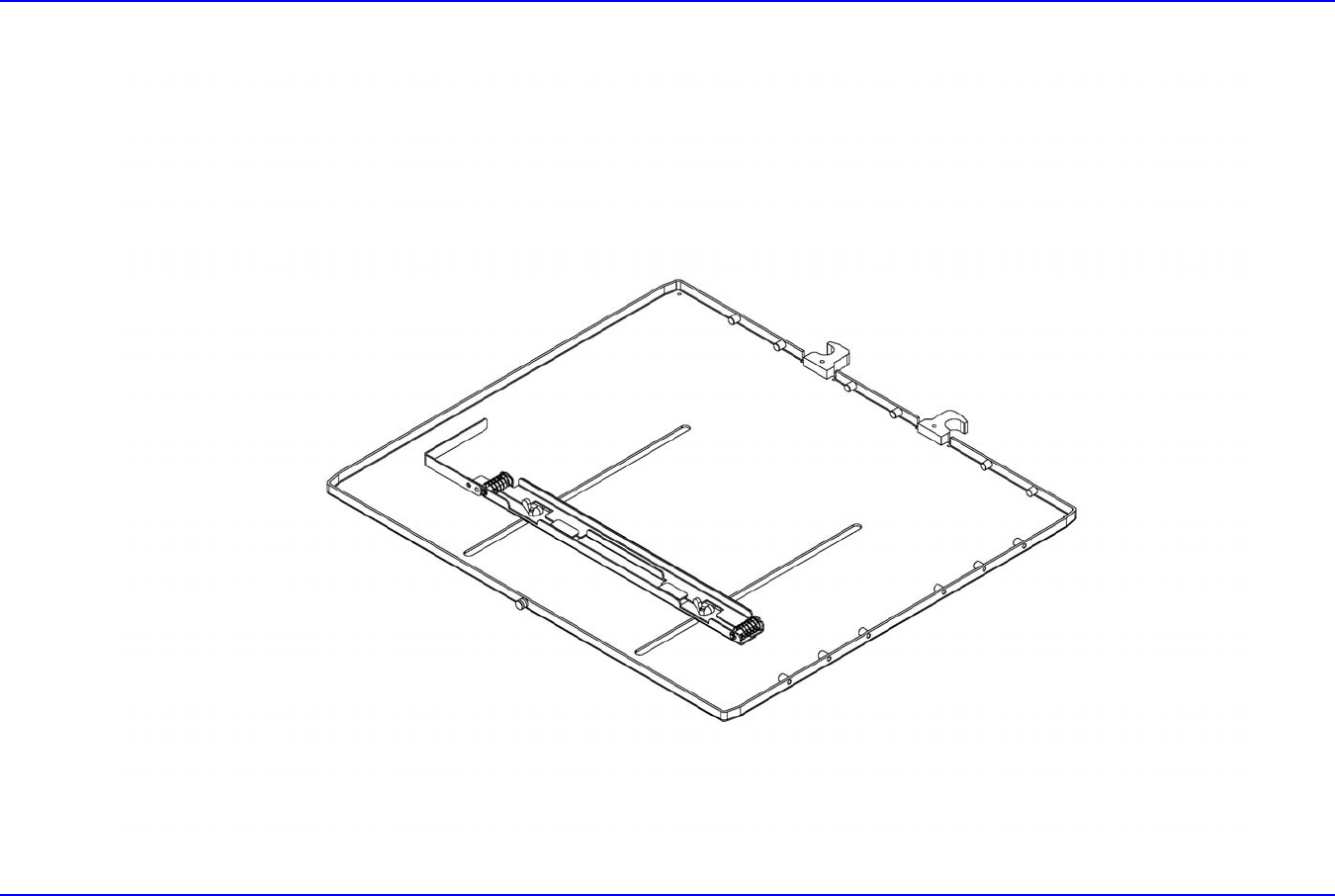

11.1.20. Pallet Ass'y
