High Speed Multi T ray Feeder STF-100NA 用户手册 11-66 No. TECHWIN Part No. JINYOUNG Part No. Part Name Q'ty T ype ( Specificati on) Remark 1 JW100 N-MCR01-001 BASE PLATE 1 3 83*303*6T 2 FC29-006428A JW100N-MCR01-0 02 G…

器具资材信息

11-65

11.1.33. Door Ass'y - Front Door

组装完成图

SMT顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-66

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 JW100N-MCR01-001 BASE PLATE 1 383*303*6T

2 FC29-006428A JW100N-MCR01-002 GUIDE 2 298*8*2T

3 FC29-006417A JW100N-MCR01-003 GUIDE 1 288*8*2T

4 FC30-004131A JW100N-MCR01-004 SIDE PLATE 2 218*18.5*3T

5 MC06-001012A JW100N-MCR01-005 BUSH 2 Φ24*10*8L

6 FC29-006429A JW100N-MCR01-006 STOPPER 2 20*14*6.5

7 MC06-001011A JW100N-MCR01-007 BUSH 2 Φ24*10*8L

8 JW100N-MCR01-101 PIN 1

∅3*15L

SMT顶级人脉圈平台资料下载

器具资材信息

11-67

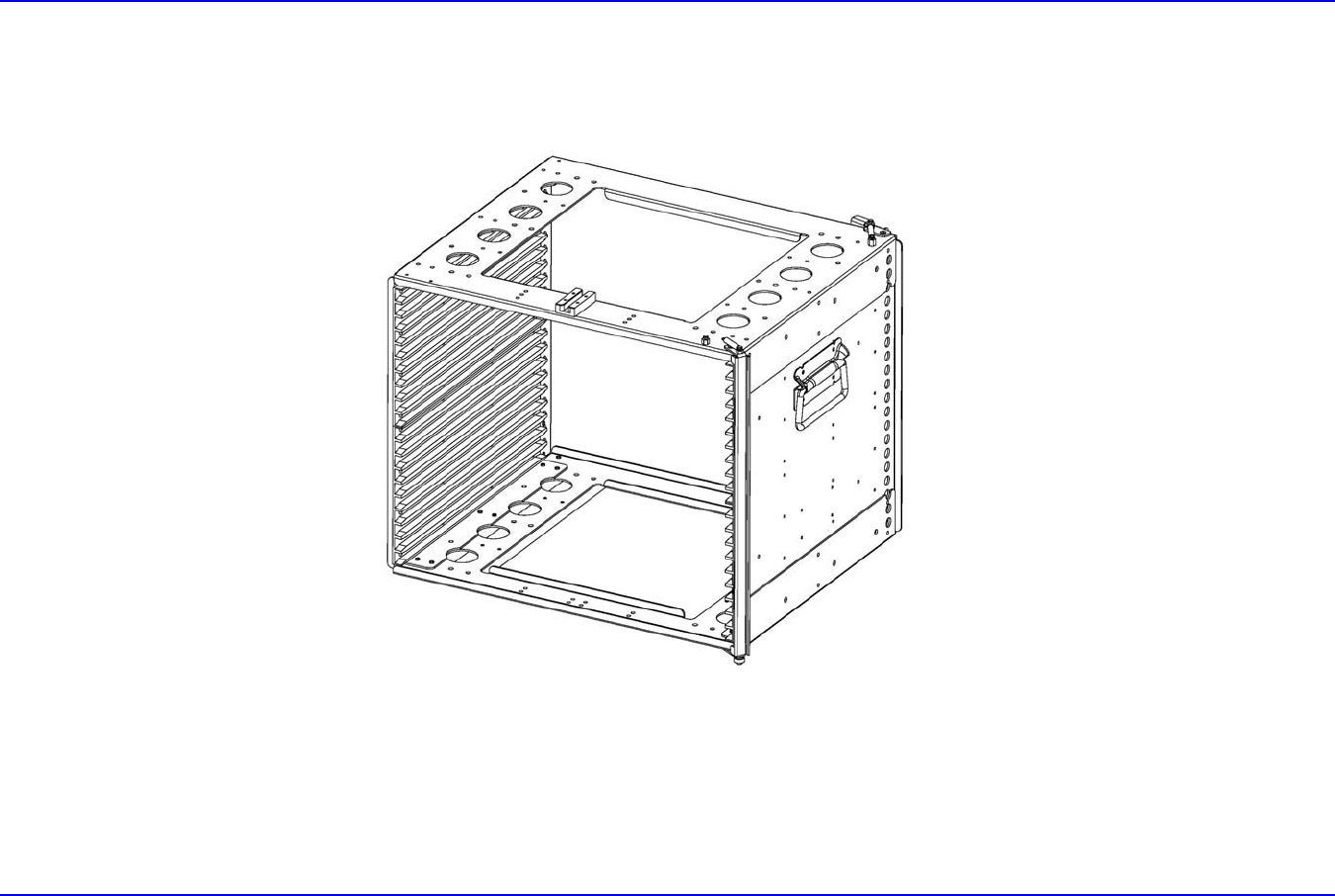

11.1.34. Magazine Ass'y
