A /S 器具资材信息 11 - 2 9 11.1.15. Feeder Ass'y - Feeder Base 组装完成图前部 SMT 顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-28

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 JW100N-MFE01-004 LM BRACKET 1 881*30*10

2 FC30-004424A JW100N-MFE01-006 LOCKING PLATE 1 50*20*12

3 MC19-002168A JW100N-MFE01-011 BEARING SHAFT 2

∅12.5*20.5

4 FC18-003121A JW100N-MFE01-026 SPACER 2

∅12*2T

5 AM03-017456A JW100N-MFE01-036 TIMING PULLEY 2 3GT, 28Z

6 FC29-006413A JW100N-MFE01-101 LM GUIDE 1 MR9MN-RAIL(880mm)

7 FC07-003047A JW100N-MFE01-103 LM BLOCK 1 MR9MN

8 J6601003A KJ_100NE_M_B011 BALL BEARING 698ZZ-STF100NA 4 698ZZ

9 JW100N-MFE01-121 PIN 6

∅3*8L

SMT顶级人脉圈平台资料下载

器具资材信息

11-29

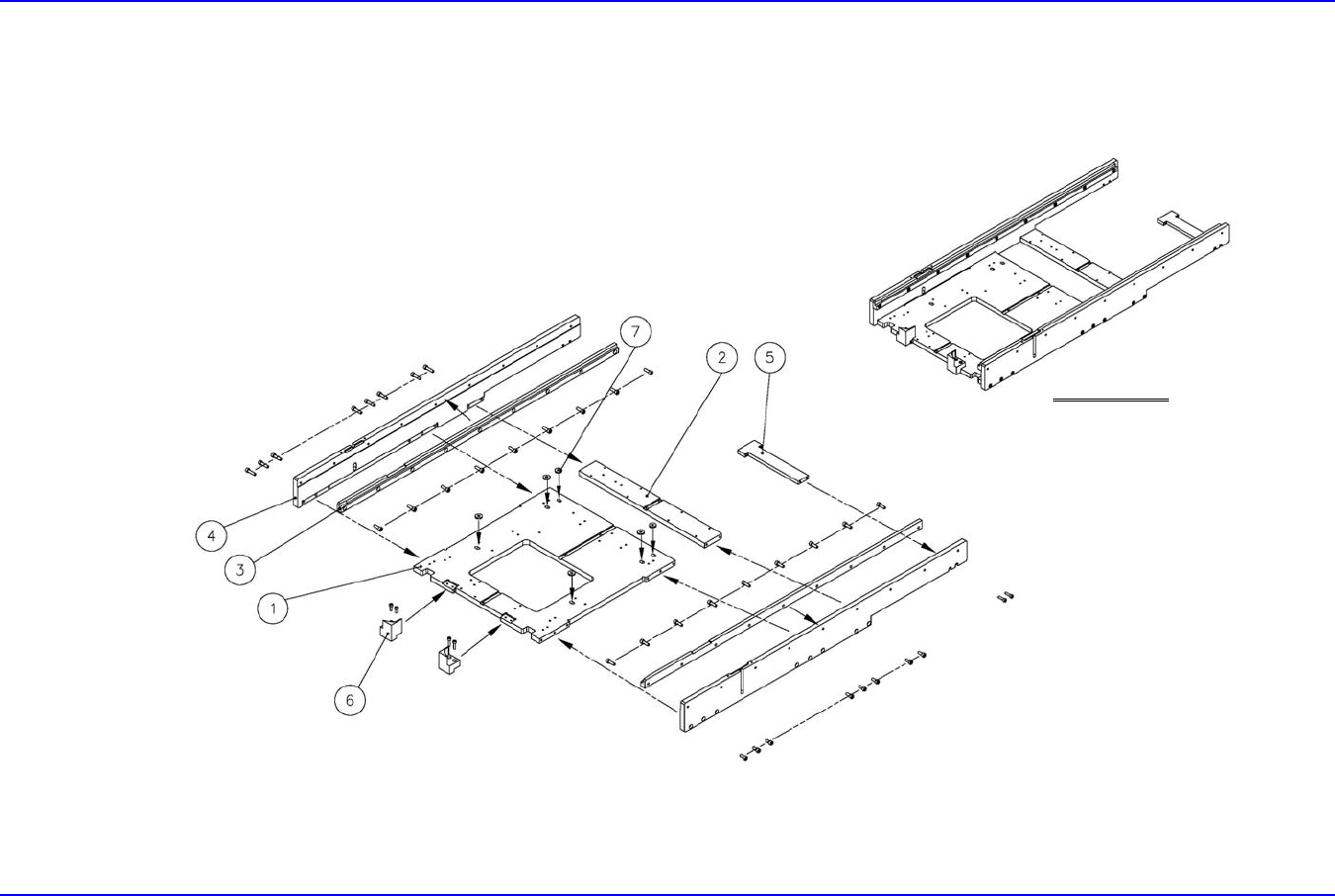

11.1.15. Feeder Ass'y - Feeder Base

组装完成图前部

SMT顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-30

No.

TECHWIN

Part No.

JIYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 JW100N-MFE01-001 BASE PLATE 1 402*372*12

2 JW100N-MFE01-002 BASE PLATE 1 372*50*12

3 FC29-006420A JW100N-MFE01-003 PALLET GUIDE 2 820*20*12

4 FC30-004124A JW100N-MFE01-034 SIDE PLATE 2 836*74*12

5 FC30-004126A JW100N-MFE01-052 SUPPORT PLATE 1 170*50*8

6 FC09-006290A JW100N-MFE01-031 GUIDE WAY 2 32*32*41.5

7 AM03-018620A JW100N-MFE01-047 WASHER 6

∅18*3T
