11.1.27. Elevator Ass'y -LM Guide
组装完成图
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-54
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1 JW100N-MEL01-001 ROBOT PLATE 1 724*379*15
2 JW100N-MEL01-024 LM BLOCK 2 770*38*20
3 FC29-007021A JW100N-MEL01-025 STOPPER 1 40*40*30
4 FC29-007022A JW100N-MEL01-026 STOPPER 2 30*14*15
5 MC13-001008A JW100N-MEL01-106 LM GUIDE 2 SR20W2UUC0+760L
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-55

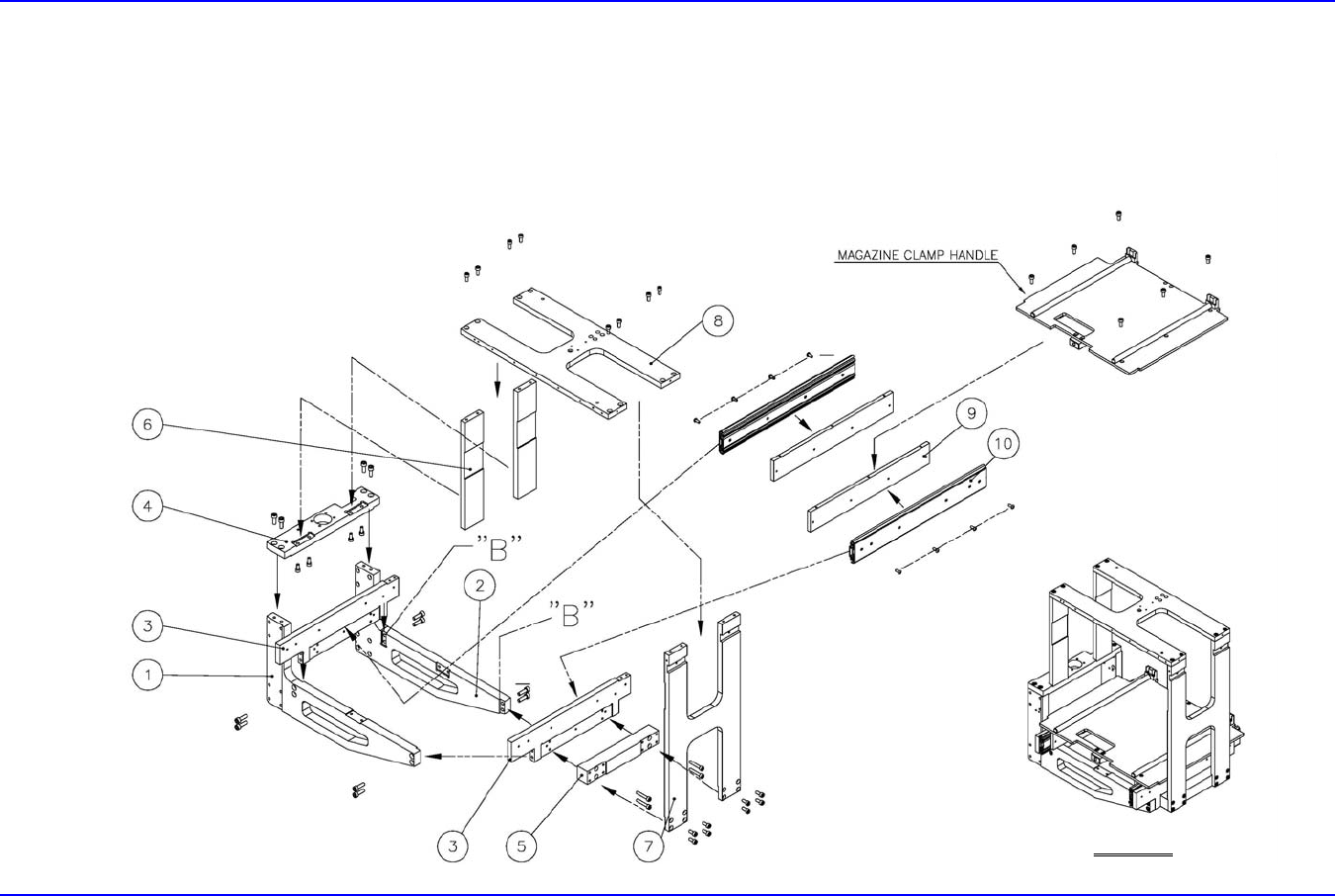

11.1.28. Elevator Ass'y -Body
