High Speed Multi T ray Feeder STF-100NA 用户手册 11-42 No. TECHWIN Part No. JINYOUNG Part No. Part Name Q'ty T y pe ( Specification) Remark 1 FC15-004156A JW100N-MEB01-0 01 BOTTOM COVER 1 2 38*164.5*80*1.2T 2 J W100N-ME…

器具资材信息

11-41

11.1.21. Motion Board Box

组装完成图

SMT顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-42

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 FC15-004156A JW100N-MEB01-001 BOTTOM COVER 1 238*164.5*80*1.2T

2 JW100N-MEB01-002

UPPER COVER

1 212.5*163*49.6*1.2T

3 JW100N-MEB01-003 SIDE COVER 2 162.9*38*11*1.2T

4 AM03-018614A JW100N-MEB01-004 FRONT COVER 1 164*26.5*11*1.2T

5 FC09-006272A JW100N-MEB01-006 BRACKET-STF100NA 2 38*35*10*3T

6 FC09-006791A JW100N-MEB01-007 SWITCH BRACKET 1 60*30*15*1.2T

7 RM01-003499A JW100N-MEB01-101 SLIDE RAIL 2 MIR-2010

8 FC29-007019A JW100N-MEB01-102 HANDLE 2 BYCS307-16

AM03-017283A KJ_100NA_E_B004

ASSY,BOARD-

MOTION_CONTROL_100NA

1 KJ-S01MBF00

10 AM16-001021A KJ_100NA_E_B002 ASSY,BOARD-IO-100NA 1 KJ_S01MOT00

SMT顶级人脉圈平台资料下载

器具资材信息

11-43

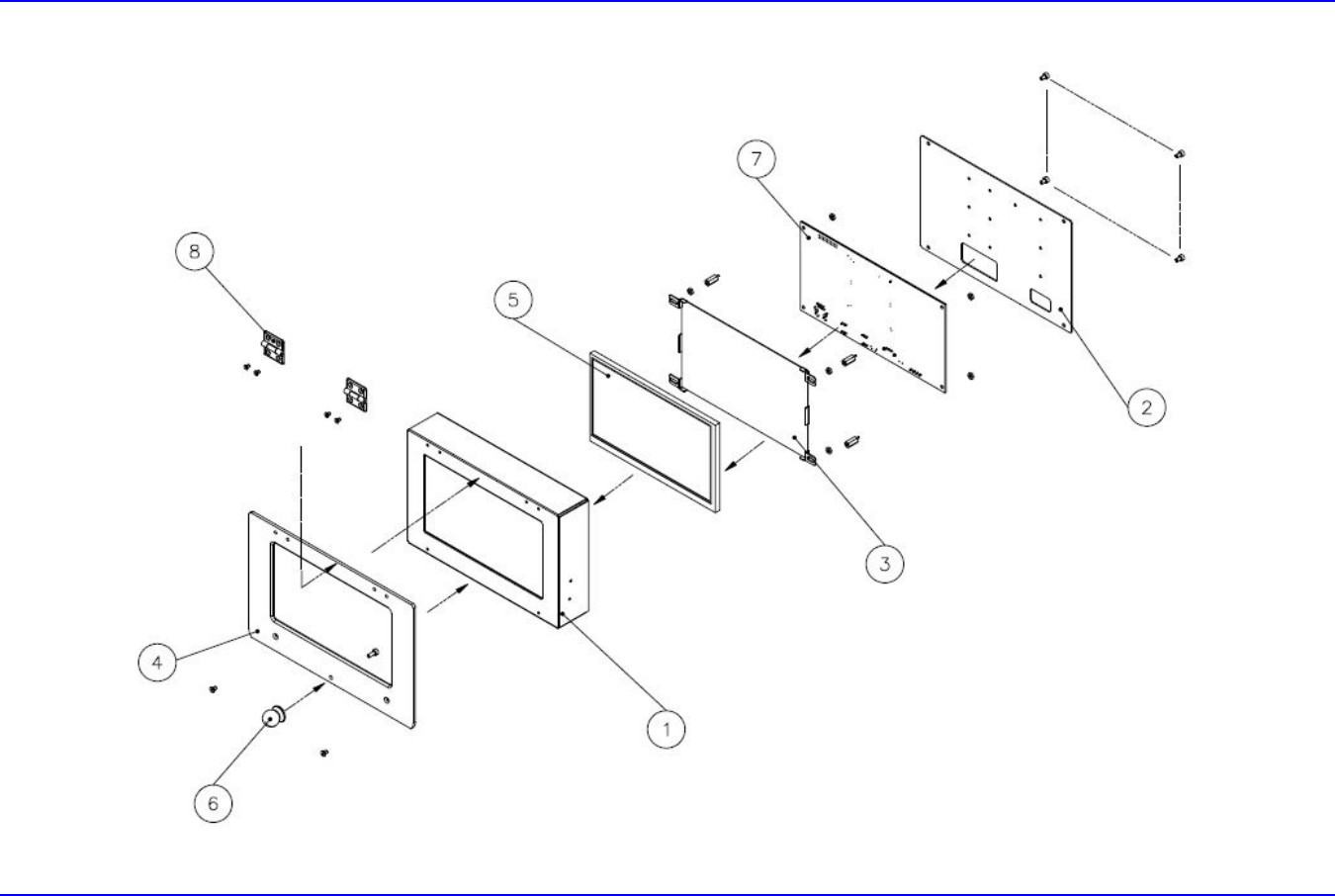

11.1.22. Monitor
