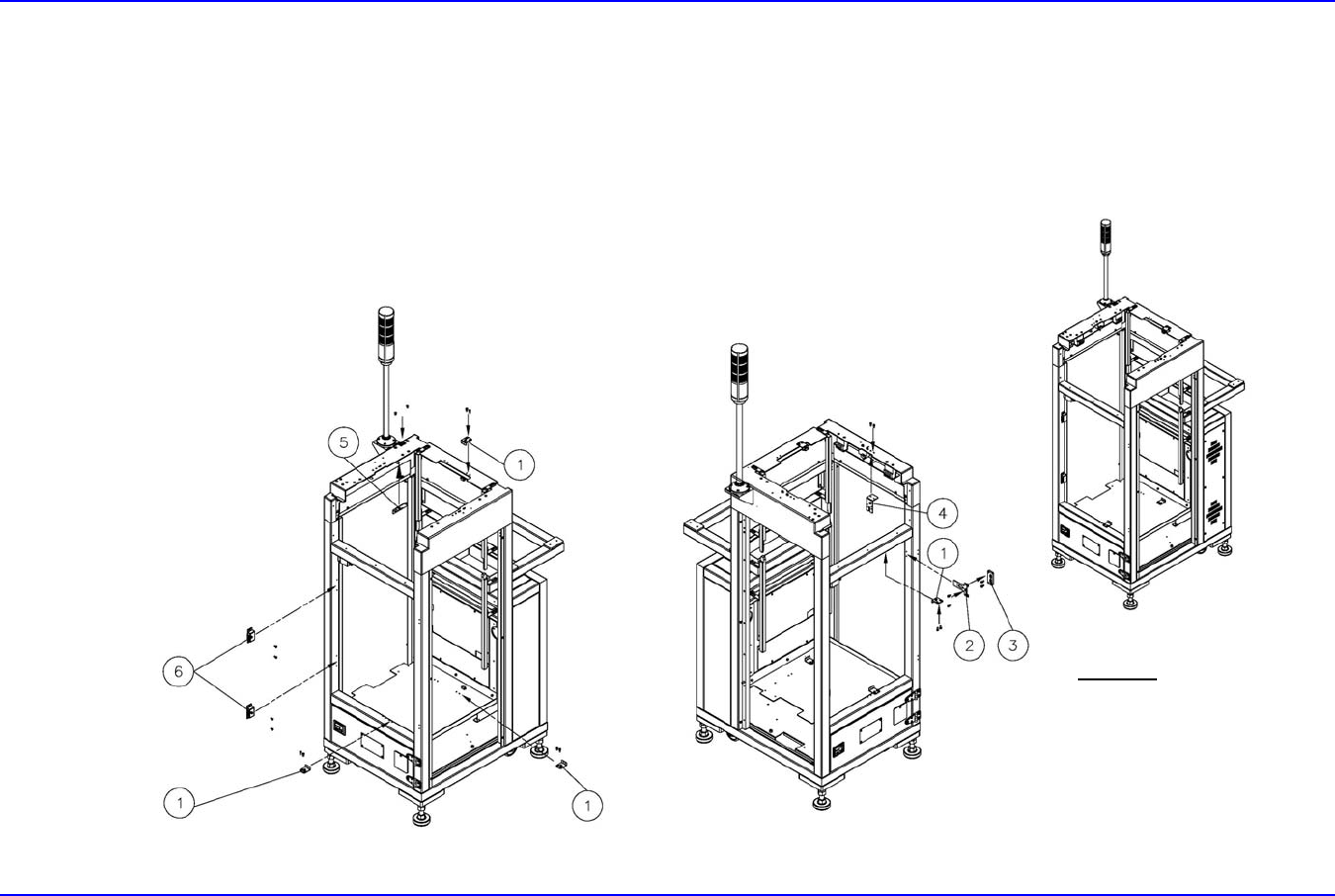

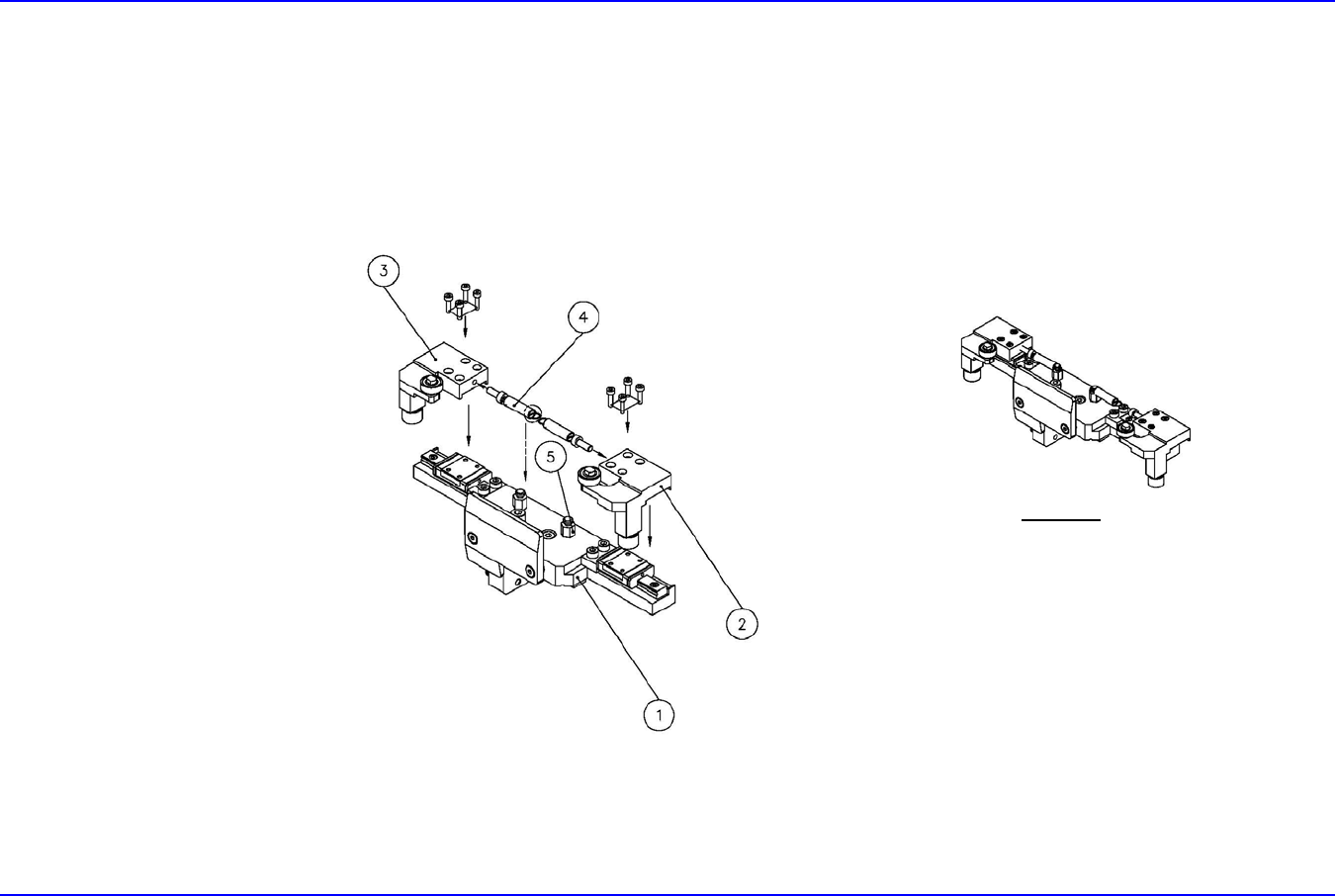

11.1.10. Main body Ass’y - Cover-4
组装完成图
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-20
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1
FC30-004425A JW100N-MMA02-028 SENSOR PLATE 4 32*25*12*1.6T
2
FC30-004427A JW100N-MMA02-029 SENSOR PLATE 1 75*54*1.6T
3
FC30-004422A JW100N-MMA02-040 SENSOR PLATE 1 54*25*6
4
FC30-004423A JW100N-MMA03-006 SENSOR PLATE 1 55*30*30*1.6T
5
FC30-004426A JW100N-MMA03-009 SENSOR PLATE 1 72*17*16*2T
6
FC12-001001A JW100N-MMA01-110 MAGNETIC CATCH 2 BY3-1-5
