A /S 器具资材信息 11 - 6 5 11.1.33. Door Ass'y - Front Door 组装完成图 SMT 顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-64

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 AM03-017460A JW100N-MMA04-001

ASSY, TRAY FEEDER-FRONT

DOOR_STF100NA

1 628*418*34*1.6T

2 FC09-006796A JW100N-MMA04-002 ACRYLIC BRACKET 1 452*192*1.6T

3 CM01-001012A JW100N-MMA04-003 ACRYL 1 452*192*3T

4 FC29-006403A JW100N-MMA04-101 PULL HANDLE 1 BY2-6

5 FC29-006436A JW100N-MMA04-102 HINGE 2 BYHS4073

SMT顶级人脉圈平台资料下载

器具资材信息

11-65

11.1.33. Door Ass'y - Front Door

组装完成图

SMT顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-66

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

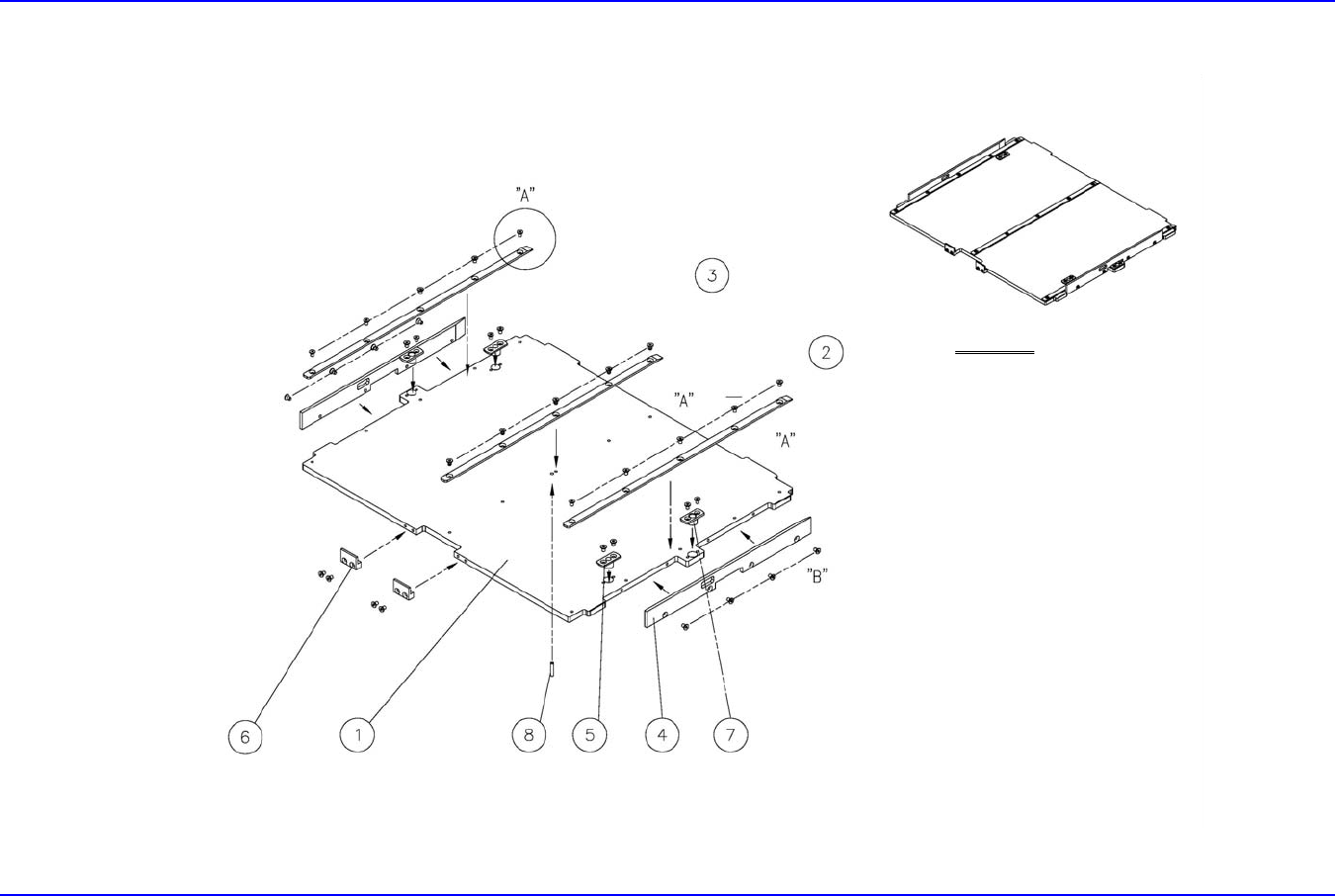

1 JW100N-MCR01-001 BASE PLATE 1 383*303*6T

2 FC29-006428A JW100N-MCR01-002 GUIDE 2 298*8*2T

3 FC29-006417A JW100N-MCR01-003 GUIDE 1 288*8*2T

4 FC30-004131A JW100N-MCR01-004 SIDE PLATE 2 218*18.5*3T

5 MC06-001012A JW100N-MCR01-005 BUSH 2 Φ24*10*8L

6 FC29-006429A JW100N-MCR01-006 STOPPER 2 20*14*6.5

7 MC06-001011A JW100N-MCR01-007 BUSH 2 Φ24*10*8L

8 JW100N-MCR01-101 PIN 1

∅3*15L
