High Speed Multi T ray Feeder STF-100NA 用户手册 11-44 No. TECHWIN Part No. JINYOUNG Part No. Part Name Q'ty T y pe ( Specification) Remark 1 FC09-006275A JW100N-MMO01 -002 MONITOR BRACKET 1 2 00*130*39*1T 2 AM03-01745 …

器具资材信息

11-43

11.1.22. Monitor

SMT顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-44

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 FC09-006275A JW100N-MMO01-002 MONITOR BRACKET 1 200*130*39*1T

2 AM03-017457A JW100N-MMO01-003

ASSY, TRAY FEEDER-MONITOR

COVER_STF100NA

1 198*128*1T

3 FC30-004127A JW100N-MMO01-004 LOCKING PLATE 1 192*102*4.5*0.8T

4 FC30-004128A JW100N-MMO01-005 FRONT PLATE 1 216*142*3T

5 CD06-001001A

KJ_100NA_E_P001 MONITOR,TOUCH SCREEN-100NA 1 AT070TN94 & Touch

6 FC29-006400A JW100N-MMO01-112 PULL HANDLE 1 BYC-15

7 EP10-001005A KJ_100NA_E_B001 ASSY,BOARD-IO-100NA 1 KJ_S01MMI00

8 FC29-006415A JW100N-MMO01-103 HINGE 2 BYHEB2330

SMT顶级人脉圈平台资料下载

器具资材信息

11-45

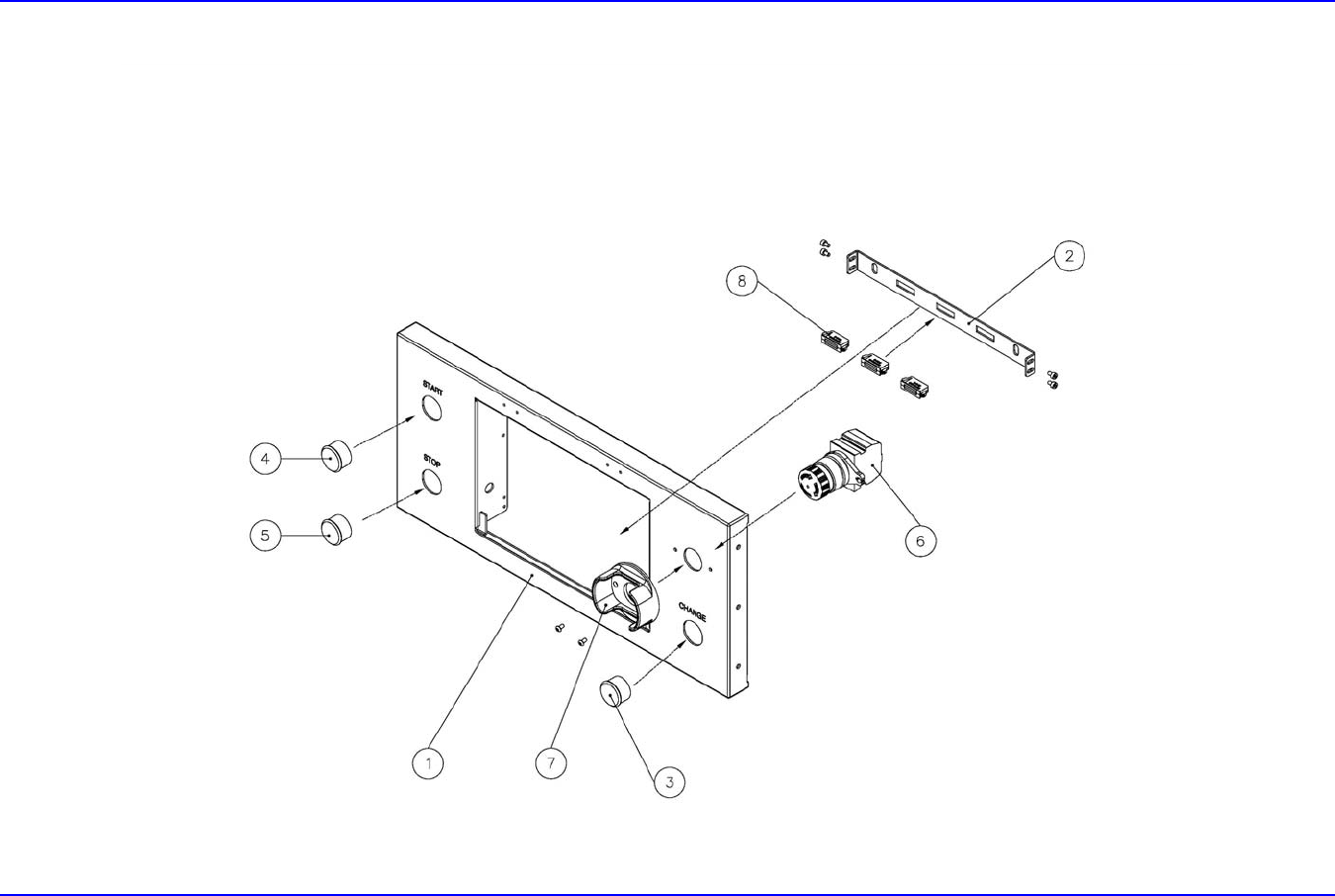

11.1.23. Switch
