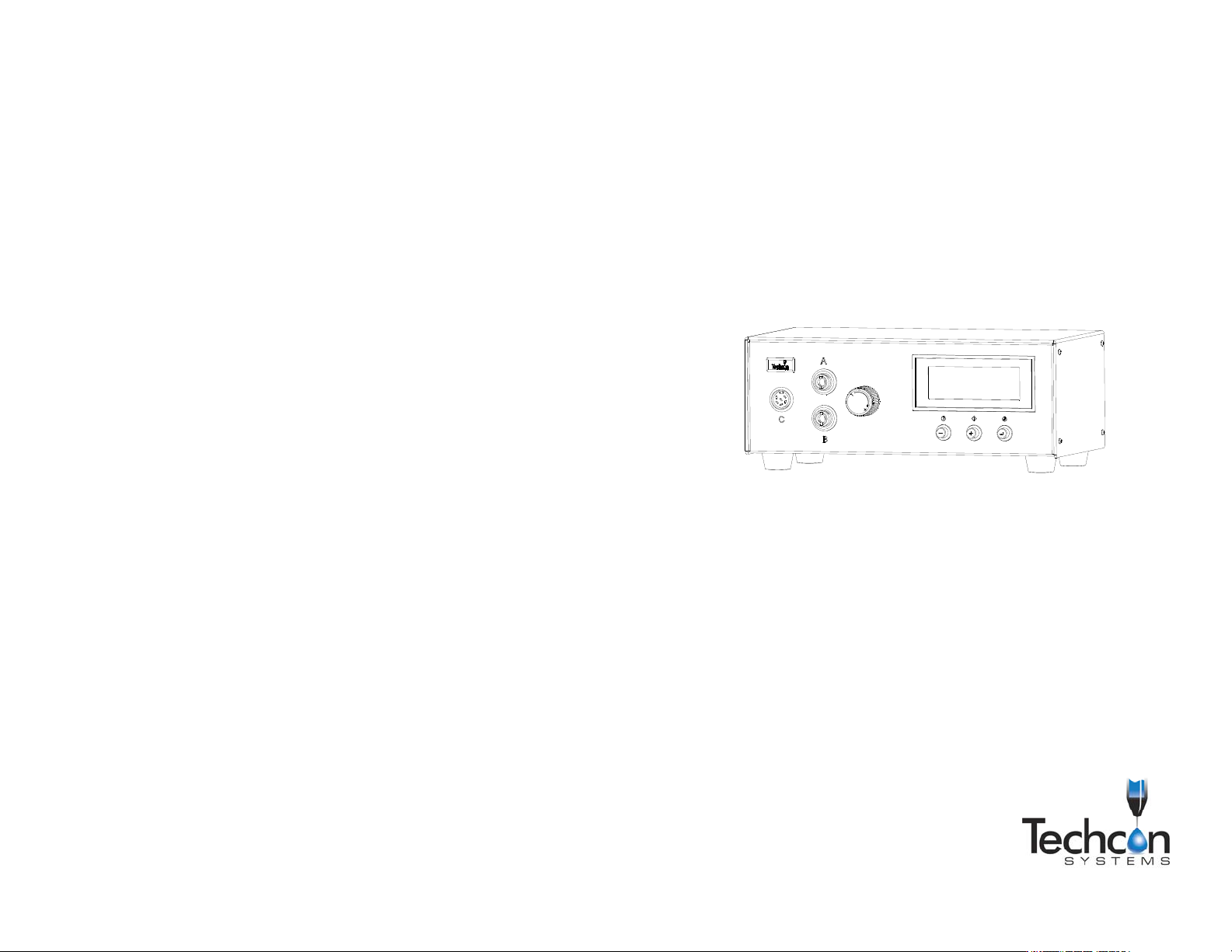

TECHCON SYSTEMS TS500R MULTI-PURPOSE DIGITAL CONTROLLER User Guide English, Traditional Ch inese, Simplified Ch inese and Korean Copyright © O K International TECHCON SYSTEMS TS500R 多功能 数字控制器 用户指 南 TECHCON SYSTEMS TS500R…
TECHCON SYSTEMS
TS500R
MULTI-PURPOSE
DIGITAL CONTROLLER
User Guide
English, Traditional Chinese, Simplified Chinese and Korean
Copyright © OK International
TECHCON SYSTEMS
TS500R
多功能
数字控制器
用户指南
TECHCON SYSTEMS
TS500R
多功能
數位控制器
使用者指南
TECHCON SYSTEMS
TS500R
다목적
디지털 컨트롤러
사용설명서적
디지털 컨트롤러
사용설명서
2
CONTENTS
Page Number
1. Safety ………………………………………………………………… 2
2. Symbol Definitions ……………………………………………….. 3
3. Specifications ……………………………………………….……….. 3
4. Features …………………………………………………………….. 4
5. Setup Instructions
5.1 To Control Pneumatic Valve ………………………………….. 4
5.2 To Control Spray Valve ……………………………………….. 6
5.3 To Control TS5000 Rotary Pump ……………………………... 8
5.4 To Control TS5000 Rotary Pump with Encoder Motor………... 9
5.5 Cycle Counter …………………………………………………. 10
5.6 To Change Pressure Unit Display……………………………… 11
5.7 Low Pressure Setting ………………………………………….. 11
5.8 Multiple Shots Setting ………………………………………… 11
6. Troubleshooting …………………………………………………….. 12
7. Maintenance …………………………………………………………. 13
8. Spare Parts and Accessories ………………………………………... 13
9. Warranty ……………………………………………………………... 13
10. I/O Configuration and End of Cycle Switch ………………………. 14
1.
SAFETY
1.1 Intende d Use:
WARNING: Use of this equipment in ways other than those described in this User
Guide may result in injury to persons or damage to property. Use this equipment
only as described in this User Guide.
OK International cannot be responsible for injuries or damages resulting from
unintended applications of its equipment. Unintended uses may result form taking
the following actions:
• Making changes to equipment that has not been recommended in the User
Guide
• Using incompatible or damaged replacement parts
• Using unapproved accessories or auxiliary equipment
1.2 Safety P rec a utions:
• Do not operate this unit in excess of maximum ratings/settings
• Always wear appropriate personal protective clothing or appare l
• Use only the following power adaptor models: PSA15R-240P(ZJ)
• The fluid being dispensed may be toxic and/or hazardous. Refer to Material
Safety Data Sheet for proper handling and safety precautions
• Do not smoke or use open flame when fla mmable materials are being dispensed
• This equipment is for indoor use only
54

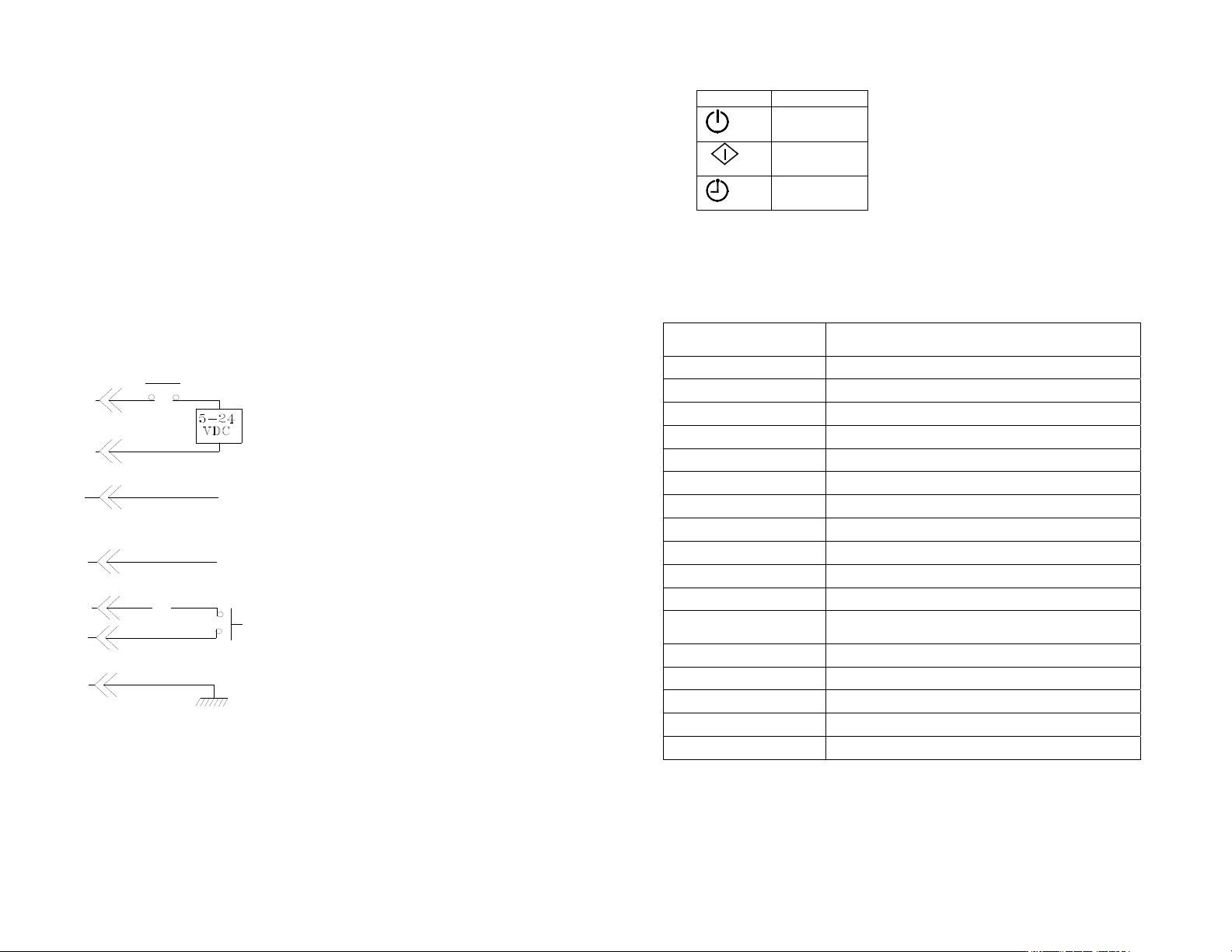

10. I/O 구성 및 주기 피드백의 종료
디스펜스 공정 중에 오픈 콜렉터 회로는 닫히고 밸브가 토출 되고 있을 때는 닫혀 있게
된다.
그리고 pin 3 과 pin 4 는 다른 구성품과 동시에 작동되도록 하는 피드백 신호이다.
외부전원은 5-24 VDC(직류)에 동작되어 회로를 통하도록 되어 있다.
소비전력은 250mA 초과 되지 않아야 하며, 전기적 부하는 5-24VDC 범위 내 최대
250mA 전류 범위 내에서 작동되는 릴레이, 솔레노이드, 계수기 LED 또는 다른
구성품들이다.
<주의>
디스팬스 공정중 pin 3 은 접지되며,
디스팬서와 콘트롤러 를 통제하는 외부 장비는 TS500R 콘트롤러 와 같은 접지를
가져야 한다.
7000-3810_E
샤시 접지
Pin 7
,
8
,
and 9 = Available
(
사용가능함
)
접촉 종료를 위한 디스펜스 공정
저압의 알람이 울리면 pin 4 는 접지(-)되며
알람이 꺼지면 pin4 연결이 끊어짐 (open 상태)
고정 피드백
디스팬스 공정 중 pin 3 은 접지(-)되며,
디스펜스 공정 마지막에는 Pin 3 연결이 끊어짐 (open 상태)
디스팬스 공정 시작을 위한 전원
Pin 1
(
+
)
Pin 2
(
-
)
Pin 3
Pin 4
Pin 5
Pin 6
Pin 5
3
2. SYMBOL DEFINITIONS
Symbol Definition
Power On/Off
Cycle Mode
Timer
3. SPECIFICATIONS
Size
254mm x 191mm x 102mm
(10” X 7.5” X 4.0”)
Weight 2.6 kg (5.8lbs)
Input Voltage 24VDC
Output Voltage Range 0-24 VDC
Rated Power 15W
Air Input 100 psi (6.9 bars) Max.
Air Output 0-100 Psi (6.9 bar)
Pollution Degree II
Installati o n Ca tegory I
Indoor Use Altitude up to 2,000m (6,562ft)
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -10˚C to 60˚C (14˚F to 140˚F)
Max. Relative Humidity
80% for temperature up to 31˚C (87.8˚F) Decreasing
linearly to 50% relative humidity at 40˚C (104˚F)
Timer 0.008-60.000 seconds
Cycle Mode Timed, Interrupt, Purge
Timing Repeat Tolerance +/- 0.001%
Cycle Rate 900 cycles/min
LCD 20 X 4 display segments
