Installation of Trace Service and Trace Monitor System Requirements and Software Components for Tra ceability Mo dules Software Components and Co nfiguration 20 Installation Manual SIPLACE Traceability 3.3 5.1.4.2 Config…
Installation of Trace Service and Trace Monitor
Software Components and Configuration System Requirements and Software Components for Traceability Modules
Installation Manual SIPLACE Traceability 3.3 19
5.1.4 Software Components and Configuration
5.1.4.1 Software Components
The SIPLACE Traceability installation CD contains the following software components:
▪ Trace Service 3.3
▪ Trace Monitor 3.3
▪ Traceability Option 3.3 for SE 2.9
The following software components on the Support Media DVD must be installed on your computer be-
fore you can install SIPLACE Traceability 3.3:
▪ Java 2 JRE 1.6
▪ Microsoft.NET 3.5 SP1 Framework
▪ Apache Tomcat 5.5
You do not need to install Tomcat 5.5 on the same computer as Trace Monitor 3.3.
▪ MS XML Parser Version 6.0
MS XML Parser Version 6.0 is also required for Trace Monitor 3.3. Install MS XML Parser Version
6.0 on the same computer as Tomcat 5.5. You should also install Microsoft.NET 3.5 SP1 Framework
on this computer.
▪ Microsoft Internet Explorer 7.0, 6.0 SP2
Microsoft Internet Explorer is needed for displaying Trace Monitor and for invoking Traceability data
from the database. Install Microsoft Internet Explorer on the same computer as SIPLACE Traceabil-
ity.
▪ Adobe Reader 7.0
This component is needed for reading the SIPLACE Traceability 3.3 documentation.
Installation of Trace Service and Trace Monitor
System Requirements and Software Components for Traceability Modules Software Components and Configuration
20 Installation Manual SIPLACE Traceability 3.3
5.1.4.2 Configuration
Trace Service can either be installed in SIPLACE LAN or distributed via SIPLACE and client LANs. The
following configuration options exist for SIPLACE Traceability:
1. SIPLACE Traceability on one Computer
This option involves installing all SIPLACE Traceability software components one computer, without
a separate web server. However, the database server can be on a separate computer.

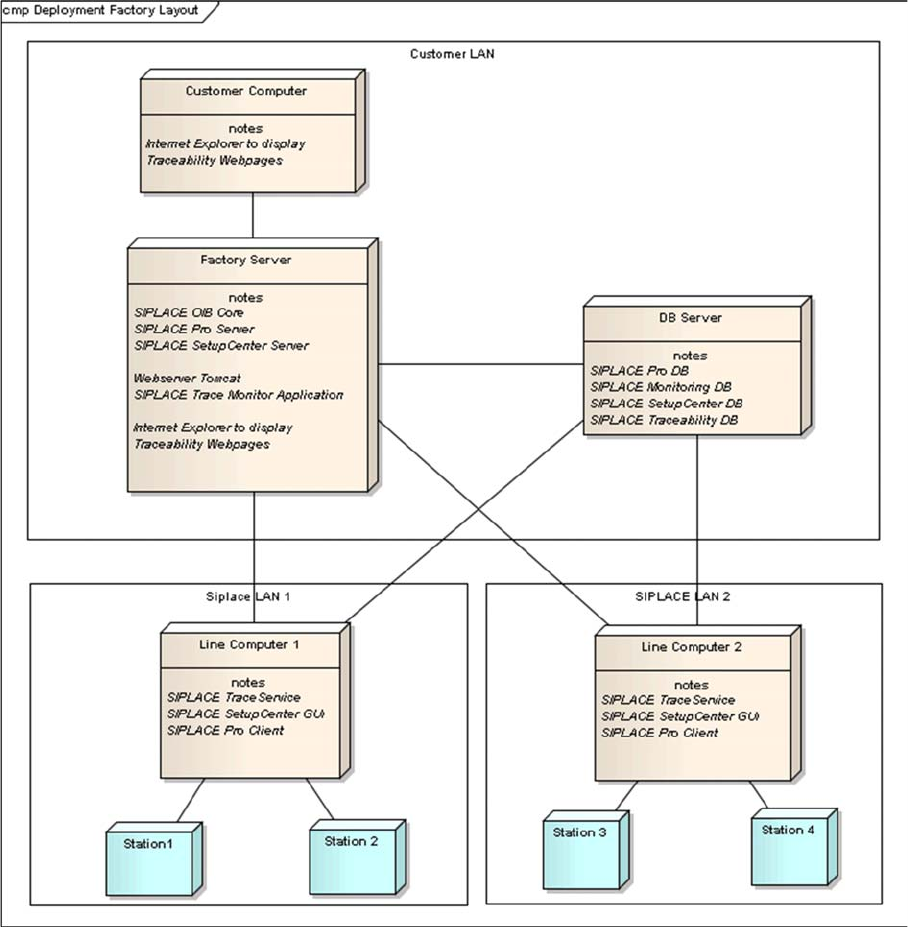

2. SIPLACE Traceability distributed across several computers:
This option involves installing the SIPLACE Traceability software components on multiple comput-
ers, according to your system requirements:
▪ Traceability or Line Computer
The following components need to be installed on this computer:
– SIPLACE Traceability with the components:
Trace Service
– Microsoft.NET 3.5 SP1 Framework
– Microsoft Internet Explorer
– SIPLACE Pro Client installation (for SPI XML Adapter)
Installation of Trace Service and Trace Monitor
Installation Trace Service
Installation Manual SIPLACE Traceability 3.3 21
▪ Factory Server or Web server for managing Java Servlets
The following components need to be installed on this computer:
– Apache Tomcat 5.5
– Java 2 JRE 1.6
– Microsoft.NET 3.5 SP1 Framework
– MS XML Parser 6.0
–Trace Monitor
▪ Database server:
– Preferred: MS SQL Server 2008 R2 (32 Bit)
5.2 Trace Service
Trace Service requires a SIPLACE Pro installation (GUI or Desk).
5.2.1 Installation
NOTICE
SQL Server 2008 R2 Installation Manual
For a detailed description of the SQL Server 2008 R2 installation, refer to the SQL Server 2008
R2 Installation Manual (Item No.: 00196824-xx) which can be found on the Support Media DVD
1. The SQL Server 2008 R2 itself is not part of the Support Media DVDs.
NOTICE
Machine-Based Traceability
For machine-based traceability, the SIPLACE placement machines must be equipped with the
options "Setup verification" and "Traceability".
NOTICE
MS SQL Express
MS SQL Express databases are only allowed for testing/training purposes
►Place the SIPLACE Traceability CD into the CD-ROM
drive of your SIPLACE Pro computer. You will see the
start screen.
►Select SIPLACE Trace Service 3.3. You will be guided
through the Trace Service installation procedure.
The dialog boxes shown below will be displayed during
the installation procedure.
