Installation of Trace Service and Trace Monitor
Installation Trace Monitor
Installation Manual SIPLACE Traceability 3.3 25
5.3 Trace Monitor
5.3.1 Installation
5.3.1.1 Installation Trace Monitor 3.3
►Place the SIPLACE Traceability CD into the CD-ROM
drive of your SIPLACE Pro computer. The start
screen will appear.
►Make sure that the following software components
available from the Support Media DVD are already in-
stalled:
▪ (1) Java 2 JRE 1.6
▪ (2) Tomcat 5.5
▪ (3) Microsoft.NET 3.5 SP1 Framework
▪ (4) MSXML Core Services 6.0
NOTICE
Upgrade
For upgrading an installed Trace Monitor software please see the section "7 Upgrade to the
new Traceability concept" [ ➙ 37].
►Select SIPLACE Trace Monitor 3.3. You will be guided
through the Trace Monitor installation procedure.
The dialog boxes shown below will be displayed during
the installation procedure.
Installation of Trace Service and Trace Monitor
Trace Monitor Installation
26 Installation Manual SIPLACE Traceability 3.3

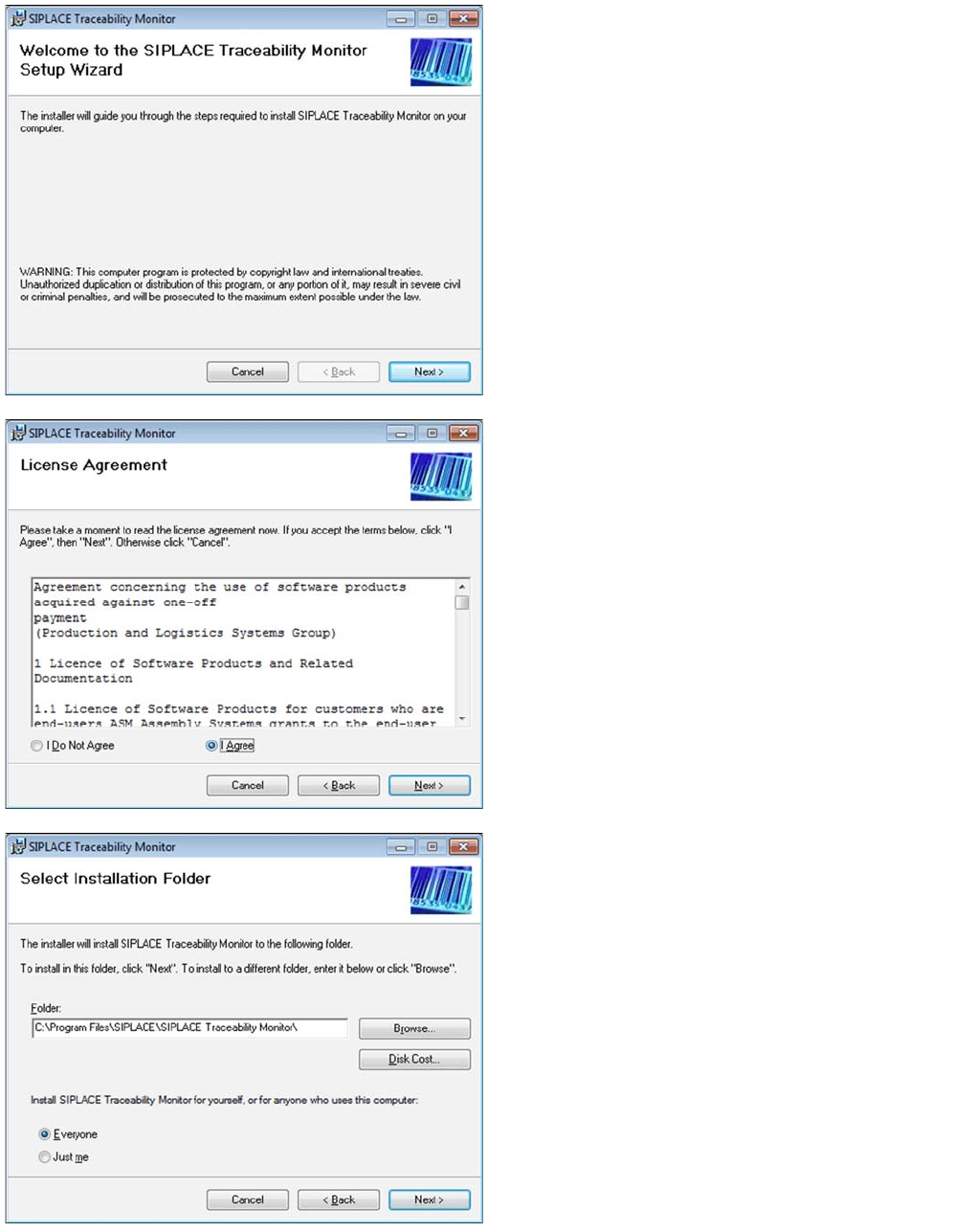

The Welcome dialog will appear.
►Click on Next to continue the installation procedure.
►Read the license agreement. If you agree with the
conditions, click on I Agree, otherwise click on I Do
Not Agree. If you select I Do Not Agree, the installa-
tion procedure will be terminated.
►Click on Next to continue the installation procedure.
►Now specify the folder in which you wish to install the
application. The default folder is C:\Program
Files\SIPLACE\SIPLACE Traceability Mon-
itor\. You can alter the default installation folder by
using the Browse… button.
Installation of Trace Service and Trace Monitor
Installation Trace Monitor
Installation Manual SIPLACE Traceability 3.3 27
►Confirm the installation by clicking on Next.
►The installation of Trace Monitor will begin.
►The installation is successfully finished. Click Close to
exit.
⇨The Install Traceability Monitor Application on Apache
Tomcat dialog opens.
