JaNets Product Specifications
2. JaNets External Output Function Overview
2-11
Information that can be output with each machine model is described below.
Table 1.4.22 List 1 of information that can be output with each machine model
(with the Symptom management function)
Information name RS-1 RS-1R
RX-6
Series
RX-7/8
Series
KE-
3000
Series
FX-3
Series
KE-
2050/60
Series
KE-
2070/80
Series
KD-
2077
Device operation information
○ ○ ○ ○ ○ ○ ○ ○ ○
Production nozzle management information -
○
- - - - - - -
Total nozzle management information - ○ - - - - - - -
Table 1.4.23 List 2 of information that can be output with each machine model
(with the Symptom management function)
Information name JM-10
JM-20
/JM-100
RV
Series
RP-1
Device operation information
○ ○ ○
-
Production nozzle management information - - - -
Total nozzle management information - - - -
Information to be input with each function
Information that can be entered from an external system with the JaNets External Output function is
described below for each function.
Table 1.4.24 List of information to be entered with each function
Function name
Information name
Line configuration information
output function
Line list information request
Line information request
Machine monitoring information Total production management information request
Machine operation function
Production pause request
Production abort request
Cycle stop request
Start availability result information
Program Downloader online production status information request
Production program open request
Production registration cancel request
Production line download request
Symptom management function
Device operation information request
Total nozzle management information request
Information that can be output for each machine model is described below.
Table 1.4.25 List 1 of information that can be input with each machine model
Information name RS-1 RS-1R
RX-6
Series
RX-7/8
Series
KE-
3000
Series
FX-3
Series
KE-
2050/60
Series
KE-
2070/80
Series
KD-
2077
Total production management information
request
○ ○ ○ ○ ○ ○ ○ ○ ○
Production pause request
○ ○ ○ ○ ○ ○ ○ ○ ○
Production abort request
○ ○ ○ ○ ○ ○ ○ ○ ○
Cycle stop request
○ ○ ○ ○ ○
- - - -
Start availability result information
○ ○ ○ ○ ○
- - - -
Device operation information request
○ ○ ○ ○ ○ ○ ○ ○ ○
Total nozzle management information
request
-
○
- - - - - - -
JaNets Product Specifications
2. JaNets External Output Function Overview
2-12
Table 1.4.26 List 2 of information that can be input with each machine model
Information name JM-10
JM-20
/JM-100
RV
Series
RP-1
Total production management information request
○
○
○
○
Production pause request
○
○
-
-
Production abort request
○
○
○
○
Cycle stop request
-
○
○
○
Start availability result information
-
○
○
○
Device operation information request
○
○
○
-
Total nozzle management information request
-
-
-
-
* Since the Program Downloader online production status request, the Production program open request,
Production registration cancel request and Production line download request are intended for each
monitored production line individually, they can be input regardless of machine models.
Specifications of a used PC
It is based on the specifications of the PC by which JaNets is operated.
JaNets Product Specifications
2. JaNets External Output Function Overview
2-13

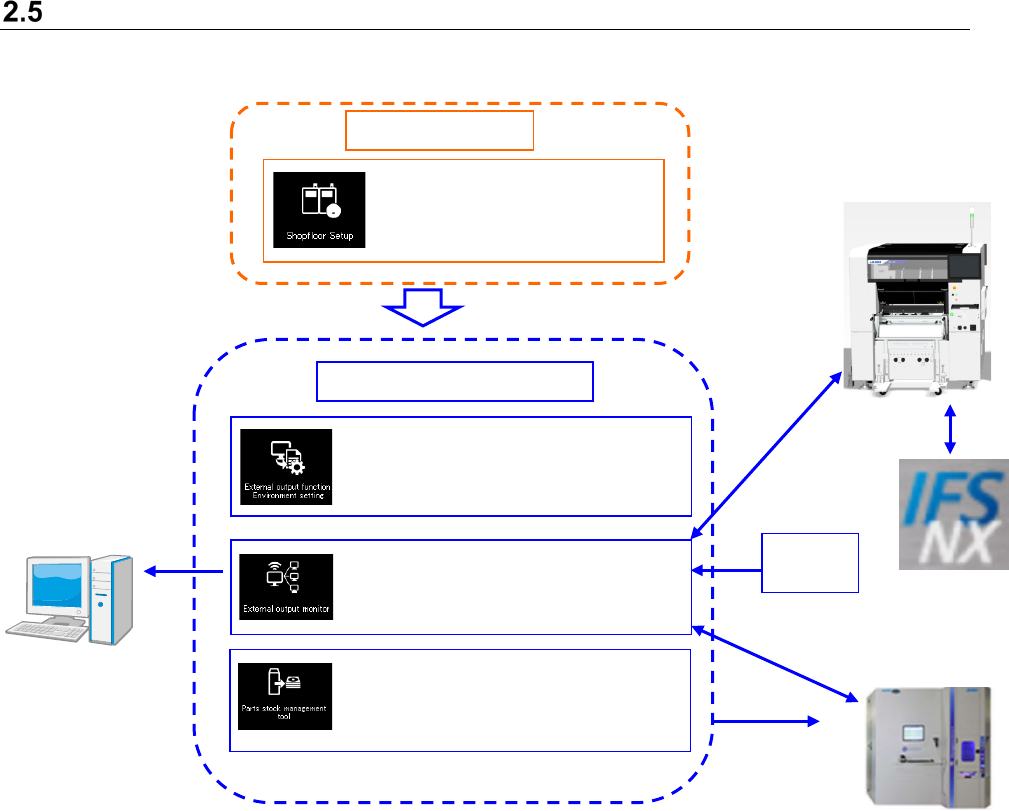

Flow of Data When It Is Output Externally
The flow of data output to an external system with the JaNets is shown below.
*1 The production line set with the Shopfloor Setup is to be monitored.
Step 1: The floor, line and machine are created in the “Shop floor setup.”
Select the monitor line setting and select a line to use the external output function. Then, register
the monitor line.
Step 2: Set communication and set output in-formation with the “External output function Envi-
ronment setting.”
Step 3: Start up the “External output monitor” to communicate with an external system/ machine/
storage/ IFS-NX.
: Setting of communication with an exter-
nal system/machine/storage/IFS-NX,
setting of output information and regis-
tration.
: Connection to various types of devices,
monitoring of the connection conditions,
and input/output of information from/to
an external system.
: Output of a component information file
of a production program to the storage
and setting of the automatic compo-
nent delivery.
External output function
Stock information/Update of the
number of
remaining reels
Component reel delivery request
Output of a component
information file
Shared function
: Configuration of a production
line, a machine, a floor and
registration of a production line
to be monitored. *1
CAMX
Monitor
Such as machine reel
information and
tracea-bility information
Such as status
information,
production
management
information, reel
information,
Traceability
function and
various type of
request infor-
mation
Output of
various types
of information
and request
output
