4 Electrical Section 4-7 Serial I/O ■ Serial I/O List Device No. DO/DI I/O port Main function Communication board Device1 DO control Device2 DI monitor CDA2 CN1 Head operation HIO11 Device3 DO control Device4 DI monitor …
4 Electrical Section
4-6

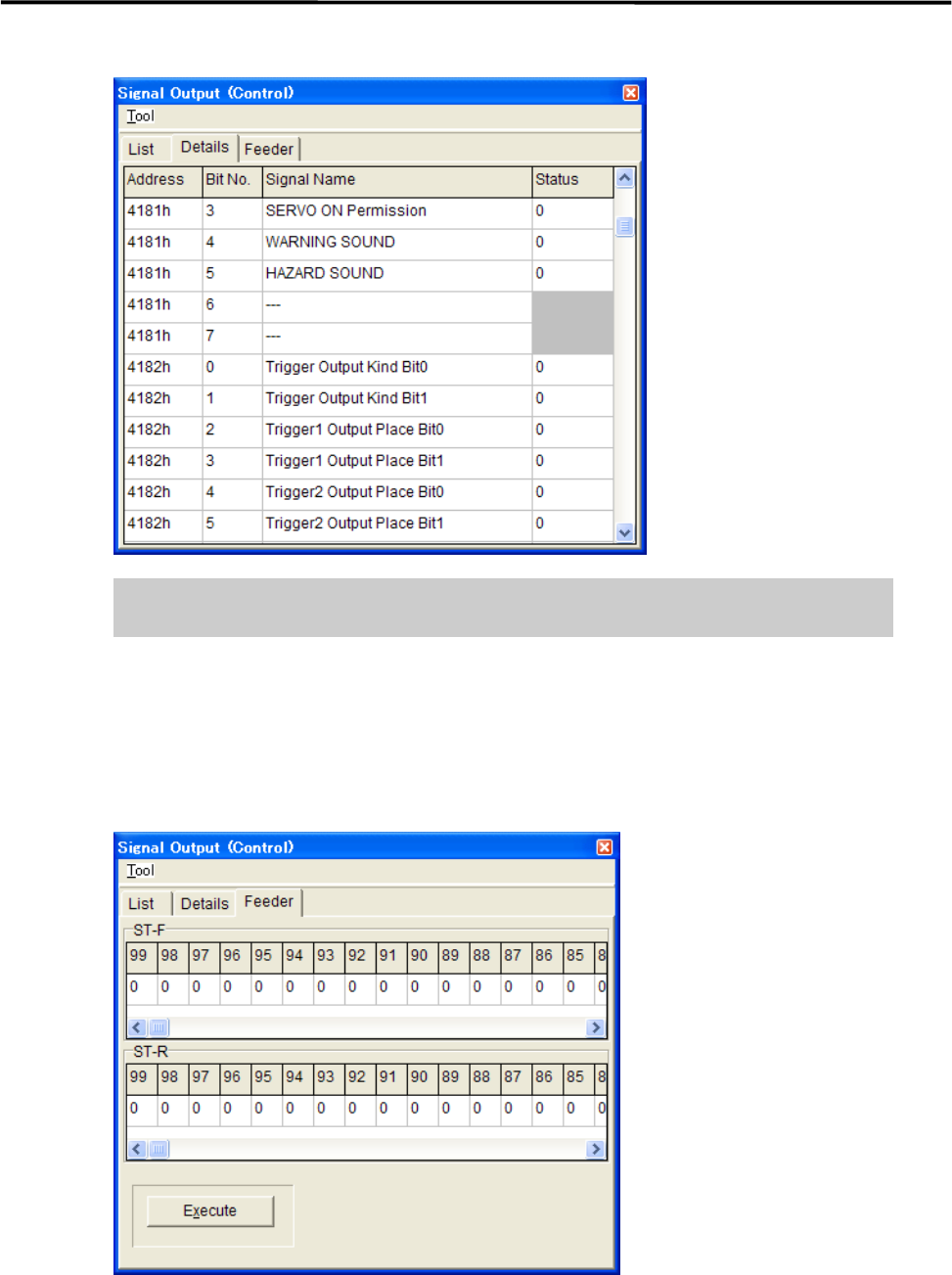

■ Details tab
The signal output operation allows an actuator to move. Make sure non-operators
keep a safe distance from the mounter before starting the operation.
Action:
① Click the cell corresponding to the desired actuator.
② The actuator is turned on or off and the display changes accordingly.
■ Feeder tab
This tab allows you to operate the tape feeders set in the front and rear feeder banks.
Action:
① Scroll left or right to display the desired feeder number.
② Click “0” of the desired feeder number “0” switches to “1”.
③ Click <Execute> button allows the feeder for one feeder indexing.
4 Electrical Section
4-7
Serial I/O
■ Serial I/O List
Device No. DO/DI I/O port Main function Communication board
Device1 DO control
Device2 DI monitor
CDA2 CN1 Head operation HIO11
Device3 DO control
Device4 DI monitor
CDA2 CN2
Device5 DO control
Device6 DI monitor
CDA2 CN3 Front operation SWG6 (F)
Device7 DO control
Device8 DI monitor
CDA2 CN4 Rear operation SWG6 (R)
Device9 DO control
Device10 DI monitor
CDA2 CN5 Conveyor CIO7
Device11 DO control
Device12 DI monitor
CDA2 CN6 Tray feeder MXR
Action:
① Click the cell corresponding to the desired actuator.
② At the same time you click the cell, the display changes 1(On) or 0(Off), and the actuator moves
accordingly.
Example:

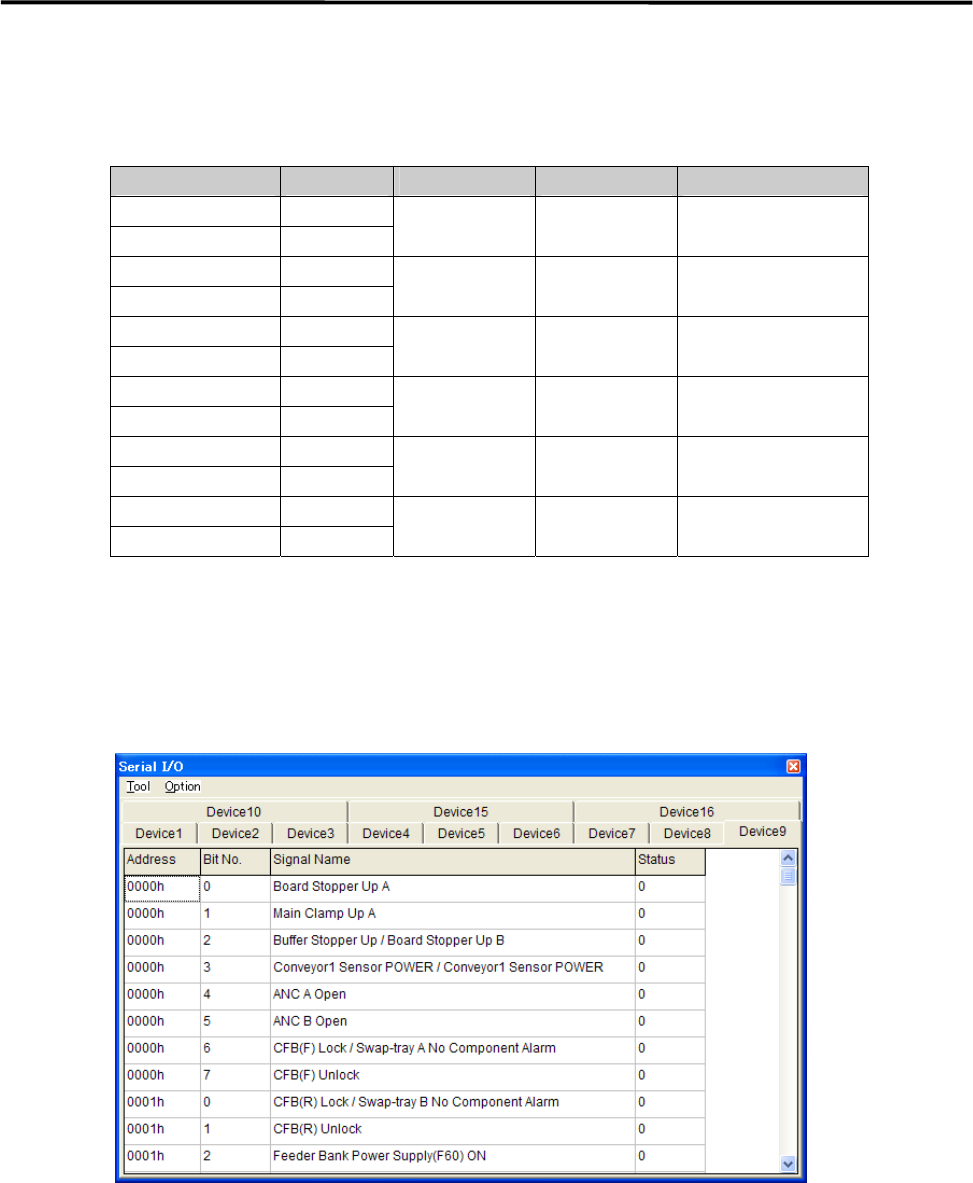

■ Moving Up and Down the Board Stopper
① Select Manual> Signal I/O to open [Serial I/O] window.
② Select [Device9] tab.
③ Click [State] of [Board Stopper Up A] cell, Status changes “0” to “1” and the board stopper lifts. At this
time, confirm that State of [Board Stopper Up A (0002h)] in [Device10] switches from “0” to “1”.
To move down the board stopper, click [State] of [Board Stopper Up A] in [Device9]. And State changes
“1” to “0”. At this time, State of [Board Stopper Up A (0002h)] in [Device10] switches from “1” to “0”.
4 Electrical Section
4-8
Signal Output Map
■ DO Control
Address
Bit
No.
Signal Name Address
Bit
No.
Signal Name
4181h 0 4185h 0 Fixed Camera Illumi. Address Bit0
1 1 Fixed Camera Illumi. Address Bit1
2 2 Fixed Camera Illumi. Address Bit2
3 SERVO ON Permission 3 Fixed Camera Illumi. Address Bit3
4 WARNING SOUND 4 Fixed Camera Illumi. Address Bit4
5 HAZARD SOUND 5 Fixed Camera Illumi. Address Bit5
6 6
7 7
4182h 0 Trigger Output Kind Bit0 4186h 0 UPS Shutdown
1 Trigger Output Kind Bit1 1
2 Trigger1 Output Place Bit0 2
3 Trigger1 Output Place Bit1 3
4 Trigger2 Output Place Bit0 4
5 Trigger2 Output Place Bit1 5
6 Trigger Output to Coplanarity Bit0 6
7 Trigger Output to Coplanarity Bit1 7
4183h 0 Signal Tower 1 On 4187h 0 SERVO ON Permission2
1 Signal Tower 1 Flash 1 SERVO ON Permission3
2 Signal Tower 2 On 2 Reserve DO
3 Signal Tower 2 Flash 3 Reserve DO
4 Signal Tower 3 On 4 Reserve DO
5 Signal Tower 3 Flash 5 Reserve DO
6 Signal Tower 4 On 6 Reserve DO
7 Signal Tower 4 Flash 7 Reserve DO
4184h 0 Fixed Camera Illumi. Data Bit0 4188h 0 Feeder Bank Bass-Line Separation
1 Fixed Camera Illumi. Data Bit1 1
2 Fixed Camera Illumi. Data Bit2 2
3 Fixed Camera Illumi. Data Bit3 3
4 Fixed Camera Illumi. Data Bit4 4
5 Fixed Camera Illumi. Data Bit5 5
6 Fixed Camera Illumi. Data Bit6 6
7 Fixed Camera Illumi. Data Bit7 7
