PC150 Valve Manual
Revision A / January 2022
Page 16 of 26
4. Install two (2) VLV-006K O-rings in the top side of fluid body.
Figure 17: O-rings in the Top of the Fluid Body
5. Align the manifold, seal plate, and fluid body on top of one another.
6. Make sure all O-rings are still seated.
Figure 18: Fluid Assembly
7. Apply Loctite 222 to the ends of four (4) socket head cap screws and two (2)
button head cap screws.
PC150 Valve Manual
Revision A / January 2022
Page 17 of 26
8. Align the assembled fluid section to the bottom of the air cylinder assembly and
install four (4) socket head cap screws with the correct thread locker.

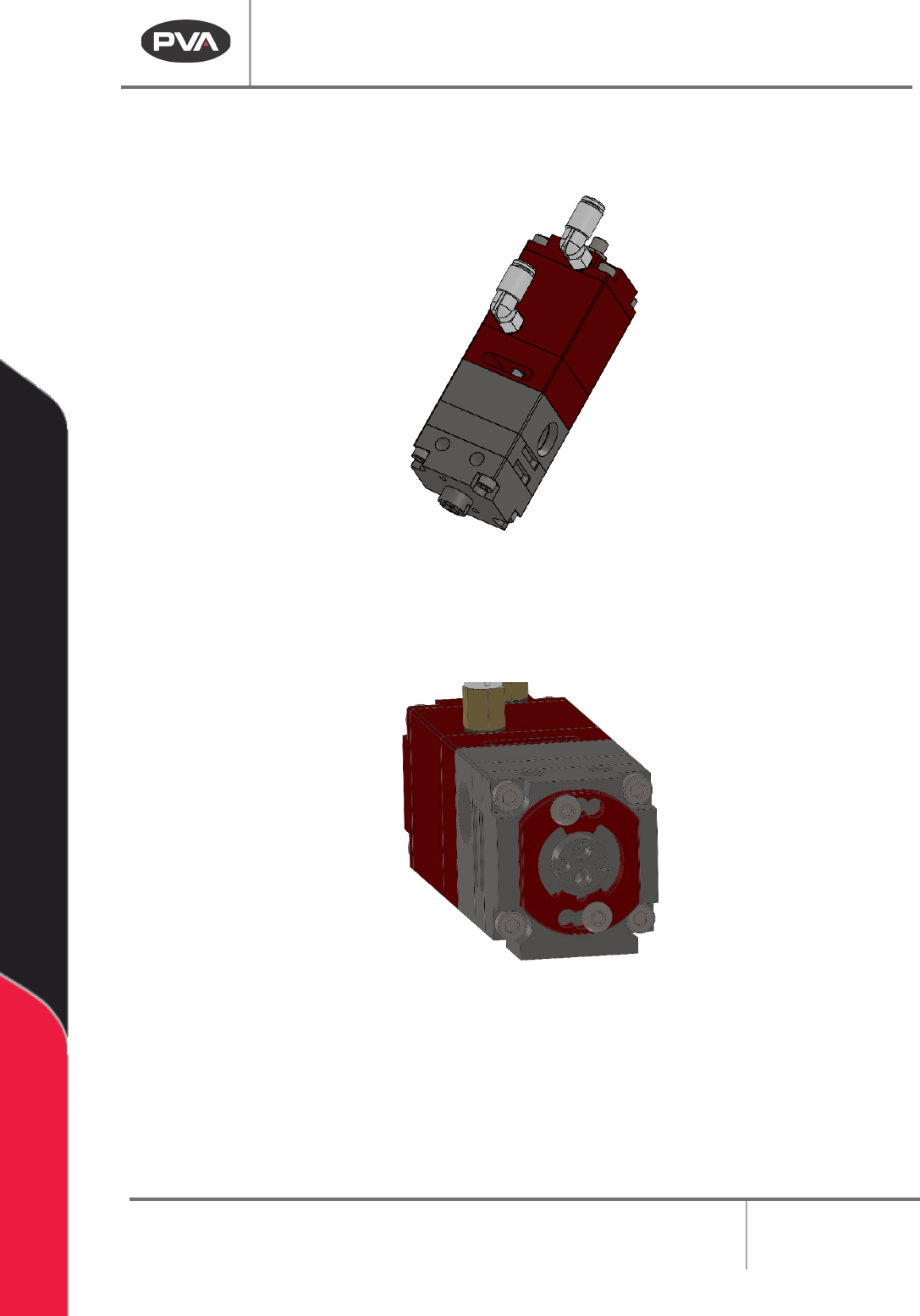

Figure 19: Assemble the Air and Fluid Sections
9. Install the mixer retainer with two (2) button head cap screws with the correct
thread locker applied.
Figure 20: Install the Mixer Retainer
10. Install Teflon tape on the 1/8 NPT fluid fittings.
11. Install the necessary 1/8 NPT fluid fittings.
12. Install the static mixer, refer to Section 4.2.
PC150 Valve Manual
Revision A / January 2022
Page 18 of 26
PC150 Series Reference
PC150 Bill of Materials
Item Part Number Description Qty
1 SHCS M3x0.5 X 8 SOCKET HEAD CAP SCREW 2
2 SHCS M3x0.5 X 35 SOCKET HEAD CAP SCREW 8
3
B18.3.6M - M5 x 0.8 x 20 Hex
Socket Flat Pt. SS
SET SCREW 1
4
B18.2.4.5M - Hex jam
nut, M5 x 0.8 --D-N
1
5 65075822 SEALING WASHER, #10/M5 1
6 KQ2L04-M5A
FITTING, ELBOW, 4MM HOSE X M5
THREAD
2
7 VLV-006K O-RING, -006, KALREZ 4
8 VLV-011K O-RING, -011, KALREZ 4
9 VLV-006B O-RING, -006, BUNA-N 2
10 VLV-117B O-RING, -117, BUNA-N 2
11 614-8574-1
PCS150 FLUID BODY, LOWER
SECTION
1
12 614-8576-1
PCS150 FLUID BODY, CENTER
SECTION
1
13 614-8578-1
PCS150 FLUID BODDY, UPPER
SECTION
1
14 614-8580-1 PCS150 AIR BODY 1
15 614-8581-1 PCS150 PISTON 1
16 614-8584-1 PC150 AIR CAP 1
18 214-5448 BUSHING, 0.126 ID, 0.245 LG 2
17 614-8592-1 PCS150 ROD 2
18 214-5448 BUSHING, 0.126 ID, 0.245 LG 2
19 614-8601-1 PCS100 ROD GUIDE 1
20 214-7976 MIXER RETAINER 1
21 101515 NIGHT CAP 1
Figure 21: PC150 Bill of Materials
