PC150 Valve Manual Revision A / Jan uary 202 2 Page 19 of 26 PC150 Seri es Mechani cal Dr awings Figure 22 : Mechanical Drawing
PC150 Valve Manual
Revision A / January 2022
Page 18 of 26
PC150 Series Reference
PC150 Bill of Materials
Item Part Number Description Qty
1 SHCS M3x0.5 X 8 SOCKET HEAD CAP SCREW 2
2 SHCS M3x0.5 X 35 SOCKET HEAD CAP SCREW 8
3
B18.3.6M - M5 x 0.8 x 20 Hex
Socket Flat Pt. SS
SET SCREW 1
4
B18.2.4.5M - Hex jam
nut, M5 x 0.8 --D-N
1
5 65075822 SEALING WASHER, #10/M5 1
6 KQ2L04-M5A
FITTING, ELBOW, 4MM HOSE X M5
THREAD
2
7 VLV-006K O-RING, -006, KALREZ 4
8 VLV-011K O-RING, -011, KALREZ 4
9 VLV-006B O-RING, -006, BUNA-N 2
10 VLV-117B O-RING, -117, BUNA-N 2
11 614-8574-1
PCS150 FLUID BODY, LOWER
SECTION
1
12 614-8576-1
PCS150 FLUID BODY, CENTER
SECTION
1
13 614-8578-1
PCS150 FLUID BODDY, UPPER
SECTION
1
14 614-8580-1 PCS150 AIR BODY 1
15 614-8581-1 PCS150 PISTON 1
16 614-8584-1 PC150 AIR CAP 1
18 214-5448 BUSHING, 0.126 ID, 0.245 LG 2
17 614-8592-1 PCS150 ROD 2
18 214-5448 BUSHING, 0.126 ID, 0.245 LG 2
19 614-8601-1 PCS100 ROD GUIDE 1
20 214-7976 MIXER RETAINER 1
21 101515 NIGHT CAP 1
Figure 21: PC150 Bill of Materials
PC150 Valve Manual
Revision A / January 2022
Page 19 of 26
PC150 Series Mechanical Drawings

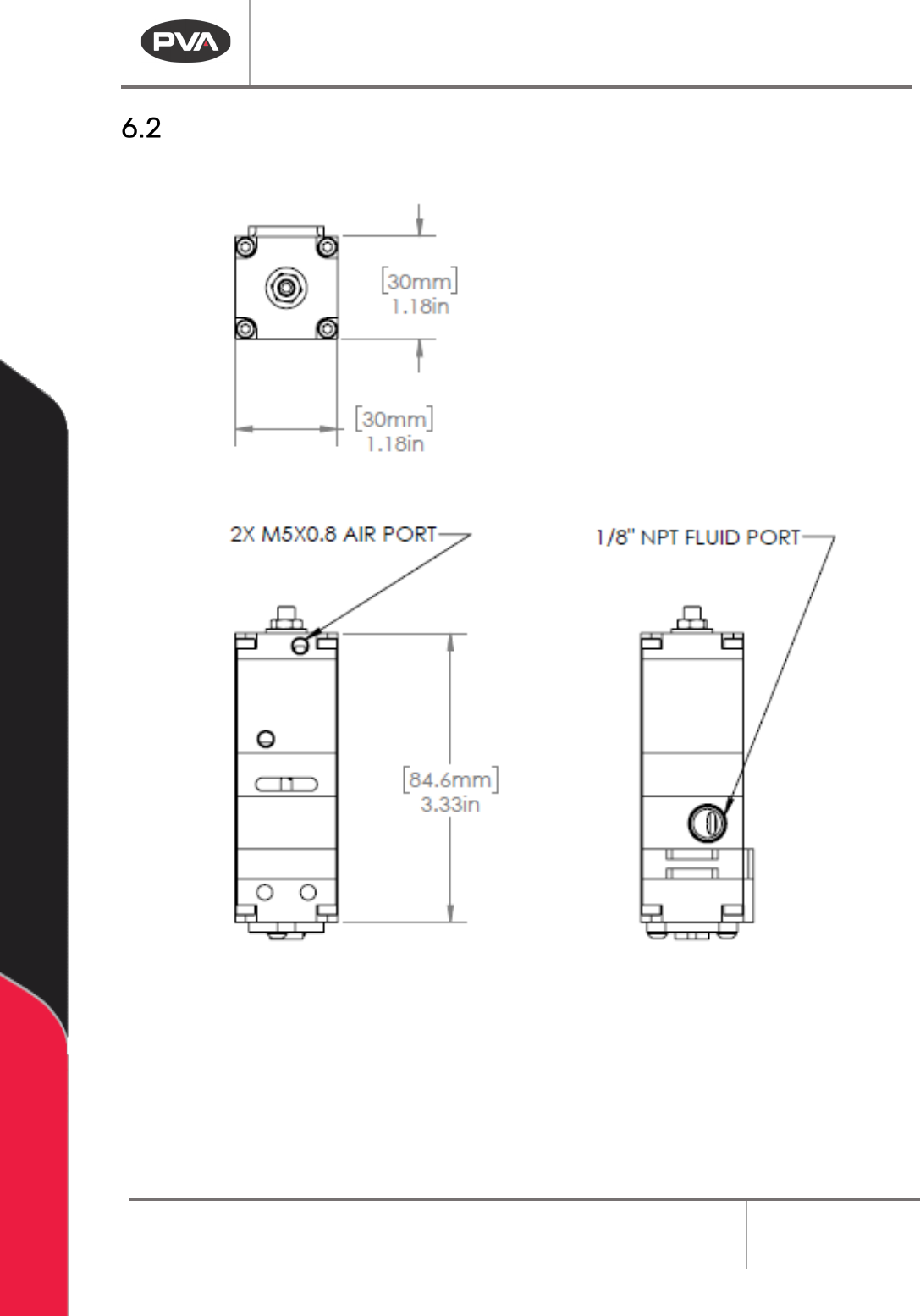

Figure 22: Mechanical Drawing
PC150 Valve Manual
Revision A / January 2022
Page 20 of 26

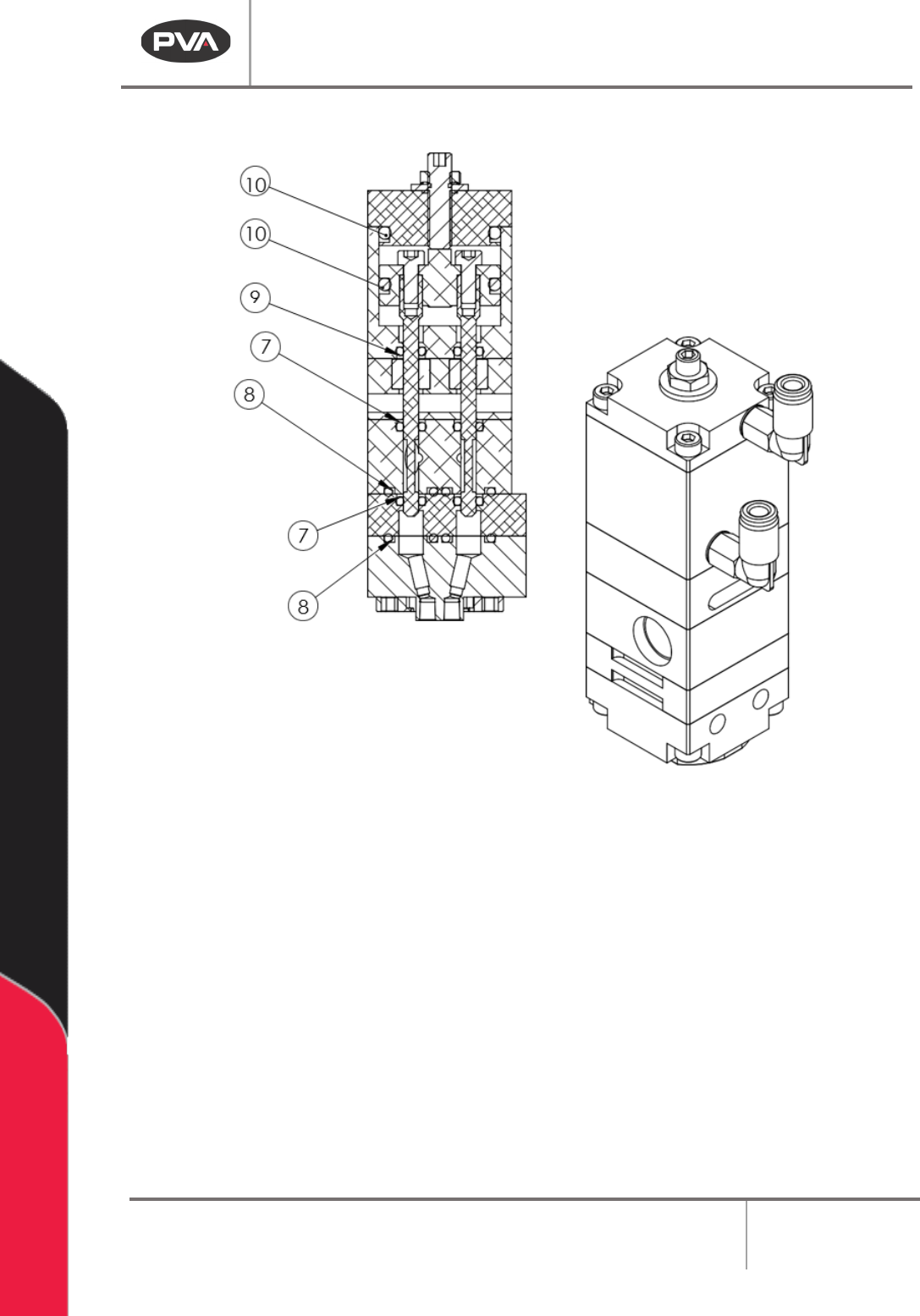

Figure 23: Valve Side View
