PC150 Valve Manual Revision A / Jan uary 202 2 Page 4 of 26 Introduction Before y ou o perat e this valv e, read the operati on and setup manu al. T his will help you to become famili ar with the product and ensure s ucc…
PC150 Valve Manual
Revision A / January 2022
Page 3 of 26
Table of Contents
PVA Contact Information ........................................................................................................4
Document History .....................................................................................................................4
System Description .................................................................................................................. 5
Theory of Operation ................................................................................................................. 5
Air Section .............................................................................................................................. 5
Fluid Section ...................................................................................................................... 5
Personal Protective Equipment ............................................................................................. 6
Waste Disposal ........................................................................................................................... 6
Startup ....................................................................................................................................... 8
Install the Static Mixer ............................................................................................................. 9
Shutdown Procedure ............................................................................................................. 10
Disassemble the Wetted Section of the Valve .................................................................. 11
Procedure .............................................................................................................................. 11
Clean the Disassembled Valve ............................................................................................. 14
Assemble the Valve ................................................................................................................ 15
PC150 Bill of Materials............................................................................................................ 18
PC150 Series Mechanical Drawings .................................................................................... 19
Spare Parts ............................................................................................................................... 21
PC150 Valve Manual
Revision A / January 2022
Page 4 of 26
Introduction
Before you operate this valve, read the operation and setup manual. This will help you to
become familiar with the product and ensure successful operation.
If any questions or problems arise, contact PVA’s Technical Support department.
PVA Contact Information
Main Office PVA
6 Corporate Drive
Halfmoon, NY 12065
Tel +1-518-371-2684
Fax +1-518-371-2688
Website: http://www.pva.net
Email: info@pva.net
Technical Support
Tel +1-844-734-0209
Email: cs@pva.net
Document History
Revision Date
Reason for Changes
REV A
February 2020
Initial Release
Note: All photographs and CAD model representations in this document are a
“general representation” of the system and its components. The actual appearance
of the system and its components can differ based upon customer specific
configuration.
PC150 Valve Manual
Revision A / January 2022
Page 5 of 26
System Description
This manual applies to the following Precision Valve & Automation Inc. valve:
PC150
Two-Component Dispensing Valve
Theory of Operation
The PC150 is a rear-closing, two component valve designed to dispense two component
materials. This valve has an adjustable snuff back to prevent drips or strings at the end of
the static mixer. Part A and Part B materials separately flow in and out of the valve into a
disposable static mixer. It is not necessary to disassemble and clean the valve at the end of
each day. The PC150 has a divorced design made of two major sections: the air section and
the fluid section.
Air Section
The air section is an aluminum body with a simple
piston/cylinder combination used to open and close
the valve. The stroke adjustment screw in the upper air
body controls how far the piston and rod assembly can
retract as well as the snuff back.
Fluid Section
The fluid section is made of stainless steel and all seals
are FFKM. The fluid section includes two rods with
seals on each side of the valve to control fluid flow of
Part A and Part B. Fluid dispenses as the rods move
past the seals to the forward position. When the rods
retract back into the seals, the fluid flow stops and
creates a snuff back action on the fluid.

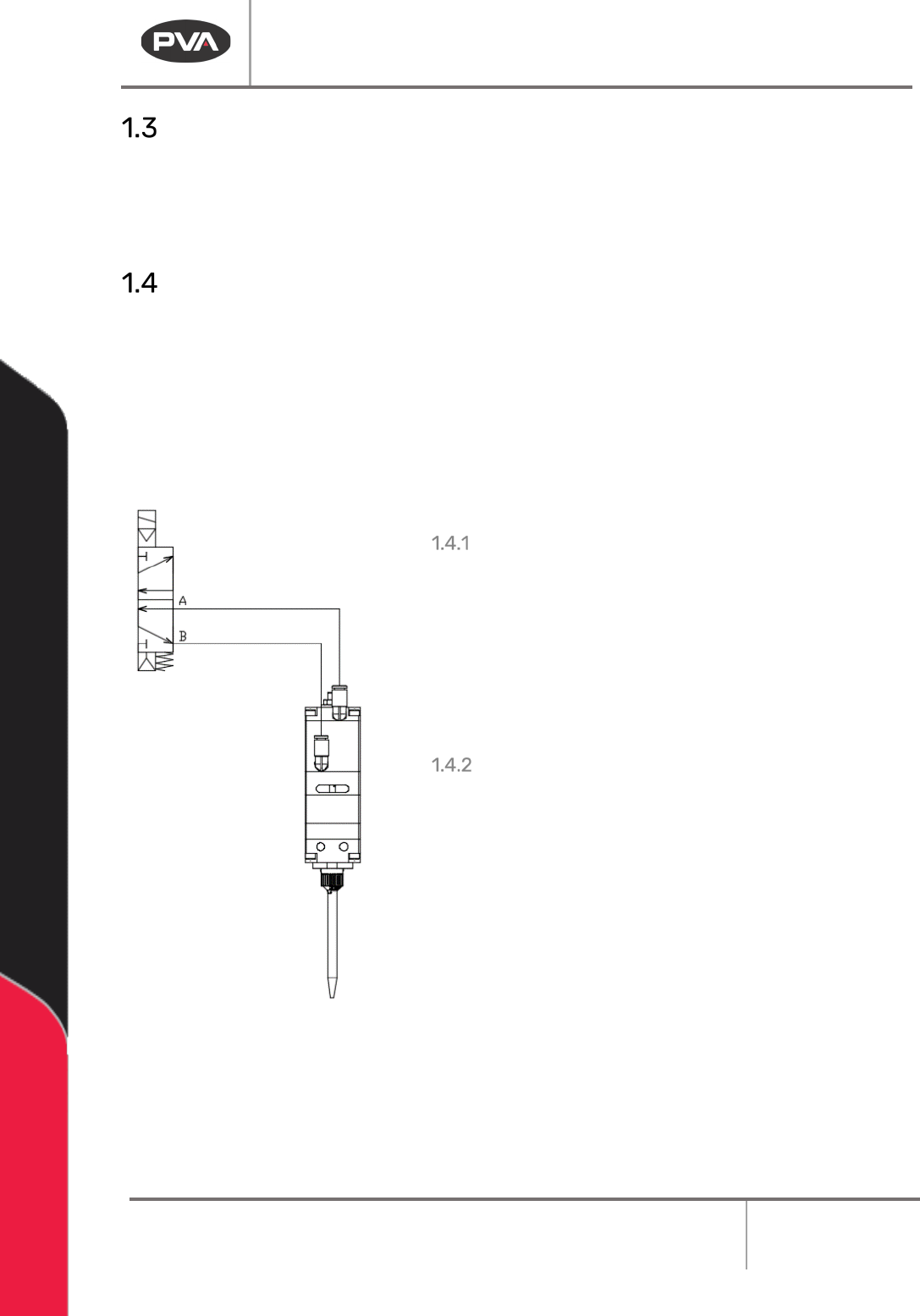

Figure 1: General PC150 Pneumatic Schematic
