5OM-1732 4-1-29 CPU2 部 1 1206-001 A TX Power Supply CPU2 Back Plane Board (Upper) Feeder Base (Rear) Feeder Base (Front) Connector Case Connector Case (Lower) Not Mount
5OM-1732
4-1-28
1208-002

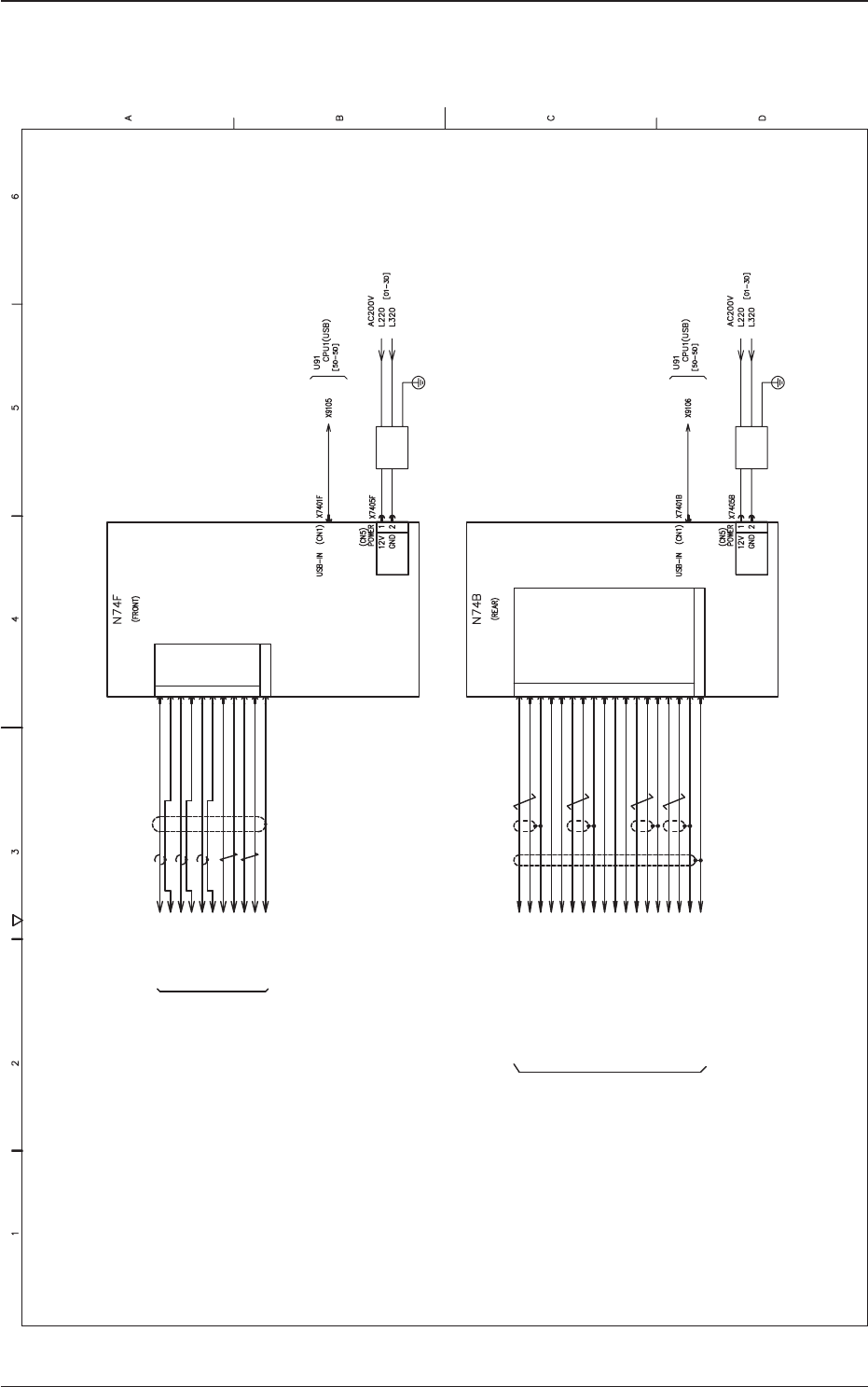

触摸面板监视器部
Touch Panel Monitor
Touch Panel Monitor
AC Adaptor
AC Adaptor
To
To
(CN3)
X9104
X7403F
VGA
8:
14:
13:
10:
7:
6:
5:
2:
3:
1:
FG:
8
14
13
10
7
6
5
2
3
1
FG
R-GND
GND
GREEN
BLUE
RED
G-GND
SYNC-GND
H-SYNC
V-SYNC
B-GND
(CN3)
DVI
FG
R-GND
GND
GREEN
BLUE
RED
G-GND
SYNC-GND
H-SYNC
V-SYNC
B-GND
[50-5B]
:1
:2
:3
:7
:9
:10
:6
:11
:14
:15
:16
:17
:18
:19
:23
:24
:22
:FG
[50-5B]
U91
To CPU1(DVI)
TMDS clock shield
TMDS Data 2-
TMDS Data 2/4 shield
DDC clock
DDC data
TMDS Data 2+
TMDS Data 1-
TMDS Data 1+
TMDS Data 1/3 shield
+5V
Hot Plug Detect
TMDS data 0-
TMDS data 0+
TMDS data 0/5 shield
TMDS clock+
TMDS clock-
GND
1
2
3
7
9
10
6
11
14
15
16
17
18
19
23
24
22
FG
TMDS clock shield
TMDS Data 2-
TMDS Data 2/4 shield
DDC clock
DDC data
TMDS Data 2+
TMDS Data 1-
TMDS Data 1+
TMDS Data 1/3 shield
+5V
Hot Plug Detect
TMDS data 0-
TMDS data 0+
TMDS data 0/5 shield
TMDS clock+
TMDS clock-
GND
X7403B
X9109
U91
To CPU1(VGA)
1 2 3 4
5OM-1732
4-1-29
CPU2 部 1
1206-001
ATX Power Supply
CPU2 Back Plane Board
(Upper)
Feeder Base (Rear)
Feeder Base (Front)
Connector Case
Connector Case
(Lower)
Not Mount
5OM-1732
4-1-30
1208-002

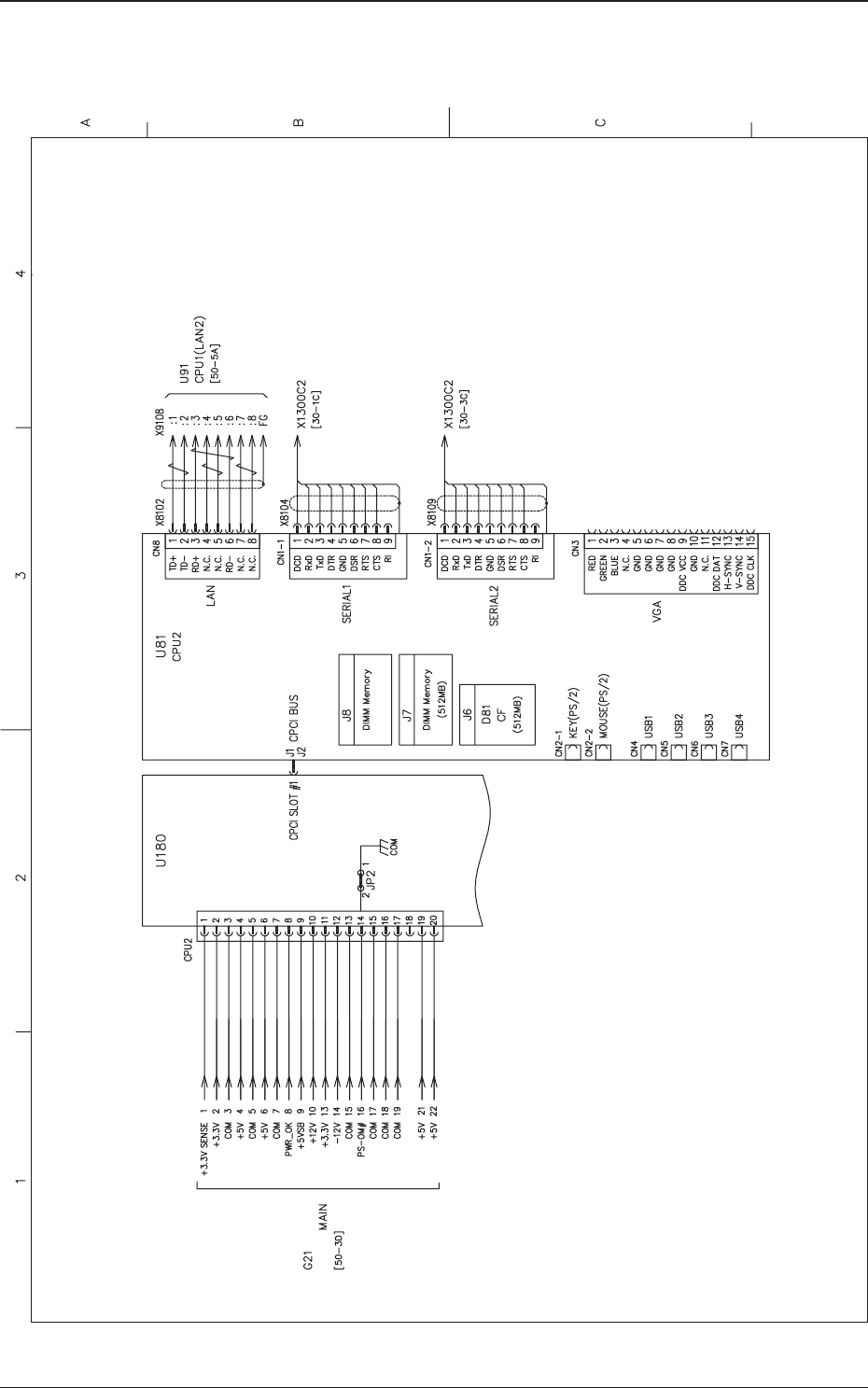

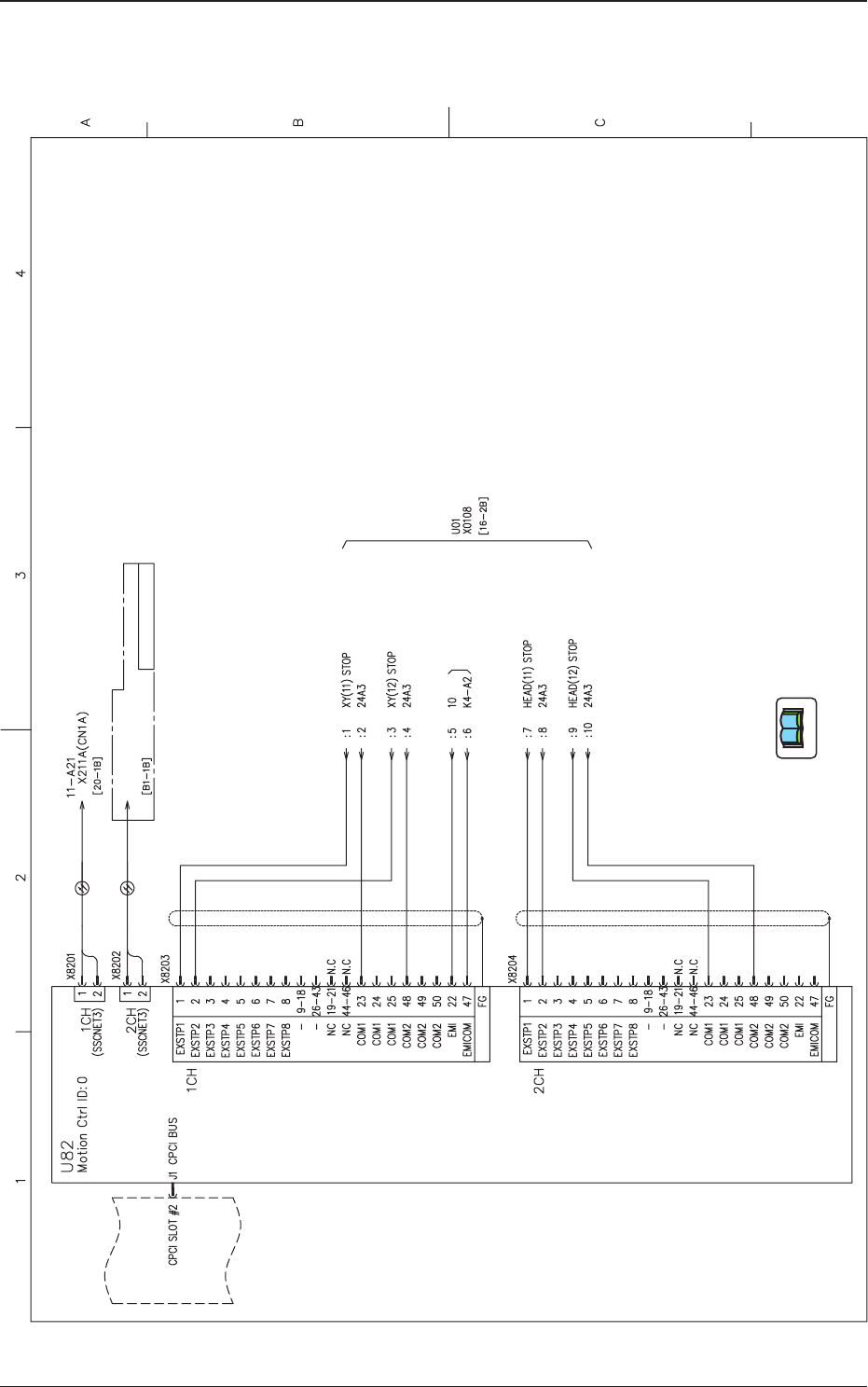

CPU2 部 2 ( 动态 1)
Back Plane Board
(DI Connector)
To
(DI Connector)
(Note)
(Note)
(Note)
(Note)
Head Unit Motor Driver
To SSCNET Connector (CN1A)
Safety Relay Support Output
Head 11
Note
Do not connect anything from pin #19 through pin #21 and pin #41 through pin #46 in the D1 connector.
