5OM-1732 4-1-49 机械电缆连接图 1208-002 On the Main Machine Side DC48V Power Earthing Earthing (Rear) P .C .B He igh t He ad IL Re ser ve He ad ILB P .C .B He igh t He ad IL Re ser ve On the Main Machine Side DC48V Power Earthi…
5OM-1732
4-1-48
1206-001

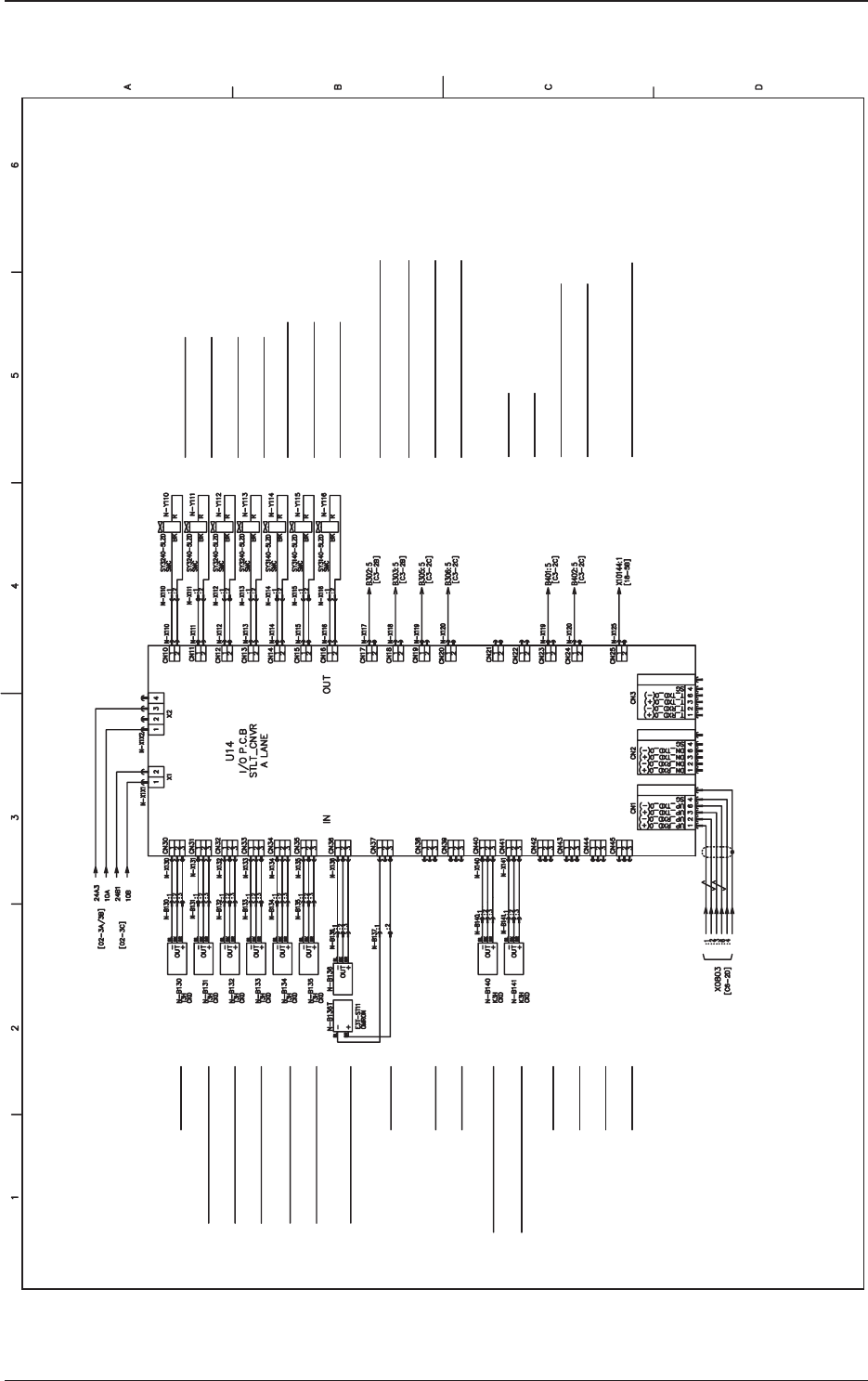

搬送 IO 线路板 U14 部
PCB Stopper 1 Lower Limit Detection
PCB Stopper 1 Upper Limit Detection
PCB Stopper 2 Lower Limit Detection
PCB Stopper 2 Upper Limit Detection
PCB Stopper 3 Lower Limit Detection
PCB Stopper 3 Upper Limit Detection
Movable Chute Back up Pin Sensor 1
S1 Fixed Z-Clamp Lower Limit Detection
S2 Fixed Z-Clamp Lower Limit Detection
Note
Note 1. The drain cable should be connected
to the connector case.
U08 (Transfer IO)
FG (Connector Case)
FG (Connector Case)
FG (Connector Case)
Note 1
PCB Stop Sensor Input Section 5 Remote
PCB Stop Sensor Input Section 4 Remote
PCB Stop Sensor Input Section 3 Remote
PCB Stop Sensor Input Section 1 Remote
PCB Stop Sensor Input Section 1 Remote
PCB Stop Sensor Input Section 6 Remote
S1 Z-Clamp Cylinder Valve 1
(A : Down)
S1 Z-Clamp Cylinder Valve 2
(B : Up)
S2 Z-Clamp Cylinder Valve 2
(B : Up)
PCB Stopper 1 UP/DOWN Valve
PCB Stopper 2 UP/DOWN Valve
PCB Stopper 3 UP/DOWN Valve
PCB Stop Sensor Placement Section 1 Remote
PCB Stop Sensor Placement Section 2 Remote
PCB Stop Sensor Placement Section 3 Remote
PCB Stop Sensor Placement Section 4 Remote
PCB Stop Sensor Input Section 5 Remote
PCB Stop Sensor Input Section 6 Remote
Backup Pin Conveyor Emergency Stop (UC18)
S2 Z-Clamp Cylinder Valve 1
(A : Down)
5OM-1732
4-1-49
机械电缆连接图
1208-002
On the Main Machine Side
DC48V Power
Earthing
Earthing
(Rear)
P.C.B Height
Head IL
Reserve
Head ILB
P.C.B Height
Head IL
Reserve
On the Main Machine Side
DC48V Power
Earthing
Earthing
(Front)
Head ILB
24A6
24A6
Case
5OM-1732
4-1-50
1208-002
伺服马达部
Main Circuit Power
Control Circuit Power
(Rear)
(Front)
(Rear)
(Front)
(Rear)
(Front)
24A5
