5OM-1732 4-1-45 1208-002 宽度可变驱动 (4460) 部 (a) Connection Destination is different in lane A from that in Lane B. (b) Connection Destination in the case of Buffer OP not mounted (c) Connection Destination in the case of Bu…
5OM-1732
4-1-44
1208-002
双重搬送模块图
Conveyor Emergency
Stop A Lane
Conveyor Emergency
Stop B Lane
Width Variable Driver Transfer Driver Width Variable Driver Transfer Driver
Movable Chute
Origin Sensor
B Lane
Feeder Base
Load Sensor Load Sensor
A Lane
Deceleration/Stop
Sensor 1,2
PCB Detection
Sensor 1
Deceleration/Stop
Sensor 3,4
PCB Detection
Sensor 2
Movable Chute
Origin Sensor
Deceleration/Stop
Sensor 1,2
PCB Detection
Sensor 1
Deceleration/Stop
Sensor 3,4
PCB Detection
Sensor 2
B Lane
Input 16 Points
Transfer Unit Sensor Load
Output 16 Points
A Lane
Input 16 Points Output 16 Points
5OM-1732
4-1-45
1208-002
宽度可变驱动 (4460) 部
(a) Connection Destination is different in lane A from that in Lane B.
(b) Connection Destination in the case of Buffer OP not mounted
(c) Connection Destination in the case of Buffer OP mounted
(axis 1)
axis 1
Intensive I/O
Conveyor
Emergency Stop
Note 1
Note 2
Note 3
Main Power
Control Power
(axis 2)
Width Variable
Origin Sensor 1
A Lane
B Lane
A Lane
B Lane
24A3
24A6
10
10
24A6
24A6
(24A6)
24A6
Note
5OM-1732
4-1-461208-002

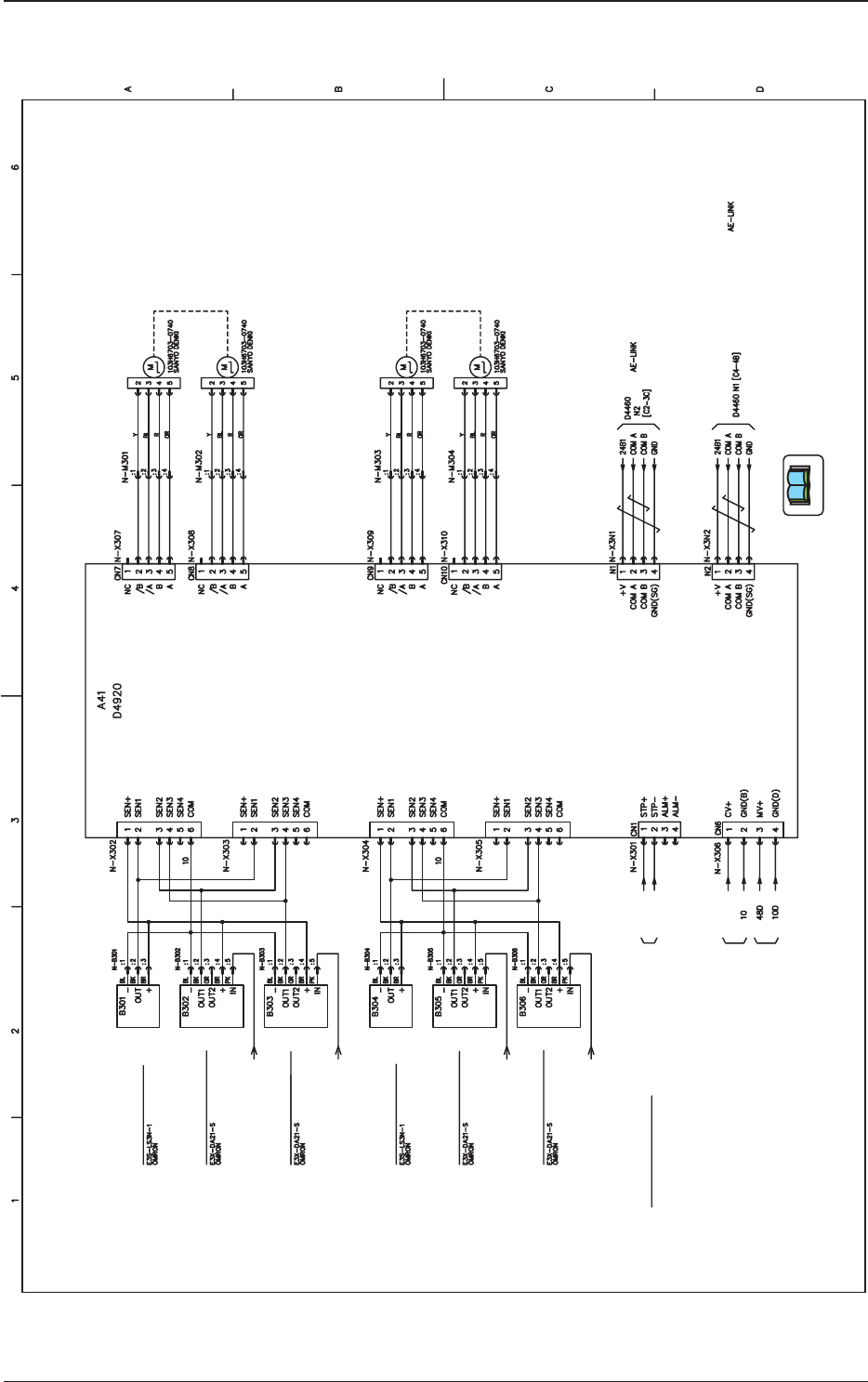

搬送驱动 (D4920) 部
PCB Detection Sensor 1
PCB Detection Sensor 2
Deceleration/Stop Sensor 1
Placement Section
Deceleration/Stop Sensor 2
Placement Section
Deceleration/Stop Sensor 3
Placement Section
Deceleration/Stop Sensor 4
Placement Section
Note a
B Lane : U08 Transfer I/O X0817 [C6-4B]
A Lane : U14 Transfer I/O X1417 [C7-4B]
Note a
B Lane : U08 Transfer I/O X0818 [C6-4B]
A Lane : U14 Transfer I/O X1418 [C7-4B]
Note a
B Lane : U08 Transfer I/O X0819 [C6-4B]
A Lane : U14 Transfer I/O X1419 [C7-4B]
Note a
B Lane : U08 Transfer I/O X0820 [C6-4B]
A Lane : U14 Transfer I/O X1420 [C7-4B]
A Lane : X10153 [18-5B]
B Lane : X10154 [18-5C]
[02-3C] DC24V(24A3)
[02-3C] DC48V(48D)
Control Power
Main Power
Conveyor Emergency Stop
U01 Intensive I/O
CN2(Axis 1)
CN3(Axis 2)
CN4(Axis 3)
CN5(Axis 4)
(Sensor Input)
Axis 1
Axis 2
Axis 3
Axis 4
[There is no placement destination. ]
Note b
Note c
24A3 2
Do 1
24A6
24A6
Note
(a) Connection Destination is different in lane A from that in Lane B.
(b) Not connected in the case of Buffer OP not mounted
(c) Connection Destination in the case of Backup OP mounted
24A6
