5OM-1732 4-1-51 1208-002 安装头 IO 线路板 U02 部 Nozzle Selection Position Detection Nozzle Up/Down Interlock Inside of Center Shaft Bad Mark Detection External Tuning Control Output Stability Output Pink Blue Black Orange Brow…
5OM-1732
4-1-50
1208-002
伺服马达部
Main Circuit Power
Control Circuit Power
(Rear)
(Front)
(Rear)
(Front)
(Rear)
(Front)
24A5
5OM-1732
4-1-51
1208-002
安装头 IO 线路板 U02 部
Nozzle Selection Position Detection
Nozzle Up/Down Interlock
Inside of Center Shaft
Bad Mark Detection
External Tuning
Control Output
Stability Output
Pink
Blue
Black
Orange
Brown
Pink
Blue
Purple
Black
White
Brown
Light Emitting Stop Input
Zero Shift Input
P.C.B Height Detection
User Input 1
User Input 2
Air Blow
24A6
24A5
5OM-1732
4-1-52
1206-001

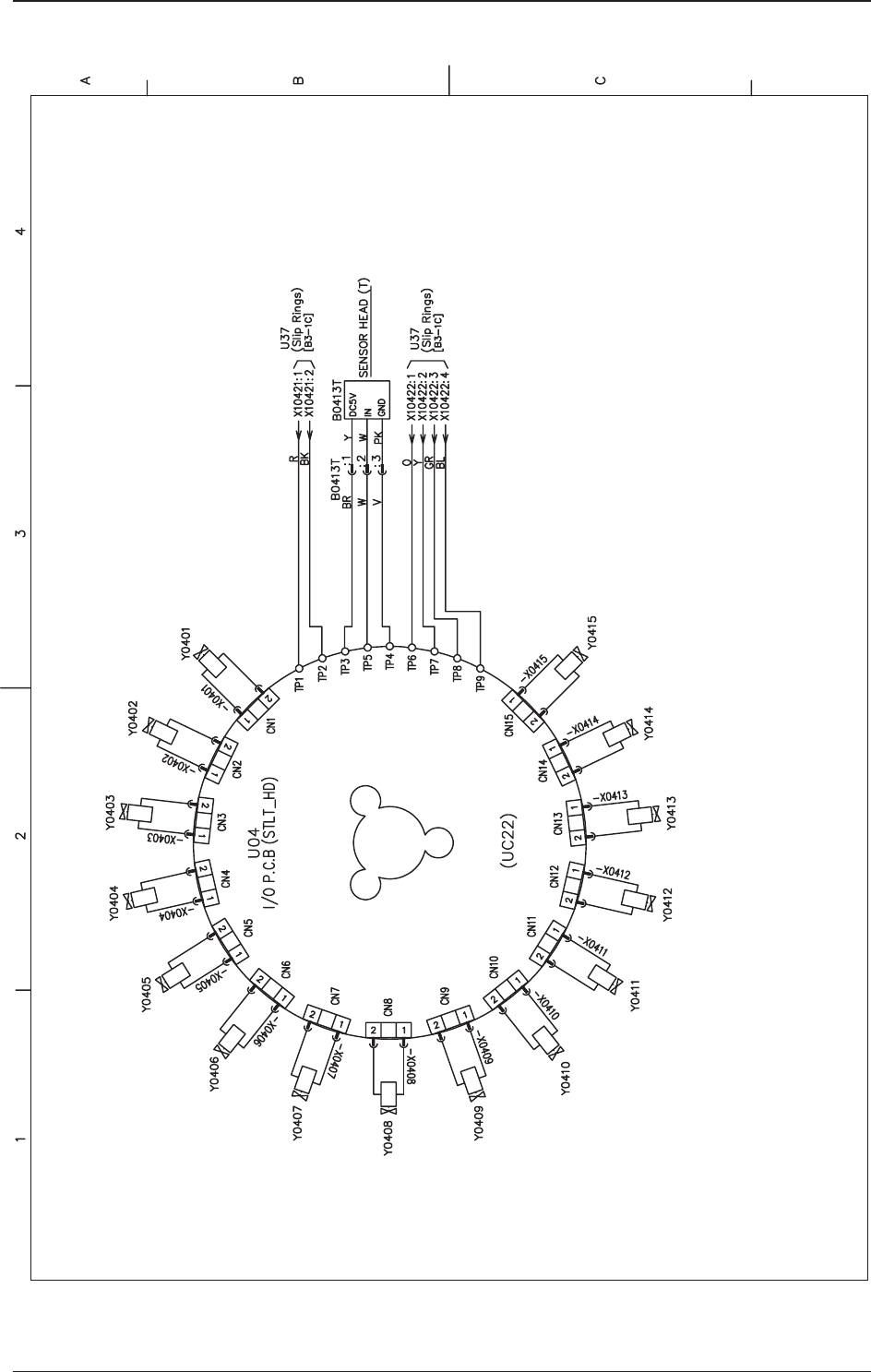

阀门 IO 线路板 U04 部
(Head)
*Layer : The DOC layer
shall not be described in
the instruction manual.
