5OM-1732 3-1-16 元件配置图 1208-001 Outside Inside F201-203 Q205 K29 K28 K10 Q221A Q221B Q206 侧面面板前 内侧 Symbol Block Parts Name Model Part No. Qt Main Applications Q205 BA CIRCUIT -PROTECTOR BM3RSB-004 1 V acuum Pump Q206 BA B…

100%1 / 142
5OM-1732
3-1-15
元件配置图
1208-001
Side Panel Front
Side Panel Rear
Side Panel Center
侧面 A
5OM-1732
3-1-16
元件配置图
1208-001

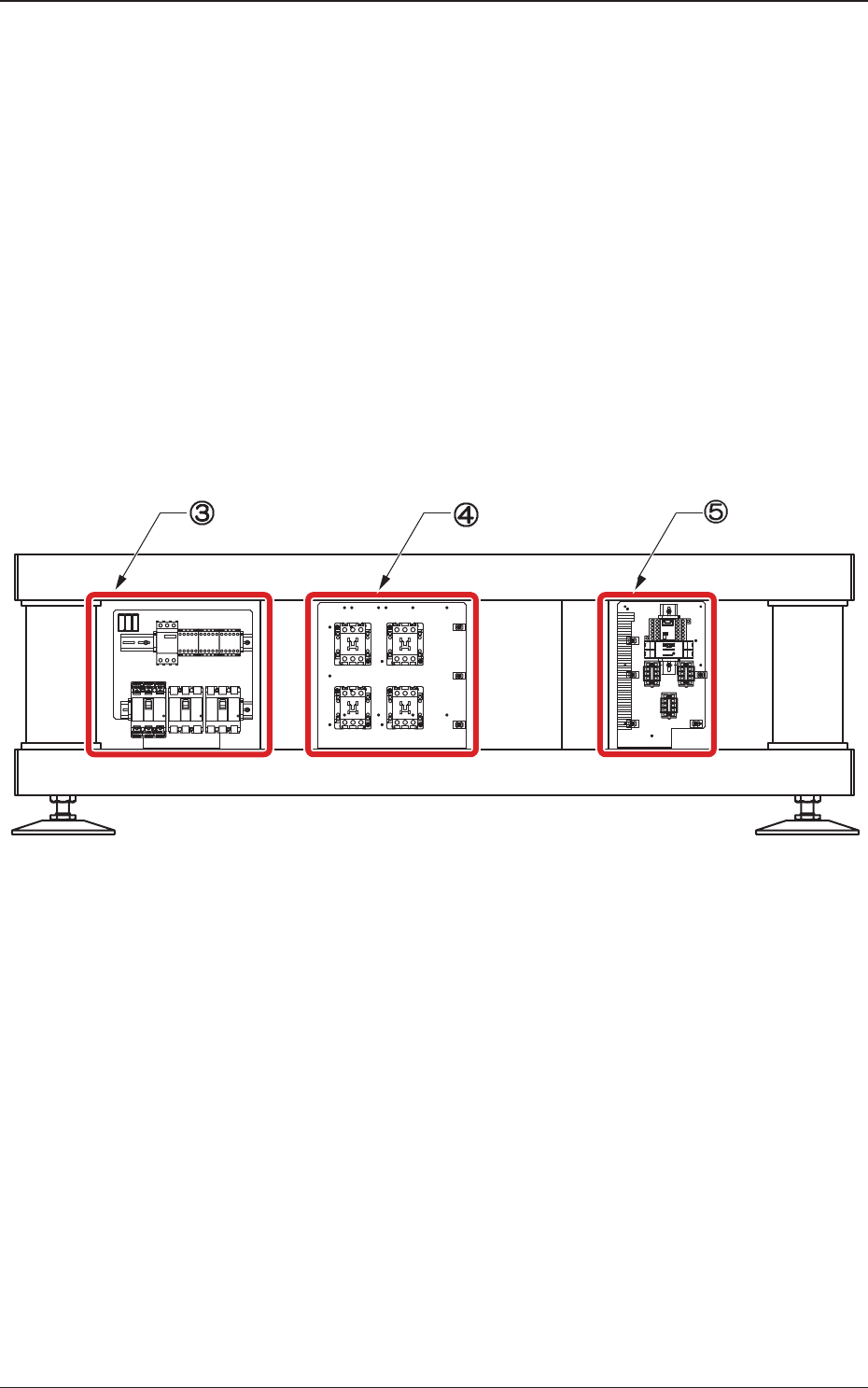

Outside
Inside
F201-203
Q205
K29 K28 K10
Q221A Q221B
Q206
侧面面板前 内侧

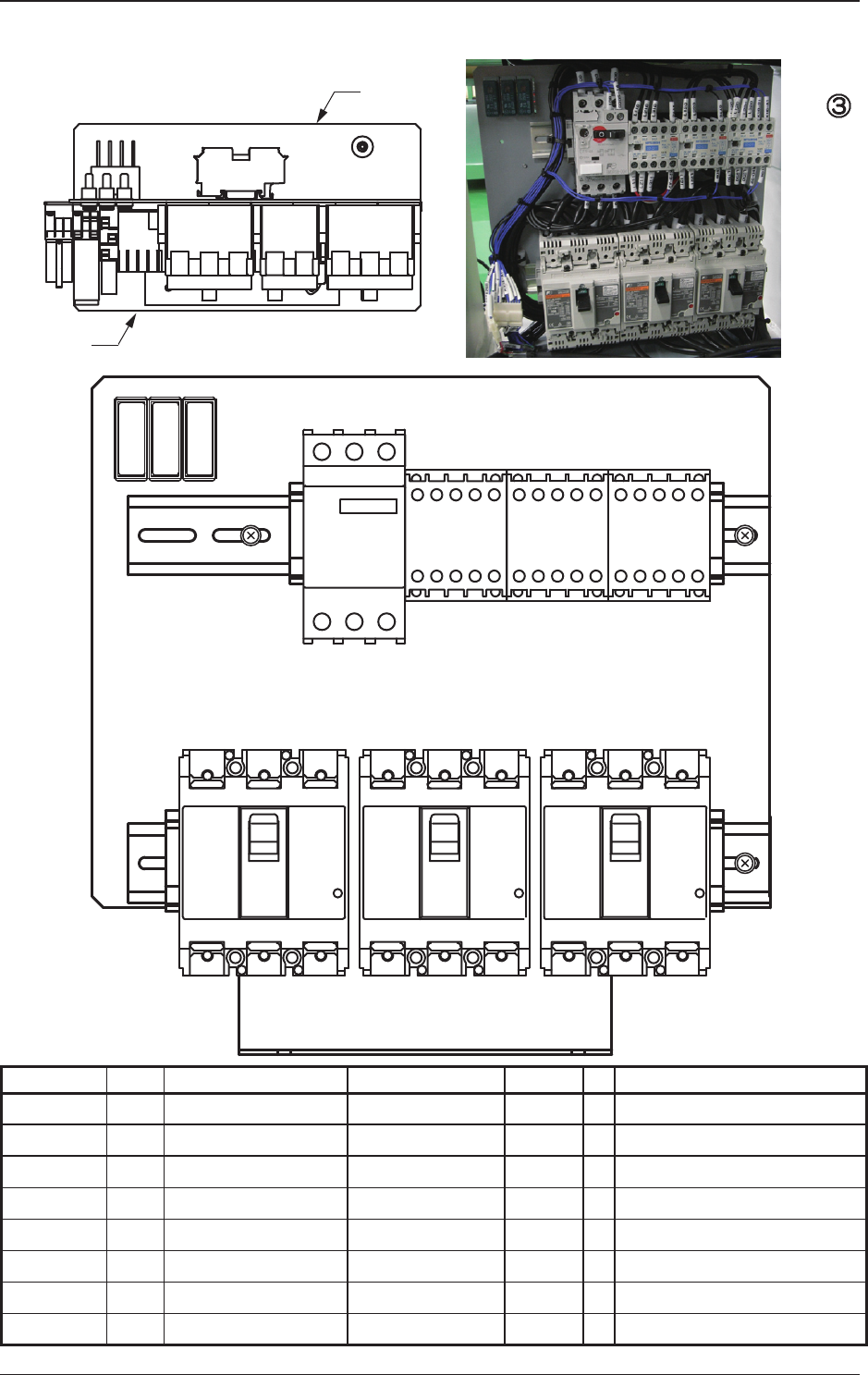

Symbol Block Parts Name Model Part No. Qt Main Applications
Q205 BA
CIRCUIT-PROTECTOR
BM3RSB-004 1 Vacuum Pump
Q206 BA BREAKER
BW50RAGU-3P030
1 CPU, Control Power, Power
Q221F BA BREAKER
BW50RAGU-3P050
1 STAGE1 Servo
Q221R BA BREAKER
BW50RAGU-3P050
1 STAGE2 Servo
K29 BA EM-CONTACTOR SD-Q11D 1 Vacuum Pump Power Control
K28 BA EM-CONTACTOR SD-Q11D 1 CPU Power-up
K10 BA EM-CONTACTOR SD-Q11D 1
Head, Conveyor, Main Power-up
F201 to 203
BA FUSE_SPECIAL GP50 3 Fuse for Lightning Surge
5OM-1732
3-1-17
元件配置图
1208-001
Outside
Inside
F201-203
F200
TB:P1
侧面面板前 外侧

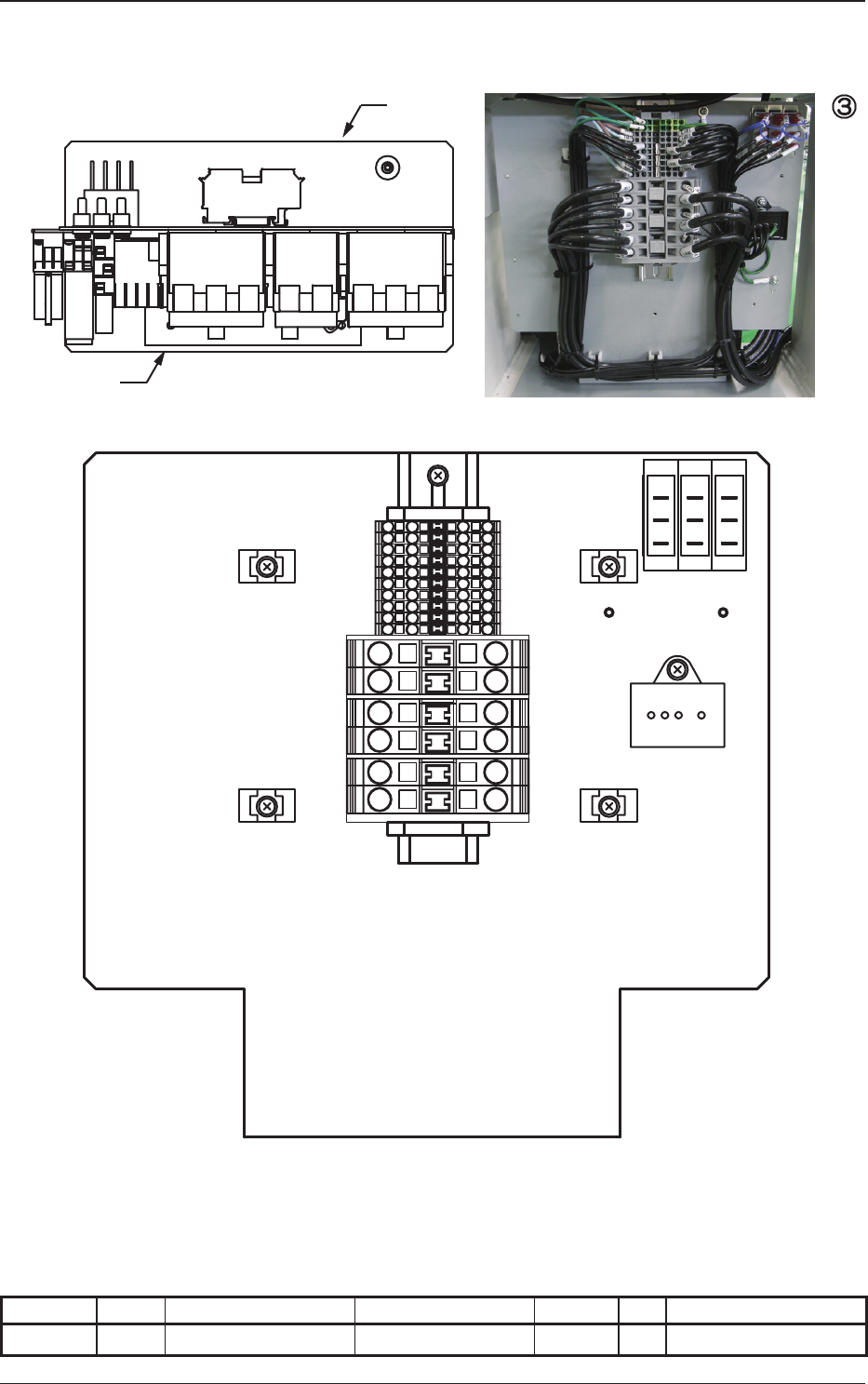

Symbol Block Parts Name Model Part No. Qt Main Applications
F200 BA SEMICO-VARISTOR #R.A.V-781BXZ-4 1 Lighting Surge
