5OM-1732 4-1-31 1208-002 CPU2 部 3 ( 动态 2) Back Plane Board (DI Connector) T o (DI Connector) (Note) (Note) (Note) (Note) Head Unit Motor Driver T o SSCNET Connector (CN1A) Safety Relay Support Output Head 21 Note Do not …

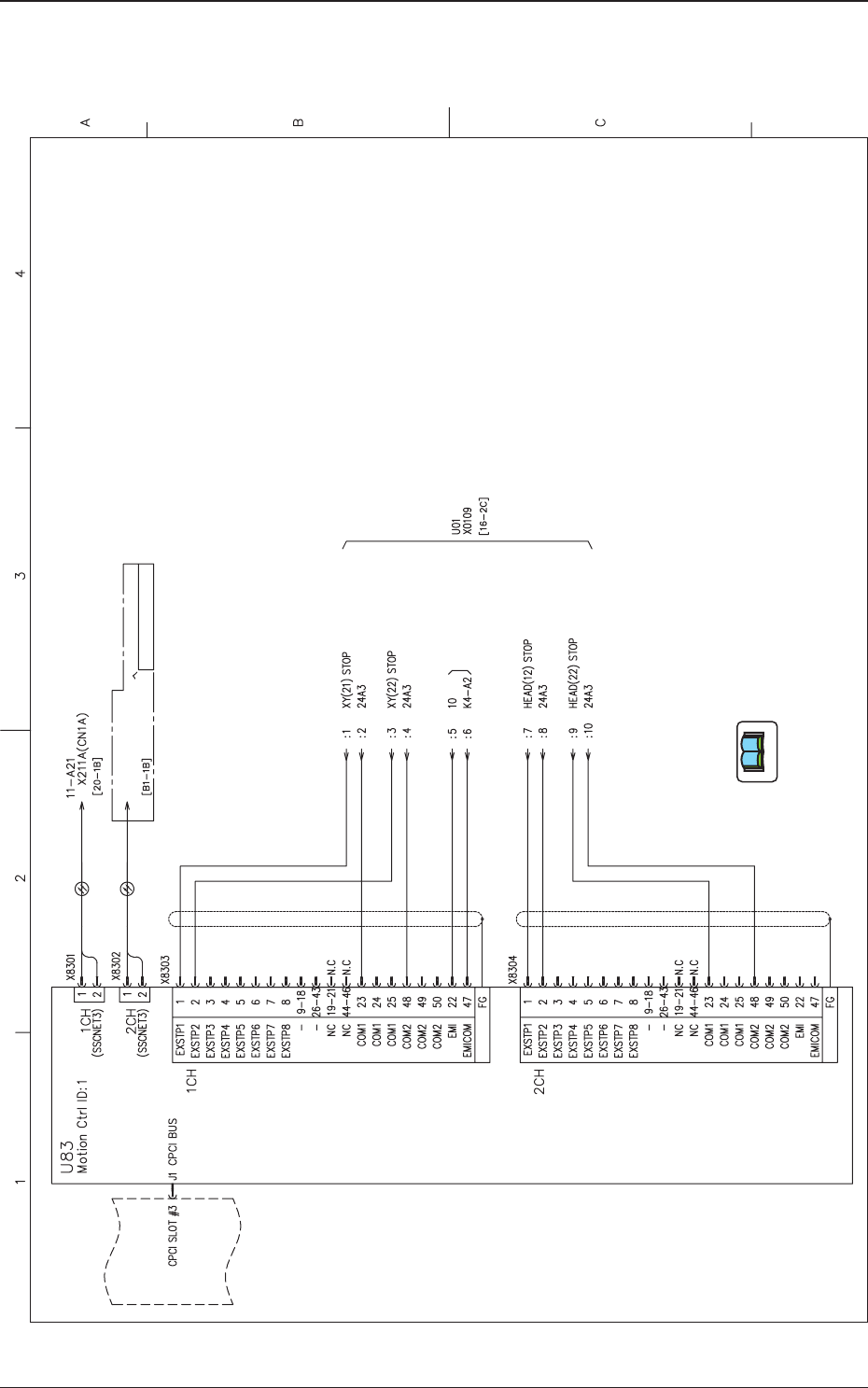

5OM-1732
4-1-30
1208-002
CPU2 部 2 ( 动态 1)
Back Plane Board
(DI Connector)
To
(DI Connector)
(Note)
(Note)
(Note)
(Note)
Head Unit Motor Driver
To SSCNET Connector (CN1A)
Safety Relay Support Output
Head 11
Note
Do not connect anything from pin #19 through pin #21 and pin #41 through pin #46 in the D1 connector.
5OM-1732
4-1-31
1208-002
CPU2 部 3 ( 动态 2)
Back Plane Board
(DI Connector)
To
(DI Connector)
(Note)
(Note)
(Note)
(Note)
Head Unit Motor Driver
To SSCNET Connector (CN1A)
Safety Relay Support Output
Head 21
Note
Do not connect anything from pin #19 through pin #21 and pin #41 through pin #46 in the D1 connector.
5OM-1732
4-1-32
1208-002
CPU2 部 4 (I/O)
Back Plane Board
High-Speed IO
Case
Case
Case
Connector Case
Connector Case
High-Speed IO DN
(Intensive I/O)
High-Speed IO T
Transfer Unit Pulse Driver (4 axis)
B Lane
Transfer Unit Pulse Driver (4 axis)
A Lane
(Transfer I/O)
Transfer Unit
Transfer Unit
