5OM-1732 3-1-7 元件配置图 1208-002 A21_21 A22_21 A21_22 A22_22 伺服放大器前 Symbol Block Parts Name Model Part No. Qt Main Applications A21-21 BA UNIT -DRIVER #MR-J3-60B-RJ1 15 1 ST AGE 2 X1 axis driver A22-21 BA UNIT -DRIVER #MR-J…
5OM-1732
3-1-6
元件配置图
1208-002
Lighting Control PCB
Servo Amplitier (Front)
CN1
CN8
CN7
CN3
CN2
CN5
CN6
CON8
CON7
CON6
CON5
CON4
CON3
CON2
CON1
Lighting Control PCB UC19
照明控制线路板 UC19
Symbol Block Parts Name Model Part No. Qt Main Applications
U95 BA P.C.B Mount UC19 1 Lighting Control PCB

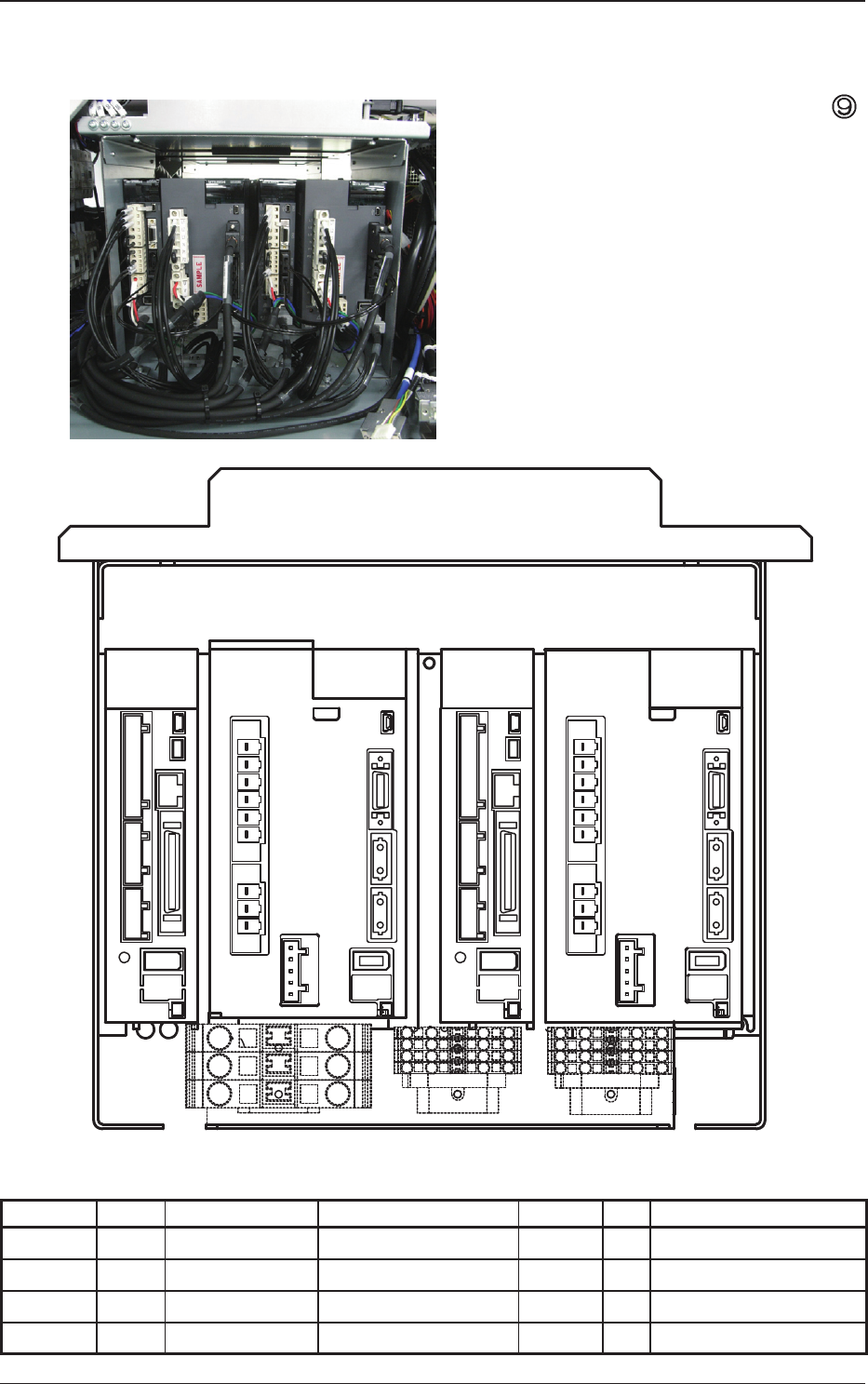

5OM-1732
3-1-7
元件配置图
1208-002
A21_21 A22_21 A21_22 A22_22
伺服放大器前
Symbol Block Parts Name Model Part No. Qt Main Applications
A21-21 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X1 axis driver
A22-21 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y1 axis driver
A21-22 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X2 axis driver
A22-22 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y2 axis driver

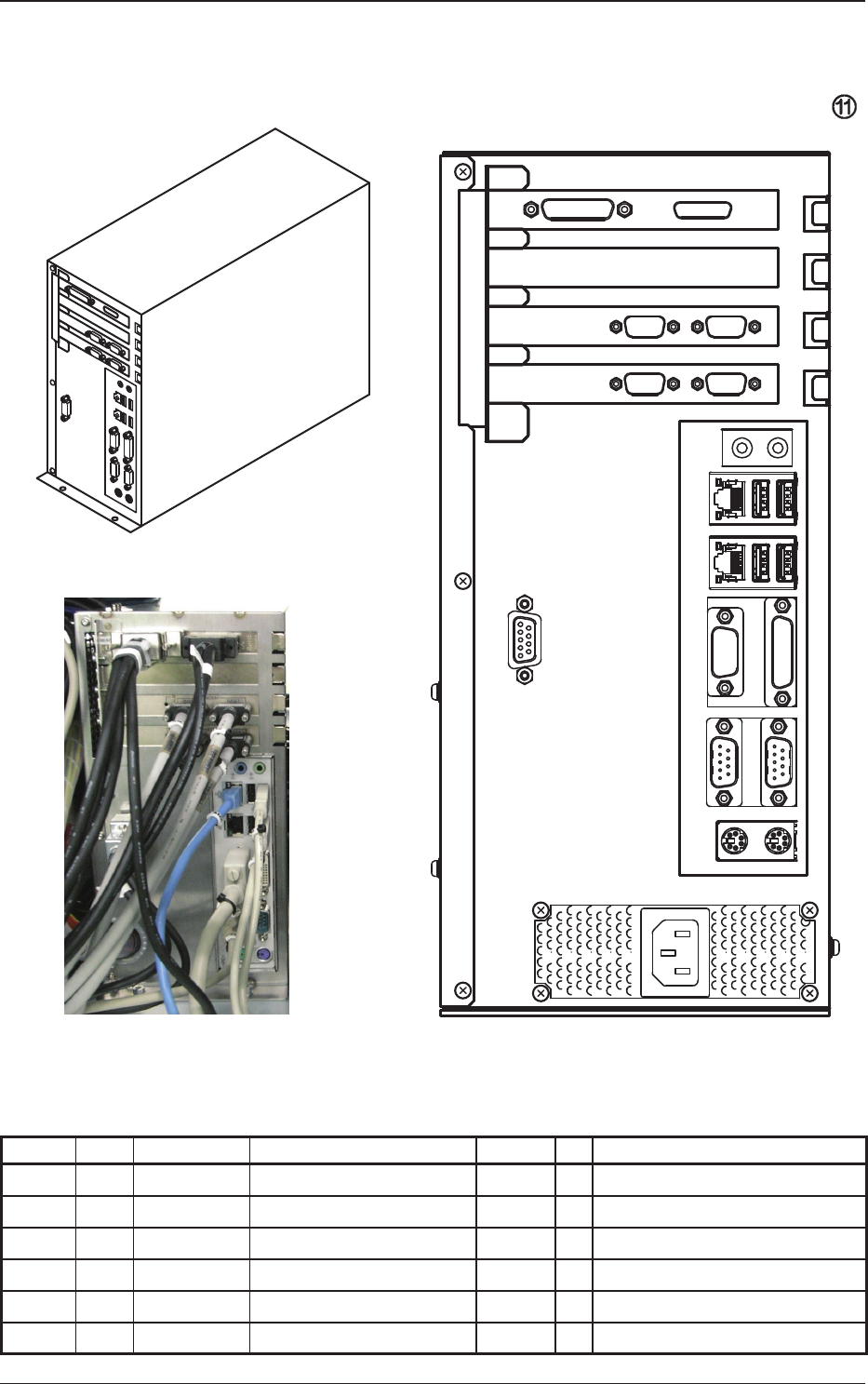

5OM-1732
3-1-8
元件配置图
1208-002
U92
U94
U93
91U
X9201
X9202
X9401 X9402
X9301 X9302
X9304
X9102 X9104 X9107 X9108
X9103 X9105 X9106
CPU1
Symbol Block Parts Name Model Part No. Qt Main Applications
D89 BA SSD AP-SAFD255AA008GS-T 1
BA CORD SAT-3103BL 1 SSD Communication Cable
BA CORD WA-185 1 SSD Power Cable
U91 BA P.C.B Mount FM17M-L2S-C18-2GME 1 CPU Board
U92 BA P.C.B Mount ASP-8514Q-SMD4 1 Recognition Board (COGNEX)
U93,94 BA P.C.B Mount PLE-8603-00 2 Recognition Board (HST Vision)
