5OM-1732 3-1-8 元件配置图 1208-002 U92 U94 U93 91 U X9201 X9202 X9401 X9402 X9301 X9302 X9304 X9102 X9104 X9107 X9108 X9103 X9105 X9106 CPU1 Symbol Block Parts Name Model Part No. Qt Main Applications D89 BA SSD AP-SAFD255AA0…
5OM-1732
3-1-7
元件配置图
1208-002
A21_21 A22_21 A21_22 A22_22
伺服放大器前
Symbol Block Parts Name Model Part No. Qt Main Applications
A21-21 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X1 axis driver
A22-21 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y1 axis driver
A21-22 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X2 axis driver
A22-22 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y2 axis driver

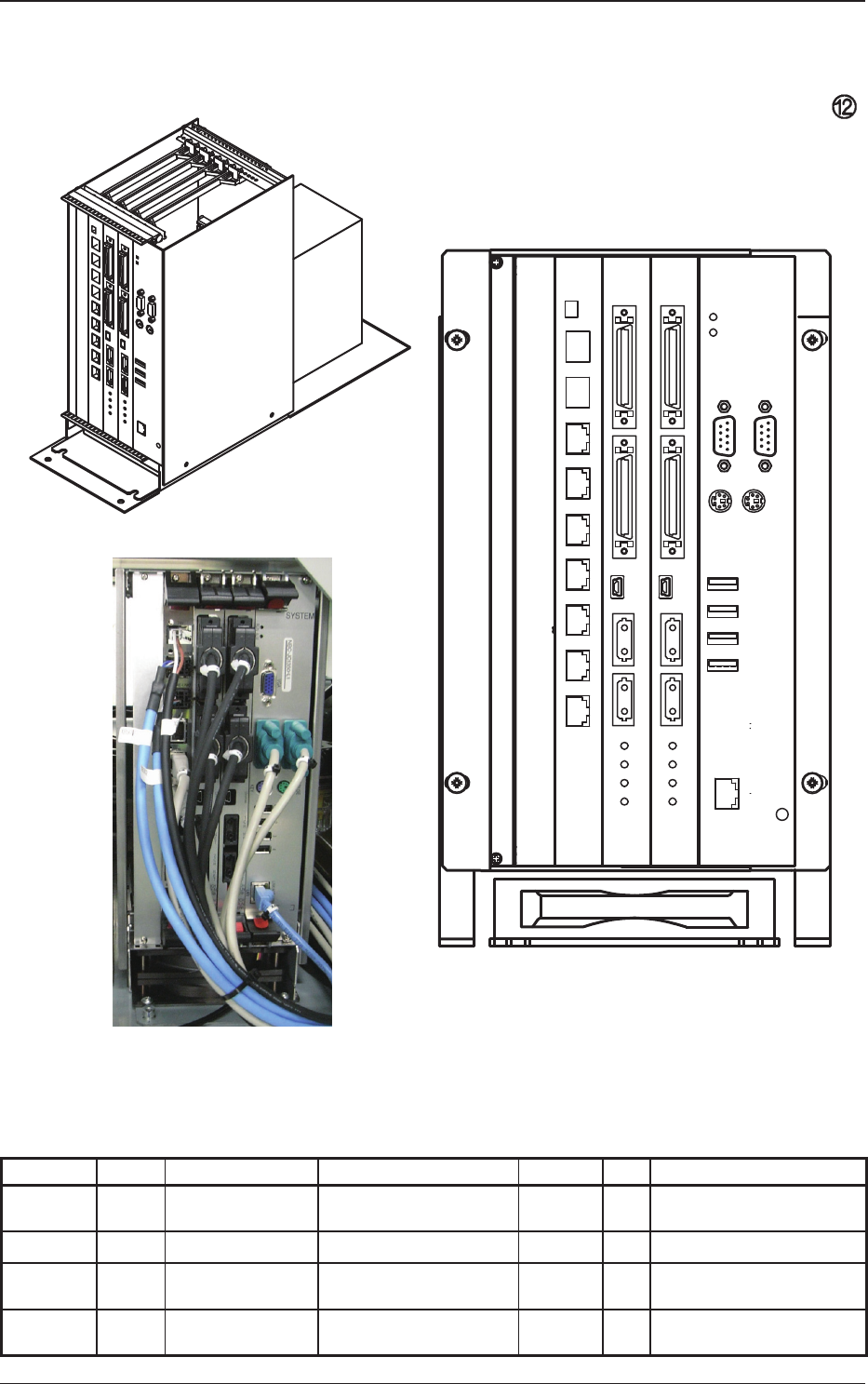

5OM-1732
3-1-8
元件配置图
1208-002
U92
U94
U93
91U
X9201
X9202
X9401 X9402
X9301 X9302
X9304
X9102 X9104 X9107 X9108
X9103 X9105 X9106
CPU1
Symbol Block Parts Name Model Part No. Qt Main Applications
D89 BA SSD AP-SAFD255AA008GS-T 1
BA CORD SAT-3103BL 1 SSD Communication Cable
BA CORD WA-185 1 SSD Power Cable
U91 BA P.C.B Mount FM17M-L2S-C18-2GME 1 CPU Board
U92 BA P.C.B Mount ASP-8514Q-SMD4 1 Recognition Board (COGNEX)
U93,94 BA P.C.B Mount PLE-8603-00 2 Recognition Board (HST Vision)
5OM-1732
3-1-9
元件配置图
U85 U83 U82 U81
Ｍ177
X8505 X8504 X8503 X8502 X8501 X85X01
X8302 X8301 X8304 X8303
X8202 X8201 X8204 X8203
X8102
X8104
X8109
1208-002
CPU2
Symbol Block Parts Name Model Part No. Qt Main Applications
D81 BA CF TS512MCFX834014 1
Flash Memory inside of
U81
U81 BA P.C.B Mount NBC-JC350-L1 1 CPU2
U82,83 BA P.C.B Mount MR-MC121-S12 2
Motion Control
(SSCNET)
U85 BA P.C.B Mount
UC16 High-Speed IO
Host
1
High-Speed I/O and
Pulse Motor Control
